530AW00262AÂ DANFOSSÂ |Â HMF105CDMR000A10000AA (
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 530AW00262A

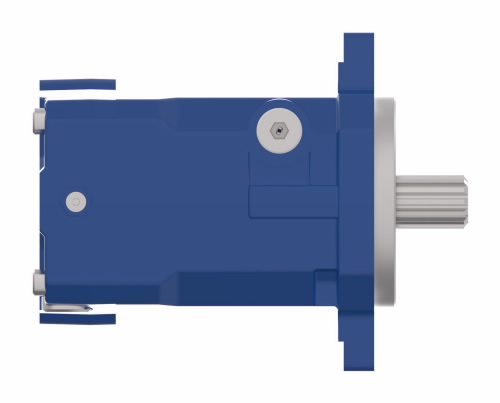

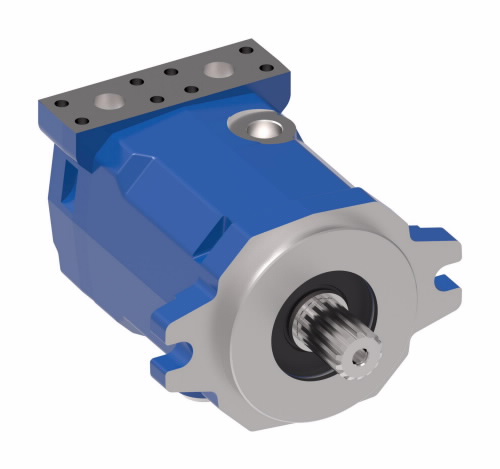

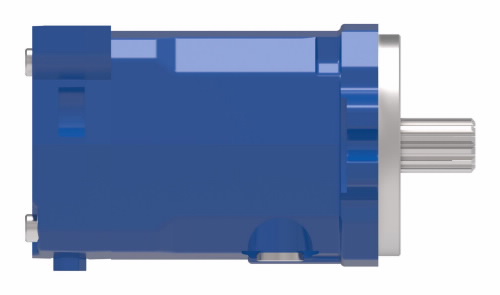

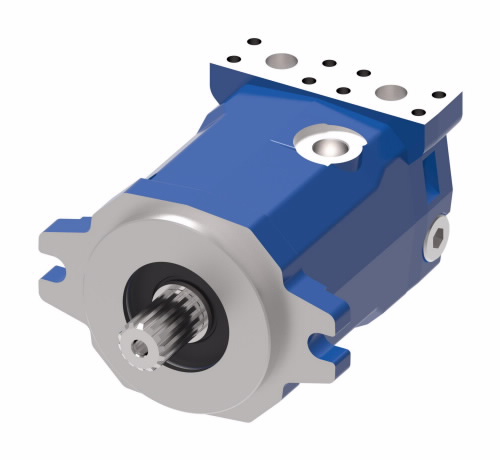

EATON DURAFORCE HMF SERIES FIXED MOTOR
Displacements: 28cc to 280cc (1.71 to 17.1 cu in)|Operating pressure: 420 bar (6100 psi)|Highly configurable
Displacements: 28cc to 280cc (1.71 to 17.1 cu in)|Operating pressure: 420 bar (6100 psi)|Highly configurable
- Application:Â Transit Mixer, Road Roller, Motor Grader, Dozer, Crane, Sweeper, Lift Truck, Tractor, Windrower, Planter, Oil & Gas, MarineDesign code11:Â 1Displacement:Â 105 cubic centimetre per revolutionEccn:Â EAR99Icc2:Â HS HP Fixed Axial-Piston MotorsIdentification:Â EatonMain ports:Â Metric ThreadMaximum speed:Â 3500 revolutions per minuteModel Code:Â HMF105CDMR000A10000AAMounting flange:Â SAE 2 Bolt COutput shaft:Â 14 Tooth 12/24 DpPaint:Â Anti Rust Conservation OilProduct height:Â 8.31Product height uom:Â inchProduct length:Â 12.21Product length uom:Â inchProduct material:Â Cast IronProduct trade name:Â HMF seriesProduct weight:Â 160.3Product weight uom:Â poundProduct width:Â 7.88Product width uom:Â inchPurge relief valve:Â StandardPurge shuttle valve:Â Standard Shuttle ValveSpecial features17:Â NoneSub brand:Â DuraForceTorque:Â 418 newton metreWorking Pressure:Â 420 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
