Images are representative only. Please verify with our technical experts as actual product may differ.
531AW00529AÂ DANFOSSÂ |Â HMV105
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 531AW00529A

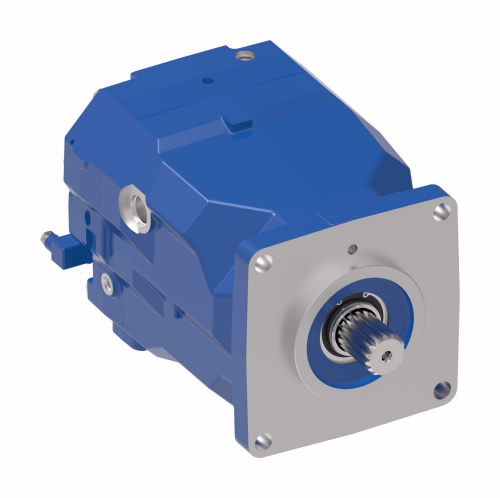

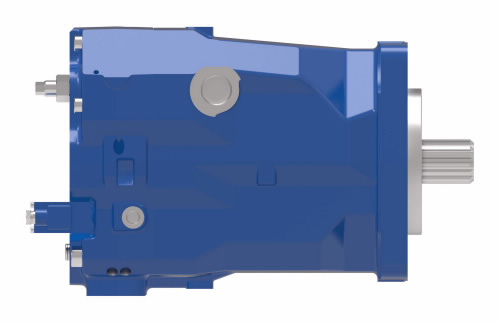

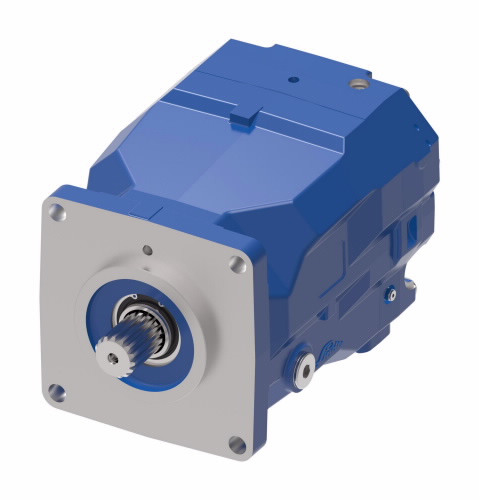

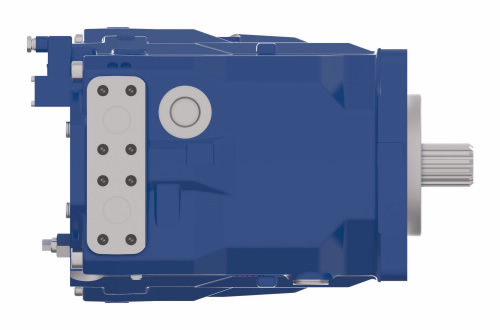

EATON DURAFORCE HMV SERIES VARIABLE MOTOR
Displacements: 55cc to 280cc (3.57 to 17.1 cu in)|Operating pressure: 420 bar (6100 psi)|Through-drive option for propel applications
Displacements: 55cc to 280cc (3.57 to 17.1 cu in)|Operating pressure: 420 bar (6100 psi)|Through-drive option for propel applications
- Control:Â No Control - Fixed DisplacementDesign code11:Â ADisplacement:Â 105 cubic centimetre per revolutionEccn:Â EAR99Icc2:Â HS HP Var Axial-Piston MotorsIdentification:Â EatonMain ports:Â Metric ThreadMaximum speed:Â 4100 revolutions per minuteMinimum displacement:Â 63 cubic centimetre per revolutionModel Code:Â HMV105ACM10A10EF1063000000000AAMounting flange:Â SAE J744Output shaft:Â 14 Tooth 12/24 DpPaint:Â Anti Rust Conservation OilProduct height:Â 7.92Product height uom:Â inchProduct length:Â 11.93Product length uom:Â inchProduct trade name:Â HMV SeriesProduct weight:Â 72.75Product weight uom:Â poundProduct width:Â 7.56Product width uom:Â inchPurge relief valve:Â Flow ControlledSpecial features17:Â NoneSub brand:Â DuraForceSystem working temperature:Â 194 degree FahrenheitTorque:Â 418 newton metreWorking Pressure:Â 420 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
