531AW00567AÂ DANFOSSÂ |Â HMV165
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 531AW00567A

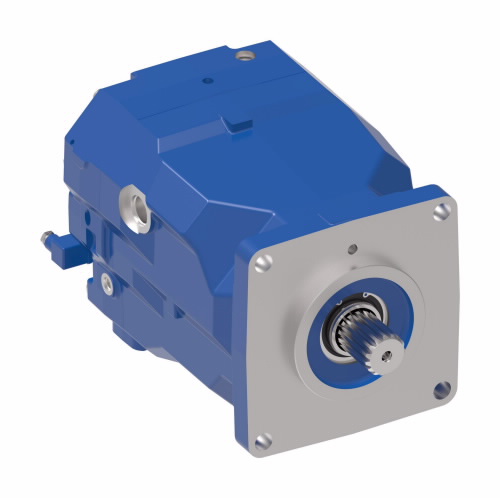

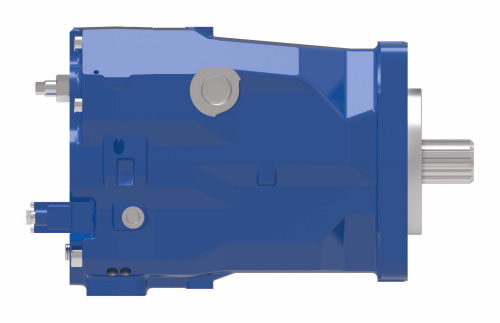

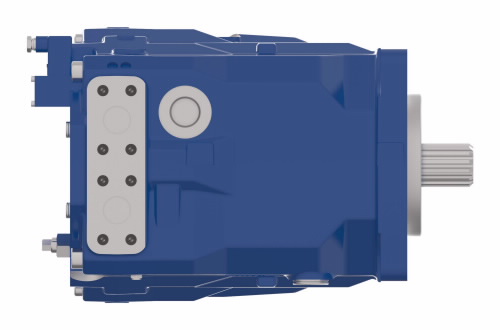

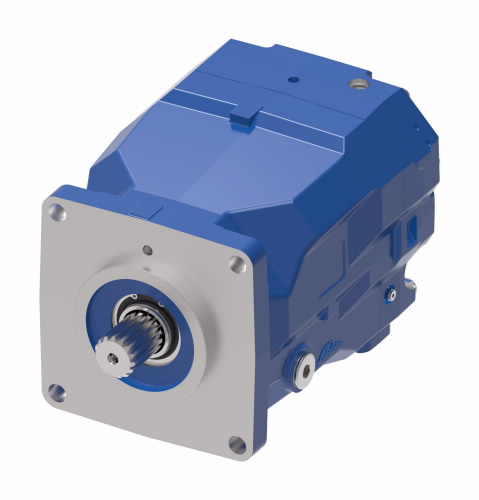

EATON DURAFORCE HMV SERIES VARIABLE MOTOR
Displacements: 55cc to 280cc (3.57 to 17.1 cu in)|Operating pressure: 420 bar (6100 psi)|Through-drive option for propel applications
Displacements: 55cc to 280cc (3.57 to 17.1 cu in)|Operating pressure: 420 bar (6100 psi)|Through-drive option for propel applications
- Control:Â No Control - Fixed DisplacementDesign code11:Â ADisplacement:Â 165 cubic centimetre per revolutionEccn:Â EAR99Icc2:Â HS HP Var Axial-Piston MotorsIdentification:Â EatonMain ports:Â Metric ThreadMaximum speed:Â 4810 revolutions per minuteMinimum displacement:Â 100 cubic centimetre per revolutionModel Code:Â HMV165ADM10C0FEG310000000000AAAMounting flange:Â SAE J744Output shaft:Â 13 Tooth 8/16 DpPaint:Â Primer BlueProduct height:Â 9.93Product height uom:Â inchProduct length:Â 15.32Product length uom:Â inchProduct trade name:Â HMV SeriesProduct weight:Â 165.35Product weight uom:Â poundProduct width:Â 9.85Product width uom:Â inchPurge relief valve:Â NoneSpecial features17:Â NoneSub brand:Â DuraForceSystem working temperature:Â 194 degree FahrenheitTorque:Â 659 newton metreWorking Pressure:Â 420 bar
