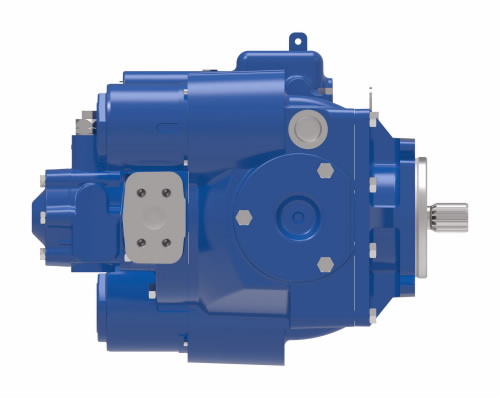

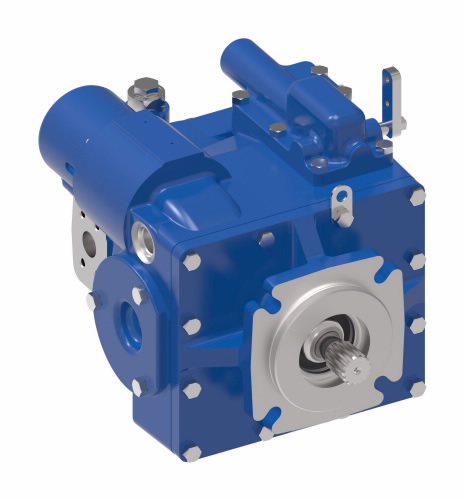

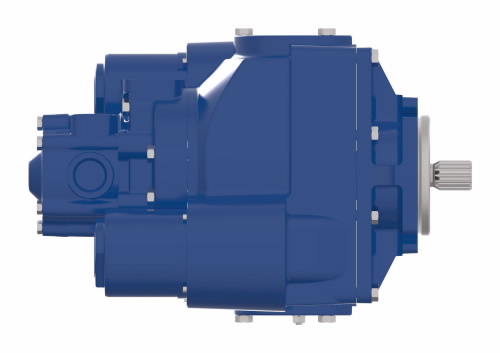

5423-759Â DANFOSSÂ |Â HYDRAULIC PUMP
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 5423-759
EATON SERIES 1 HEAVY DUTY CLOSED CIRCUIT PUMP SERVO CONTROL
Proven reliability in demanding applications|Multiple control options|Pro-FX ready
Proven reliability in demanding applications|Multiple control options|Pro-FX ready
- Application:Â Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applicationsAuxiliary mounting:Â SAE A Pad; No Shaft Seal (Wet)Charge pressure relief valve setting:Â 15 barCharge pump:Â Charge Pump With Short Element Integral Pressure Filter Mounted On -A- Port Side And External Discharge Port For 7/8-14 UNF-2B SAE O-Ring Fitting With Steel Hex PlugCharge pump displacement:Â 21 cubic centimetre per revolutionCharge pump special features:Â NoneConfiguration:Â SingleControl supply orifice diameter:Â 0.052 inchDesign code11:Â BDesign type:Â Series 1Displacement:Â 89.13 cubic centimetre per revolutionDocumentlink 2d drawings 4:Â http://wcm-prod-cs.etn.com/ecm/groups/public/@pub/@eaton/@hyd/documents/content/a-1362-018.pdfDocumentlink 2d drawings 5:Â http://wcm-prod-cs.etn.com/ecm/groups/public/@pub/@eaton/@hyd/documents/content/a-1363-001.pdfDrive shaft seal configuration:Â SingleEccn:Â EAR99Flow at rated speed and psi:Â 318 litre per minuteIcc2:Â Mobile - CC Piston PumpsIdentification:Â StandardInput shaft:Â [1.50] Diameter Tapered With [.375] X [1.00] Square KeyMain port orientation:Â RadialMain port s:Â [1.00] - Code 61 Per SAE J518Maximum input torque:Â 371 newton metreMinimum working pressure:Â 420 barModel Code:Â ACA542340R0AMMEJD000073C30D059A0BMounting flange location:Â Standard J744Paint:Â Finish BlackPower limiter valve setting port a:Â 414 barPower limiter valve setting port b:Â 414 barProduct height:Â 12.26Product height uom:Â inchProduct length:Â 17.96Product length uom:Â inchProduct trade name:Â Series 1Product weight:Â 85.30Product weight uom:Â poundProduct width:Â 11.96Product width uom:Â inchShaft rotation:Â RightSpecial features17:Â NoneSpecial pump assembly features:Â 1310 Series End Yoke Assembled To Drive ShaftSub brand:Â NoneType:Â Variable DisplacementValve plate:Â Standard, V-GrooveWorking pressure max:Â 480 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
