560AW01300AÂ DANFOSSÂ |Â HPV055R0S1DH0ECL7100GBAA
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 560AW01300A

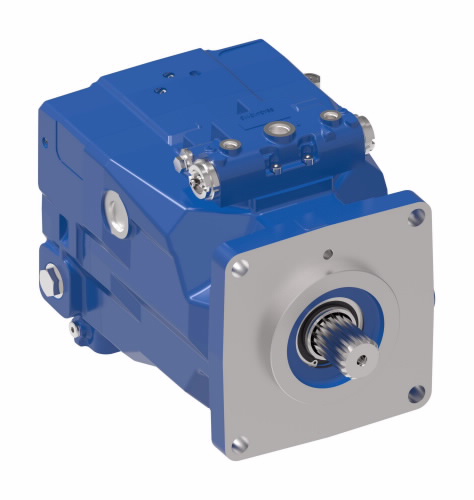

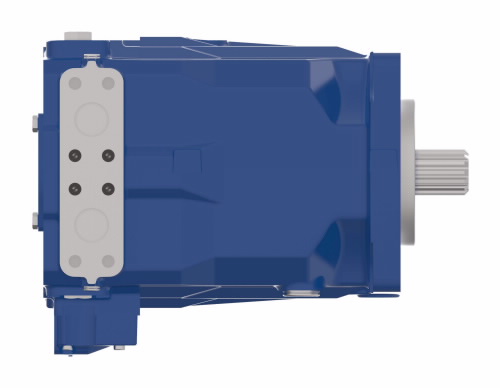

EATON DURAFORCE HPV SERIES CLOSED CIRCUIT PISTON PUMP
Compact packaging|Displacements: 55cc to 280cc (3.57 to 17.1 cu in)|Operating pressure: 420 bar (610 psi)
Compact packaging|Displacements: 55cc to 280cc (3.57 to 17.1 cu in)|Operating pressure: 420 bar (610 psi)
- Application:Â Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applicationsAuxiliary mounting:Â A-Pad, Dual 2 Bolt Mount, 9 Tooth 16/32 Pitch SplineCharge pressure relief valve setting:Â 17 barCharge pump:Â Gear Pump 16 ccConfiguration:Â SingleControl:Â Speed Related Hydraulic Mechanical (Caf) (165;210;280)Control solenoids:Â DEUTSCH / 12 VDesign code11:Â ADisplacement:Â 55 cubic centimetre per revolutionDrive shaft seal configuration:Â SingleEccn:Â EAR99Filter configuration:Â Filter Flange With Filter CartridgeGear pump supply:Â ExternalIcc2:Â Mobile - CC Piston PumpsIdentification:Â EatonInput mounting flange:Â SAE J744 standard (size 135: (*d))Input shaft:Â 14 Tooth 12/24 DpMain port orientation:Â RadialMaximum input power:Â 122 kilowattMaximum input torque:Â 218 newton metreMinimum working pressure:Â 420 barModel Code:Â HPV055R0S1DH0ECL7100GBAAE000000DVAAAMounting flange location:Â Standard J744Paint:Â Primer Blue Per Spec 209-13CdPeak pressure rating:Â 420 barProduct height:Â 11.10Product height uom:Â inchProduct length:Â 13.18Product length uom:Â inchProduct trade name:Â HPV SeriesProduct weight:Â 101.41Product weight uom:Â poundProduct width:Â 11.57Product width uom:Â inchRated speed max:Â 3700 revolutions per minuteResponse orifice diameter:Â 0.8 millimetreShaft rotation:Â RightSpecial features17:Â Ca Control According To Test Procedure 262_55_2600_Tow Tractor M42_Nmc_LhcSub brand:Â DuraForceSwash angle sensor:Â NoType:Â Variable DisplacementWorking pressure max:Â 500 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
