Images are representative only. Please verify with our technical experts as actual product may differ.

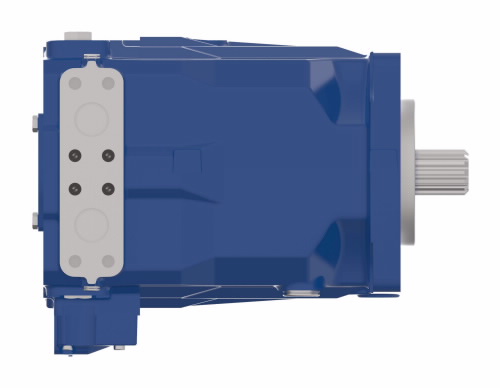

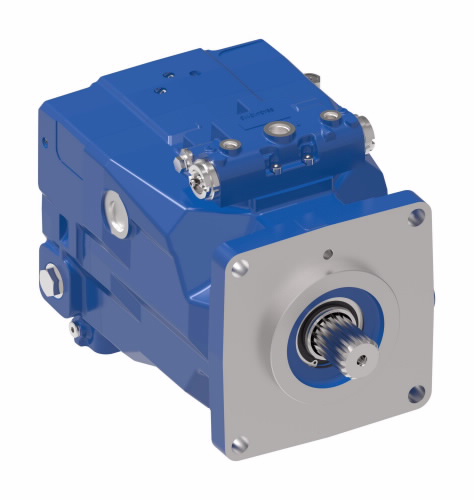

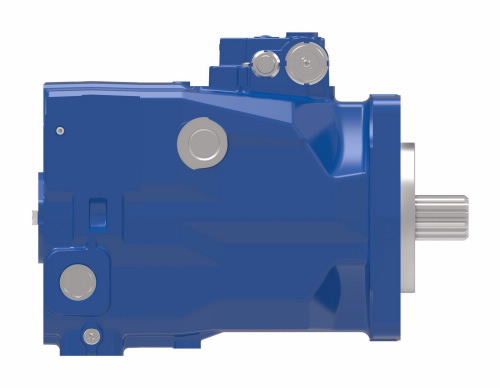

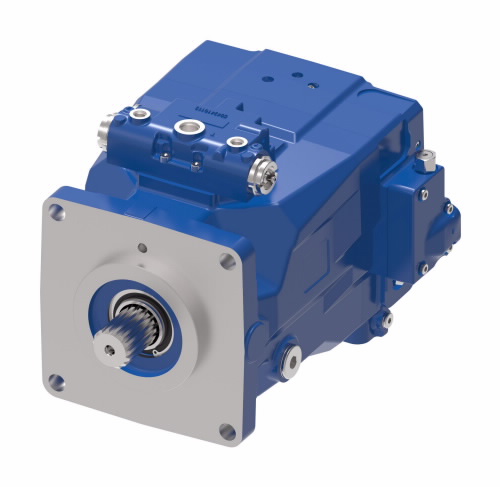

560AW01768AÂ DANFOSSÂ |Â VARIABLE CLOSED LOOP
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 560AW01768A
EATON DURAFORCE HPV SERIES CLOSED CIRCUIT PISTON PUMP
Compact packaging|Displacements: 55cc to 280cc (3.57 to 17.1 cu in)|Operating pressure: 420 bar (610 psi)
Compact packaging|Displacements: 55cc to 280cc (3.57 to 17.1 cu in)|Operating pressure: 420 bar (610 psi)
- Application:Â Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applicationsAuxiliary mounting:Â NoneCharge pressure relief valve setting:Â 19 barCharge pump:Â NONEConfiguration:Â SingleControl:Â Electro-Proportional/Pressure Cut-Off (E1P)/Round SolenoidsControl solenoids:Â DEUTSCH / 12 VDesign code11:Â ADisplacement:Â 75 cubic centimetre per revolutionDrive shaft seal configuration:Â SingleEccn:Â EAR99Filter configuration:Â Filter Flange With Filter CartridgeGear pump supply:Â NoneIcc2:Â Mobile - CC Piston PumpsIdentification:Â EatonInput mounting flange:Â SAE J744 standard (size 135: (*d))Input shaft:Â 14 Tooth 12/24 DpMain port orientation:Â RadialMaximum control pressure hydraulic and electric controls:Â 16 barMaximum input power:Â 159 kilowattMaximum input torque:Â 302 newton metreMinimum control pressure hydraulic and electric controls:Â 4 barMinimum working pressure:Â 420 barModel Code:Â HPV075R0S1MN2EEK110AF0000000000AF0AAMounting flange location:Â Standard J744Paint:Â Anti Rust Conservation OilPeak pressure rating:Â 420 barProduct height:Â 11.14Product height uom:Â inchProduct length:Â 14.21Product length uom:Â inchProduct trade name:Â HPV SeriesProduct weight:Â 108.03Product weight uom:Â poundProduct width:Â 13.07Product width uom:Â inchRated speed max:Â 3500 revolutions per minuteRelief valve setting:Â 400 barResponse orifice diameter:Â 1 millimetreShaft rotation:Â RightSpecial features17:Â Pco Set at 5500 Lbf/In2 (Both A & B)Sub brand:Â DuraForceSwash angle sensor:Â NoType:Â Variable DisplacementUnit type21:Â SingleWorking pressure max:Â 500 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
