560AW01772AÂ DANFOSSÂ |Â VARIABLE CLOSED LOOP
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 560AW01772A

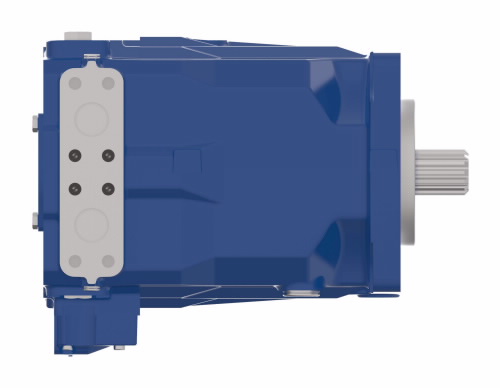

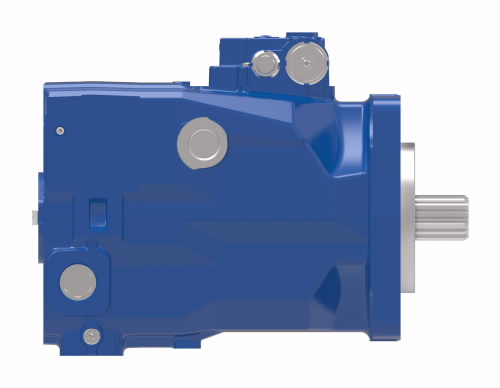

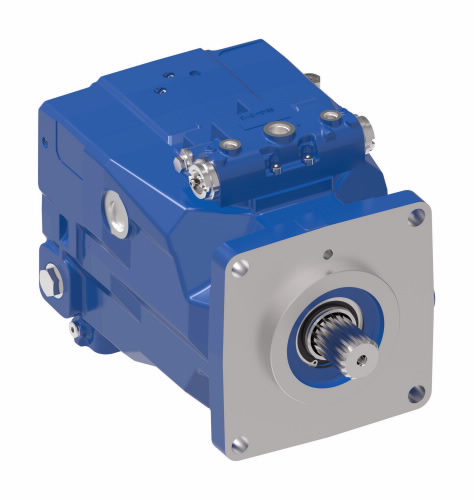

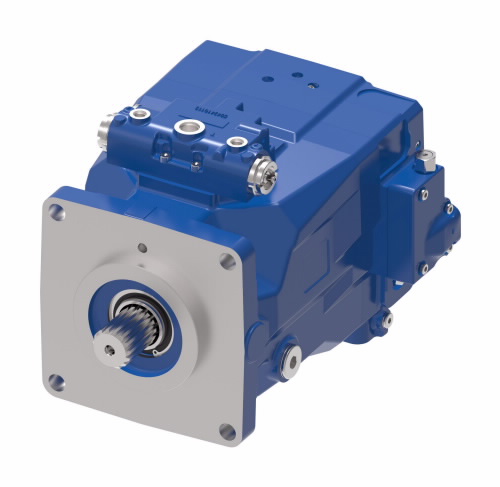

EATON DURAFORCE HPV SERIES CLOSED CIRCUIT PISTON PUMP
Compact packaging|Displacements: 55cc to 280cc (3.57 to 17.1 cu in)|Operating pressure: 420 bar (610 psi)
Compact packaging|Displacements: 55cc to 280cc (3.57 to 17.1 cu in)|Operating pressure: 420 bar (610 psi)
- Application:Â Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applicationsAuxiliary mounting:Â NoneCharge pressure relief valve setting:Â 23 barCharge pump:Â External Gear Pump 44 ccConfiguration:Â SingleControl:Â Electro-Proportional (E1)/Round SolenoidsControl solenoids:Â DEUTSCH / 24 VDesign code11:Â ADisplacement:Â 135 cubic centimetre per revolutionDrive shaft seal configuration:Â SingleEccn:Â EAR99Filter configuration:Â Filter Flange With Filter CartridgeGear pump supply:Â ExternalIcc2:Â Mobile - CC Piston PumpsIdentification:Â EatonInput mounting flange:Â SAE J744 standard / additional threads (sizes 105; 135: (*u))Input shaft:Â 13 Tooth 8/16 DpMain port orientation:Â RadialMaximum control pressure hydraulic and electric controls:Â 10 barMaximum input power:Â 247 kilowattMaximum input torque:Â 540 newton metreMinimum control pressure hydraulic and electric controls:Â 4 barMinimum working pressure:Â 420 barModel Code:Â HPV135R1S3MM1FCG4100GBJ0E00000000AAAMounting flange location:Â Standard J744Paint:Â Primer Blue Per Spec 209-13CdPeak pressure rating:Â 420 barProduct height:Â 10.98Product height uom:Â inchProduct length:Â 16.73Product length uom:Â inchProduct trade name:Â HPV SeriesProduct weight:Â 158.73Product weight uom:Â poundProduct width:Â 14.17Product width uom:Â inchRated speed max:Â 2900 revolutions per minuteRelief valve setting:Â 350 barResponse orifice diameter:Â 0.8 millimetreShaft rotation:Â RightSpecial features17:Â NoneSub brand:Â DuraForceSwash angle sensor:Â NoType:Â Variable DisplacementUnit type21:Â SingleWorking pressure max:Â 500 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
