560AW01795AÂ DANFOSSÂ |Â VARIABLE CLOSED LOOP
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 560AW01795A

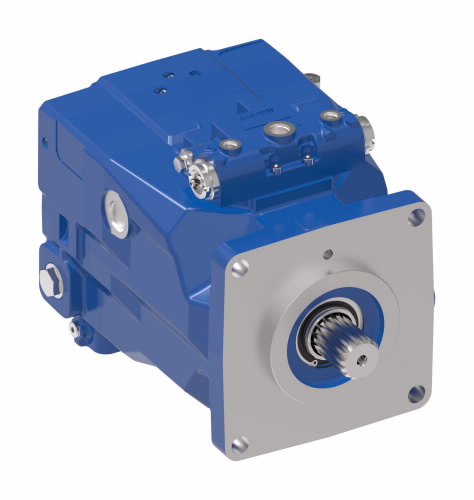

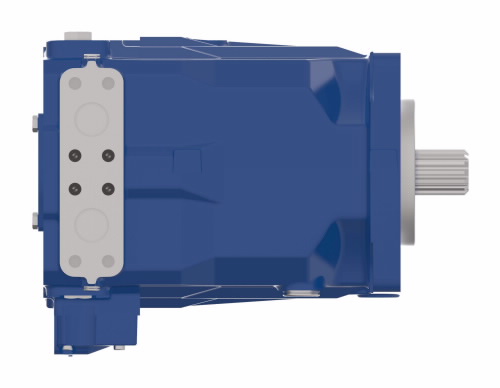

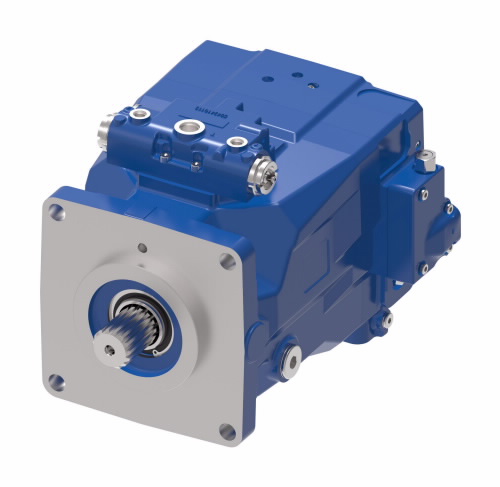

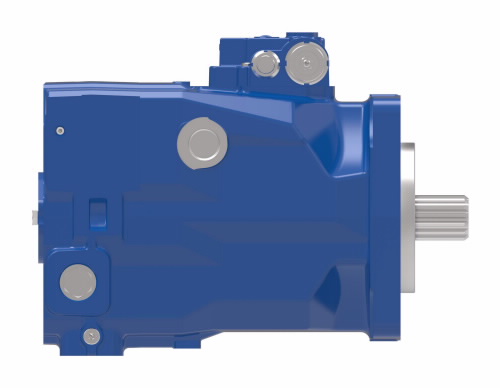

EATON DURAFORCE HPV SERIES CLOSED CIRCUIT PISTON PUMP
Compact packaging|Displacements: 55cc to 280cc (3.57 to 17.1 cu in)|Operating pressure: 420 bar (610 psi)
Compact packaging|Displacements: 55cc to 280cc (3.57 to 17.1 cu in)|Operating pressure: 420 bar (610 psi)
- Application:Â Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applicationsAuxiliary mounting:Â NoneCharge pressure relief valve setting:Â 17 barCharge pump:Â NONEConfiguration:Â SingleControl:Â Speed Related Hydraulic Mechanical (Caf) (165;210;280)Control solenoids:Â DEUTSCH / 12 VDesign code11:Â ADisplacement:Â 75 cubic centimetre per revolutionDrive shaft seal configuration:Â SingleEccn:Â EAR99Filter configuration:Â NoneGear pump supply:Â NoneIcc2:Â Mobile - CC Piston PumpsIdentification:Â EatonInput mounting flange:Â SAE J744 standard (size 135: (*d))Input shaft:Â 14 Tooth 12/24 DpMain port orientation:Â RadialMaximum input power:Â 159 kilowattMaximum input torque:Â 302 newton metreMinimum working pressure:Â 420 barModel Code:Â HPV075R0S1DH0ECG700AG0000000000FNAAAMounting flange location:Â Standard J744Paint:Â Primer Blue Per Spec 209-13CdPeak pressure rating:Â 420 barProduct height:Â 11.14Product height uom:Â inchProduct length:Â 14.21Product length uom:Â inchProduct trade name:Â HPV SeriesProduct weight:Â 108.03Product weight uom:Â poundProduct width:Â 13.07Product width uom:Â inchRated speed max:Â 3500 revolutions per minuteRelief valve setting:Â 350 barResponse orifice diameter:Â 0.8 millimetreShaft rotation:Â RightSpecial features17:Â CA Test Procedure 263_74_2200_Eaton; CA Straight Charge Port Flange With Steel Plug In Port BSub brand:Â DuraForceSwash angle sensor:Â NoType:Â Variable DisplacementUnit type21:Â SingleWorking pressure max:Â 500 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
