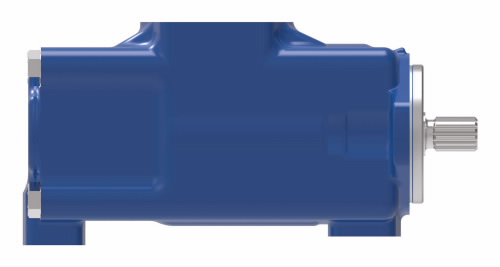

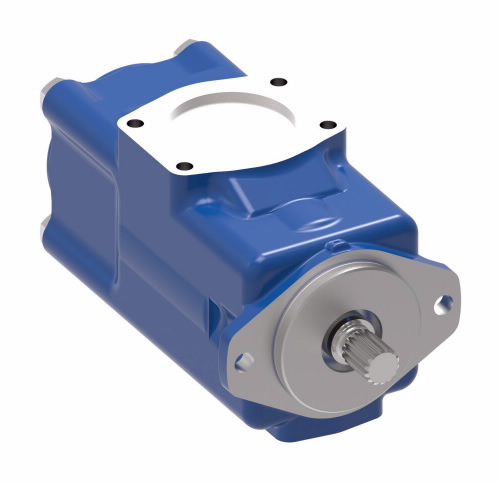

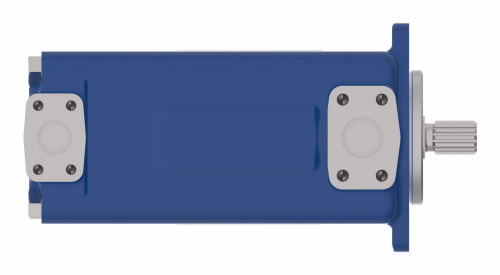

576964-3Â DANFOSSÂ |Â 4535VQ60A38 86CC20
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 576964-3
EATON VICKERS VQ(H) SERIES VANE PUMPS
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
- Application:Â Plastics Machinery, Press Machine, Die Casting, Machine Tools, Test Equipment, Primary Metal, Pulp & Paper, Wood Processing, Oil & Gas, Marine, and General IndustrialConfiguration:Â DoubleDesign code11:Â 20Displacement:Â 193 cubic centimetre per revolutionDisplacement front:Â 193.4 cubic centimetre per revolutionDisplacement rear:Â 27.4 cubic centimetre per revolutionEccn:Â EAR99Flow rate12:Â 402.96012288 litre per minuteFrame size:Â 45VQ-35VQFrame size front:Â 45VQFrame size rear:Â 35VQFront flange mounting style:Â NoneFront outlet port position cover end view:Â INLINE WITH INLET PORTFront outlet port type:Â 4 Bolt Flange per SAE J518C WITH English ThreadsGeometric displacement:Â 193 cubic centimetre per revolutionIcc2:Â Hydraulic - Vane PumpsIdentification:Â NoneInlet port connections:Â 1 1/2 Diameter 4-Bolt FlangeMinimum speed:Â 1800 revolutions per minuteModel Code:Â 4535VQ60A38-86CC20RPaint:Â NoneProduct height:Â 7.31Product height uom:Â inchProduct length:Â 17.34Product length uom:Â inchProduct material:Â Cast IronProduct trade name:Â VQ(H) SeriesProduct weight:Â 118.00Product weight uom:Â poundProduct width:Â 8.38Product width uom:Â inchRear outlet port position cover end view:Â In-line with inlet portRing size:Â 60Seal material16:Â Buna-NSeries:Â 4535VQShaft rotation:Â LeftShafts:Â Straight KeyedSpecial features17:Â NoneSub brand:Â VickersVane function type:Â PumpWorking pressure max:Â 210 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
