Images are representative only. Please verify with our technical experts as actual product may differ.
6020338Â DANFOSSÂ |Â PSSLA1060P045UK772XX2057
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 6020338

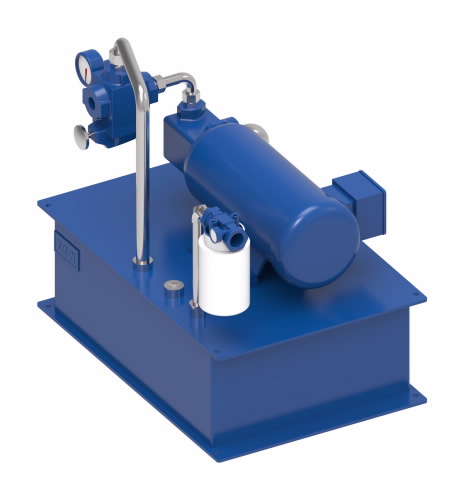

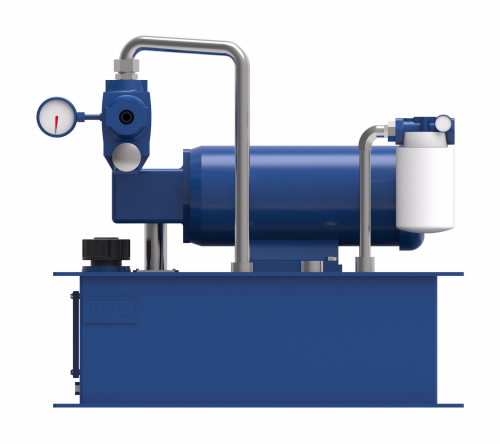

EATON PSSL SERIES HORIZONTAL PACKAGED SYSTEMS SYSTEM-L
Pressure Up to 275 bar (4,000 psi)|Flow Up to 91 gpm|Reservoir size 10-250 gal
Pressure Up to 275 bar (4,000 psi)|Flow Up to 91 gpm|Reservoir size 10-250 gal
- Air bleed valve:Â Not requiredBreather:Â MBR120 H2O-GateContainment tray:Â NoCooler:Â Full Flow Return Water/oil shell and tube (25GPM max flow)Displacement:Â 21 gallons per minuteEccn:Â EAR99Frequency:Â 60 HzHydraulic pump type:Â PistonIcc2:Â Horizontal Packaged SystemsInstallation position:Â HorizontalLevel temperature switch:Â Level/Temperature SwitchMain port connections:Â SAEManifold stations:Â In-line relief only, no manifoldModel Code:Â PSSLA1060P045UK772XX2057D9JCXWTJNC1HModel series:Â System-CenterMotor power:Â 20 HP (horsepower)Oil tank:Â 60 gallon (US)Paint:Â CustomPhase:Â 3-PhasePressure filter:Â YesPressure gauge:Â 0-3000 PSIPressure max:Â 2700 psiProduct height:Â 29.50Product height uom:Â inchProduct length:Â 48.00Product length uom:Â inchProduct material:Â Cast IronProduct trade name:Â PSSL SeriesProduct width:Â 50.00Product width uom:Â inchPump control type:Â PVQ pump unloading w/adj max stop and pressure line checkReturn filter:Â 60 gallons per minuteSpecial features17:Â Not RequiredSub brand:Â NoneValve size:Â DO8Voltage:Â 230 voltWinding type:Â Standard
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
