6031394Â DANFOSSÂ |Â PSSCA106JP032XX7424LXXXX
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 6031394

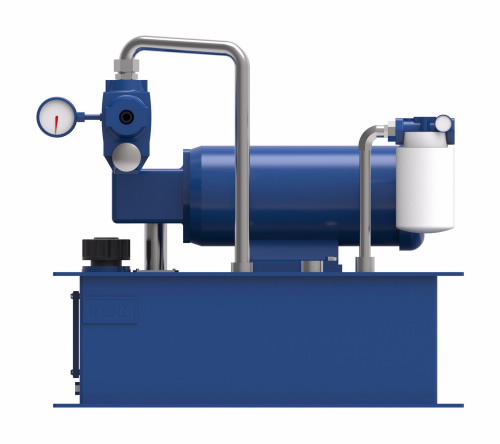

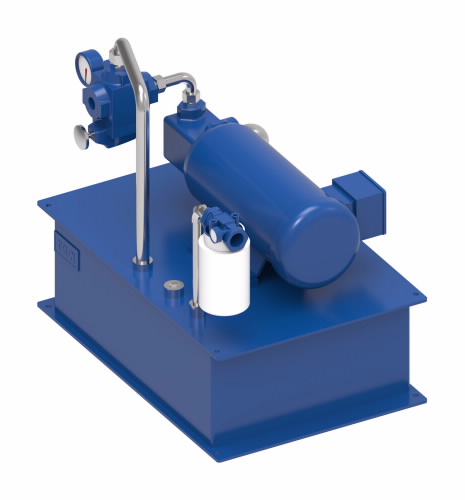

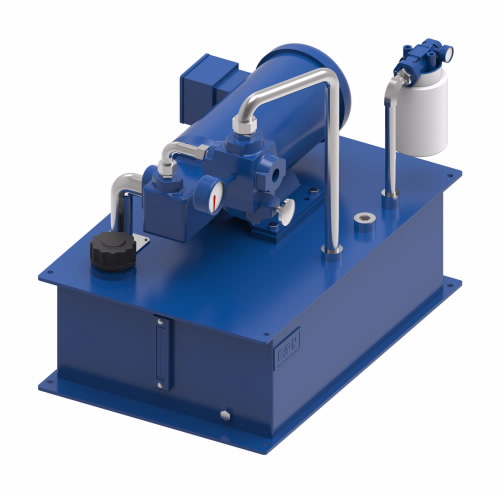

EATON PSSC SERIES HORIZONTAL PACKAGED SYSTEMS SYSTEM CENTER
Pressure Up to 275 bar (4,000 psi)|Flow Up to 91 gpm|Reservoir size 10-250 gal
Pressure Up to 275 bar (4,000 psi)|Flow Up to 91 gpm|Reservoir size 10-250 gal
- Air bleed valve:Â Not requiredBreather:Â MBR120 H2O-GateContainment tray:Â NoCooler:Â Passive Case Air/oil rear-mount (3GPM max flow)Displacement:Â 15 gallons per minuteEccn:Â EAR99Frequency:Â 60 HzHydraulic pump type:Â PistonIcc2:Â Horizontal Packaged SystemsInstallation position:Â HorizontalLevel temperature switch:Â Not RequiredMain port connections:Â SAEManifold stations:Â In-line relief only, no manifoldModel Code:Â PSSCA106JP032XX7424LXXXXB8WFXWTMNBXXModel series:Â System-CenterMotor power:Â 7.5 HP (horsepower)Oil tank:Â 60 gallon (US)Paint:Â Eaton BluePhase:Â 3-PhasePressure filter:Â YesPressure gauge:Â 0-1500 PSIPressure max:Â 2000 psiProduct height:Â 36Product height uom:Â inchProduct length:Â 38Product length uom:Â inchProduct material:Â Cast IronProduct trade name:Â PSSC SeriesProduct width:Â 25Product width uom:Â inchPump control type:Â Standard controlRelief valve set pressure:Â 1000 psiReturn filter:Â 25 gallons per minuteSpecial features17:Â Not RequiredSub brand:Â NoneValve size:Â DO3Winding type:Â Standard
SunSource Distribution Division: SunSource
Price:Â Requires Quote
