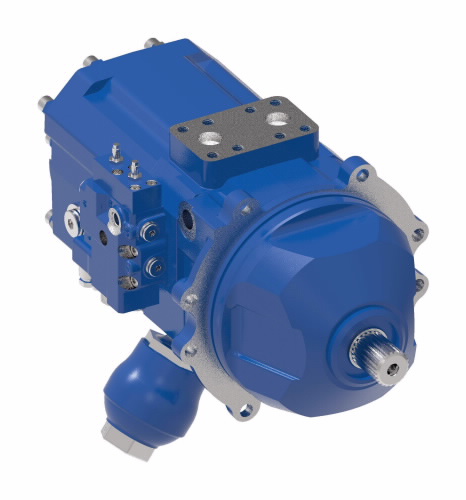

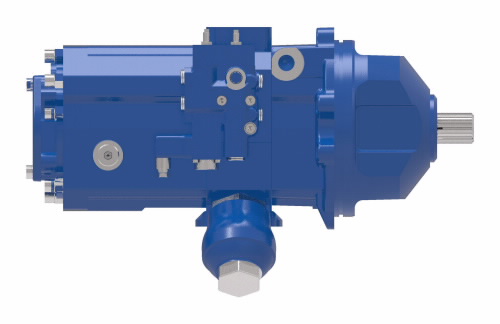

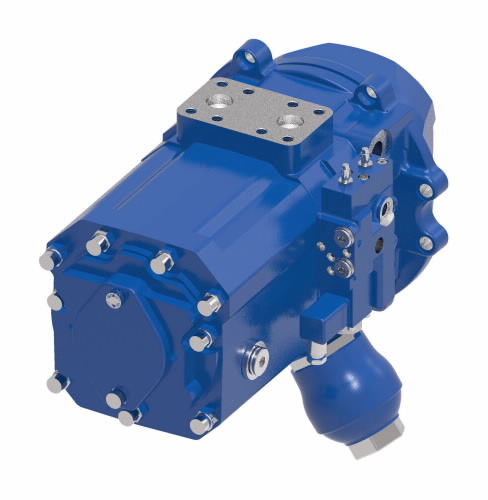

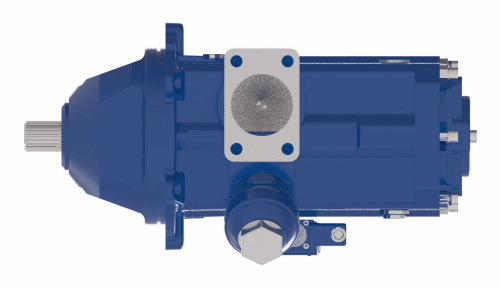

630AW00909AÂ DANFOSSÂ |Â HPR105 (CANFIELD CONV)
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 630AW00909A
EATON DURAFORCE HPR SERIES OPEN CIRCUIT PISTON PUMPS
Displacements: 55cc to 280cc (3.57 to 17.1 cu in)|Operating Pressure: 420 bar (6100 psi)|Quiet Operation: 70% pressure pulse reduction with SPU
Displacements: 55cc to 280cc (3.57 to 17.1 cu in)|Operating Pressure: 420 bar (6100 psi)|Quiet Operation: 70% pressure pulse reduction with SPU
- Application:Â Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applicationsCode title:Â Open Circuit Piston PumpController type:Â Pressure and Flow Compensator with .4375-20 SAE O-Ring Load Sense Port Left SideDesign code11:Â ADisplacement:Â 105 cubic centimetre per revolutionEccn:Â EAR99Fluid cleanliness:Â 18/16/13Front mounting:Â StandardHousing material:Â Cast IronIcc2:Â Mobile - OC Piston PumpsIdentification:Â EatonInput shaft:Â 14 Tooth 12/24 DpInput speed maximum:Â 2350 revolutions per minuteMaximum case drain temperature:Â 90 degree CelsiusMaximum displacement setting:Â 105 cubic centimetre per revolutionMaximum input power:Â 172.7 kilowattMaximum input torque:Â 702 newton metreMaximum recommended operating viscosity:Â 30 centistokesMinimum recommended operating viscosity:Â 15 centistokesModel Code:Â HPR105R0S1MFCBAC000D0F1AB0000000ACGCAANominal pressure rating:Â 6091 psiPaint:Â Primer + Ral 9005 BackPeak pressure rating:Â 7251 psiProduct height:Â 11.54Product height uom:Â inchProduct length:Â 15.23Product length uom:Â inchProduct trade name:Â HPR SeriesProduct weight:Â 0.06Product weight uom:Â tonProduct width:Â 14.5Product width uom:Â inchPump special features:Â 1mm Orifice in the X Port of the Control; with LEP2 Control; without Kicker Spring; Load Sense DisabledResponse Time:Â 120 millisecondShaft rotation:Â RightSub brand:Â DuraForce
SunSource Distribution Division: SunSource
