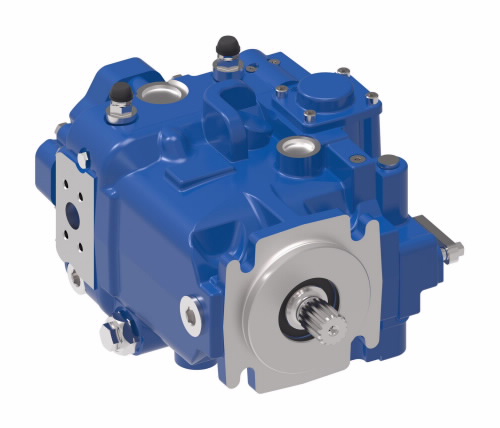

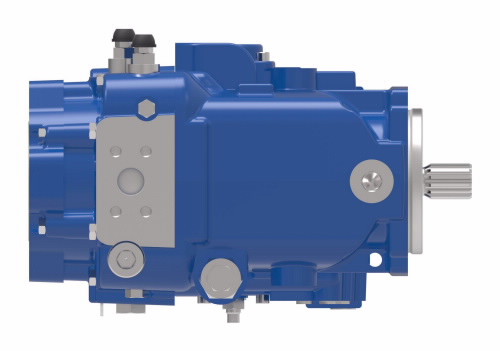

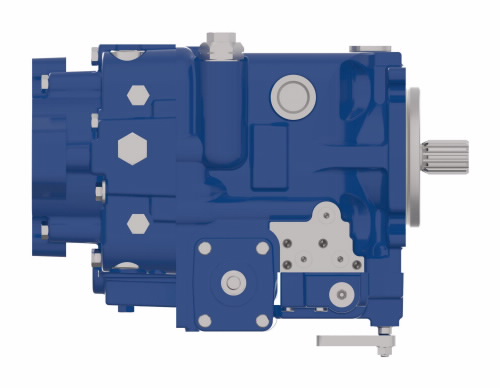

6422-039Â DANFOSSÂ |Â HYDRAULIC PUMP
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 6422-039
EATON SERIES 2 HEAVY DUTY CLOSED CIRCUIT PUMP SERVO CONTROL
Proven reliability in demanding applications|Multiple control options|Pro-FX ready
Proven reliability in demanding applications|Multiple control options|Pro-FX ready
- Application:Â Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applicationsAuxiliary mounting:Â B-Pad, Dual 2 Bolt Mount, No Shaft Seal, 13 Tooth 16/32 Pitch SplineCharge pressure relief valve setting:Â 27 barCharge pump displacement:Â 21 cubic centimetre per revolutionCharge pump options:Â NoneCharge pump special features:Â NoneConfiguration:Â SingleControl:Â Manual Displacement Control with (Normally Closed) Neutral Lockout Switch (Wide Band Neutral)Control orifice lower servo diameter:Â 0.057 inchControl orifice upper servo diameter:Â 0.057 inchControl supply orifice diameter:Â 0.073 inchDesign code11:Â ADesign type:Â NoneDisplacement:Â 105.4 cubic centimetre per revolutionDrive shaft seal configuration:Â SingleEccn:Â EAR99Flow at rated speed and psi:Â 376 litre per minuteHigh pressure relief valve setting port a:Â 431 barHigh pressure relief valve setting port b:Â 138 barIcc2:Â Mobile - CC Piston PumpsIdentification:Â StandardInput shaft:Â 14 Tooth 12/24 Pitch SplineMain port orientation:Â RadialMain port s:Â [1.00] - Code 62 Per SAE J518Maximum input torque:Â 424 newton metreMinimum working pressure:Â 430 barModel Code:Â ACL10514L1BVV2200MBJGG03D0E000AMounting flange location:Â Standard J744Paint:Â Primer Blue Per Spec 209-13CdPressure override setting port a:Â 395 barPressure override setting port b:Â 395 barProduct height:Â 11.11Product height uom:Â inchProduct length:Â 15.73Product length uom:Â inchProduct trade name:Â Series 2Product weight:Â 178.00Product weight uom:Â poundProduct width:Â 9.66Product width uom:Â inchShaft rotation:Â LeftSpecial pump assembly features:Â NoneSub brand:Â NoneType:Â Variable DisplacementValve plate:Â PropelWorking pressure max:Â 500 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
