Images are representative only. Please verify with our technical experts as actual product may differ.

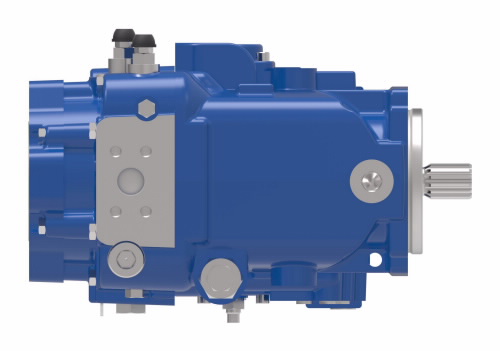

6422-149Â DANFOSSÂ |Â HYDRAULIC PUMP
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 6422-149
EATON SERIES 2 HEAVY DUTY CLOSED CIRCUIT PUMP SERVO CONTROL
Proven reliability in demanding applications|Multiple control options|Pro-FX ready
Proven reliability in demanding applications|Multiple control options|Pro-FX ready
- Application:Â Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applicationsAuxiliary mounting:Â B-B-Pad, Dual 2 Bolt Mount, No Shaft Seal, 15 Tooth 16/32 Pitch SplineCharge pressure relief valve setting:Â 21 barCharge pump displacement:Â 21 cubic centimetre per revolutionCharge pump options:Â Remote Filter PortsCharge pump special features:Â NoneConfiguration:Â SingleControl:Â Manual Displacement Control with (Normally Closed) Neutral Lockout Switch (Wide Band Neutral)Control orifice lower servo diameter:Â 0.028 inchControl orifice upper servo diameter:Â 0.028 inchControl supply orifice diameter:Â 0.028 inchDesign code11:Â ADesign type:Â NoneDisplacement:Â 105.4 cubic centimetre per revolutionDrive shaft seal configuration:Â SingleEccn:Â EAR99Flow at rated speed and psi:Â 376 litre per minuteHigh pressure relief valve setting port a:Â 483 barHigh pressure relief valve setting port b:Â 138 barIcc2:Â Mobile - CC Piston PumpsIdentification:Â StandardInput shaft:Â 13 Tooth 8/16 Pitch SplineMain port orientation:Â RadialMain port s:Â [1.00] - Code 62 Per SAE J518 same side locationMaximum input torque:Â 424 newton metreMinimum working pressure:Â 430 barModel Code:Â ACL10513R0EYY1100MBBBB03EAA000AMounting flange location:Â Standard J744Paint:Â Primer Blue Per Spec 209-13CdPressure override setting port a:Â 448 barPressure override setting port b:Â 448 barProduct height:Â 11.11Product height uom:Â inchProduct length:Â 15.73Product length uom:Â inchProduct trade name:Â Series 2Product weight:Â 178.00Product weight uom:Â poundProduct width:Â 9.30Product width uom:Â inchShaft rotation:Â RightSpecial pump assembly features:Â NoneSub brand:Â NoneType:Â Variable DisplacementValve plate:Â Standard, V-GrooveWorking pressure max:Â 500 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
