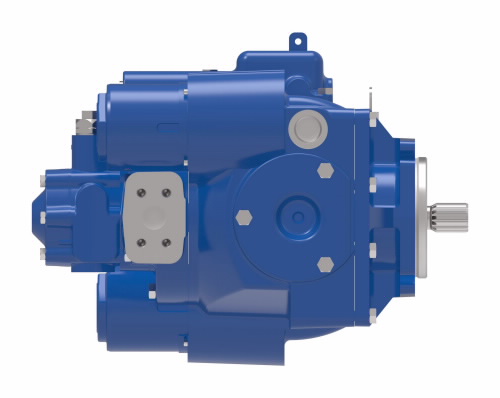

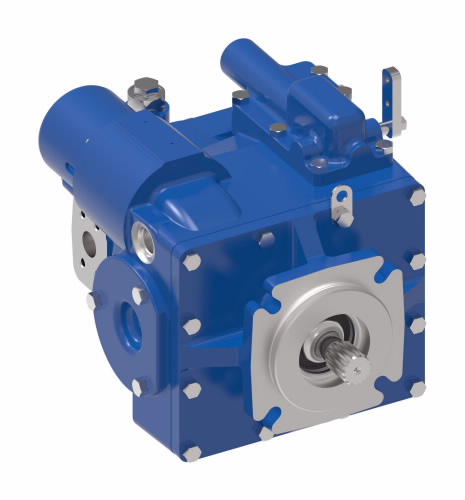

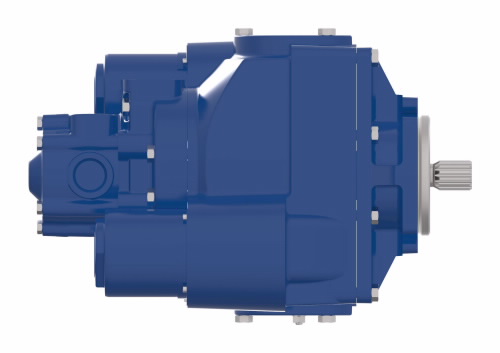

6423-128Â DANFOSSÂ |Â HYDRAULIC PUMP
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 6423-128
EATON SERIES 1 HEAVY DUTY CLOSED CIRCUIT PUMP SERVO CONTROL
Proven reliability in demanding applications|Multiple control options|Pro-FX ready
Proven reliability in demanding applications|Multiple control options|Pro-FX ready
- Application:Â Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applicationsAuxiliary mounting:Â SAE B Pad; With Shaft Seal (Dry)Charge pressure relief valve setting:Â 26 barCharge pump:Â Charge Pump IncludedCharge pump displacement:Â 21 cubic centimetre per revolutionCharge pump special features:Â NoneConfiguration:Â SingleControl:Â Manual Displacement Control with Wide Band Neutral and 3/4-16 UN Plug In Neutral Lockout PortControl supply orifice diameter:Â 0.073 inchDesign code11:Â BDesign type:Â Series 1Displacement:Â 105.4 cubic centimetre per revolutionDrive shaft seal configuration:Â SingleEccn:Â EAR99Flow at rated speed and psi:Â 375 litre per minuteIcc2:Â Mobile - CC Piston PumpsIdentification:Â StandardInput shaft:Â 14 Tooth 12/24 Pitch SplineMain port orientation:Â RadialMain port s:Â [1.00] - Code 61 Per SAE J518Maximum input torque:Â 441 newton metreMinimum working pressure:Â 420 barModel Code:Â ACA642314L1A00MBG000000B30M00000BMounting flange location:Â Standard J744Paint:Â Finish BlueProduct height:Â 12.26Product height uom:Â inchProduct length:Â 18.21Product length uom:Â inchProduct trade name:Â Series 1Product weight:Â 85.30Product weight uom:Â poundProduct width:Â 11.96Product width uom:Â inchShaft rotation:Â LeftSpecial features17:Â NoneSpecial pump assembly features:Â NoneSub brand:Â NoneType:Â Variable DisplacementValve plate:Â PropelWorking pressure max:Â 480 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
