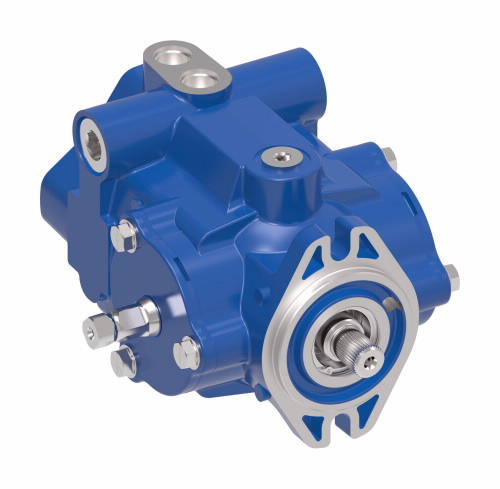

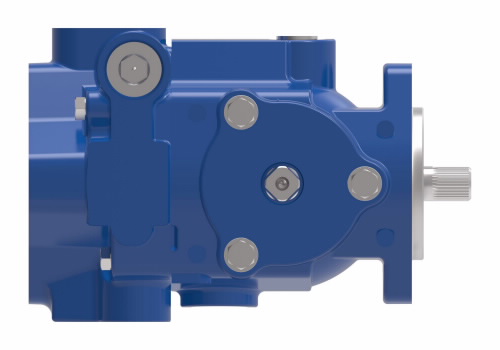

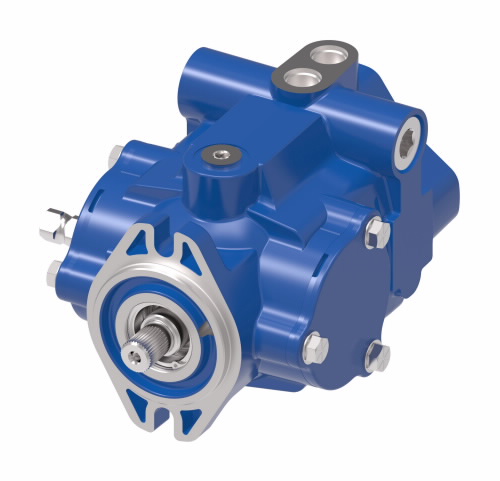

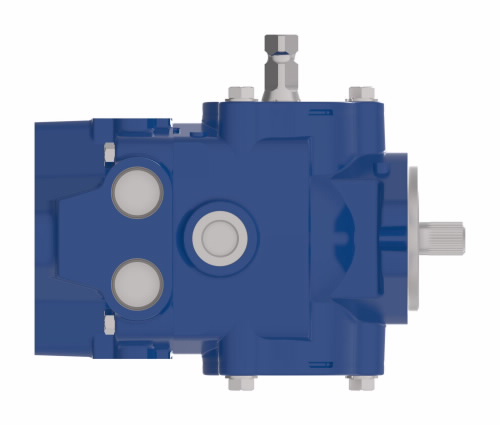

70160-RTM-03Â DANFOSSÂ |Â VARIABLE DISPLACEMENT
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 70160-RTM-03
EATON 70160 SERIES MEDIUM DUTY CLOSED CIRCUIT PUMP MANUAL CONTROL
Easy-to-operate sealed system|Displacements: 20cc to 49cc (1.22 to 3.00 cu in)|Flexible for multiple applications
Easy-to-operate sealed system|Displacements: 20cc to 49cc (1.22 to 3.00 cu in)|Flexible for multiple applications
- Application:Â Mining Machinery, Dump Trucks Lift, Agriculture Tractore , Railroad Equipments Etc.Auxiliary mounting:Â [2-Bolt A] SAE Flange Series 82-2Auxiliary port side c4 or c5 charge pump only:Â NoneAuxiliary port top front c1 or bypass valve:Â Bypass Valve InstalledAuxiliary port top rear c2:Â NoneCase drain d1 and d2:Â .750-16 UNF-2B SAE O-Ring Port D1-Top (D2-Bottom Plugged)Charge pump:Â 6.9 Cm3/R [.42 In3/R]; .750-16 UNF-2B SAE O-Ring Port For Suction Inlet (S)Charge pump displacement:Â 3.6 cubic centimetre per revolutionCharge pump special features:Â NoneConfiguration:Â SingleControl location:Â Left SideControl options:Â NoneControl shaft:Â With 15.7 [.62] Square Arm, And Radius 4.83 [.190] Locking Bolt Groove; 113 [4.45] From Unit Centerline To Control Shaft EndDesign code11:Â CDesign type:Â NoneDestroke valve:Â NoDisplacement:Â 20.3 cubic centimetre per revolutionDocumentlink 2d drawings 4:Â http://wcm-prod-cs.etn.com/ecm/groups/public/@pub/@eaton/@hyd/documents/content/a-292-042.pdfDocumentlink 2d drawings 5:Â http://wcm-prod-cs.etn.com/ecm/groups/public/@pub/@eaton/@hyd/documents/content/a-433-038_port_installation.pdfDrive shaft seal configuration:Â SingleEccn:Â EAR99Flow at rated speed and psi:Â 64.3 litre per minuteHousing material:Â Cast IronIcc2:Â Mobile - CC Piston PumpsIdentification:Â StandardInput shaft:Â 13 Tooth 16/32 Spline, Shaft Ext 41.1 [1.62]Main port location a:Â Opposite SidesMain port location b:Â Opposite SidesMain port orientation:Â RadialMain port s:Â 1.0625-12 UN-2B SAE O-RING PORTSMaximum input power:Â 42 kilowattMaximum input torque:Â 119 newton metreMinimum working pressure:Â 5076 psiModel Code:Â ADB12R1ALD11HH1B0A00300A00000B0CMounting flange location:Â Standard J744Mounting Type:Â StandardOutput shaft:Â 9 Tooth 16/32 Internal, Diameter 15.88 [.625], Accepts Shaft Extension 31.8 [1.25]Paint:Â Black Per Spec 209-13BPeak pressure rating:Â 5500 psiProduct height:Â 6.53Product height uom:Â inchProduct length:Â 9.95Product length uom:Â inchProduct trade name:Â 70160 SeriesProduct weight:Â 21Product weight uom:Â poundProduct width:Â 6.53Product width uom:Â inchRated speed max:Â 3600 revolutions per minuteRelief valve setting for main port a:Â 207 barRelief valve setting for main port b:Â 207 barShaft rotation:Â RightSpecial features17:Â NoneSub brand:Â NoneType:Â Variable DisplacementUnit type21:Â SingleValve plate:Â Valve Plate- Type 1Working pressure max:Â 5076 psi
SunSource Distribution Division: SunSource
Price:Â Requires Quote
