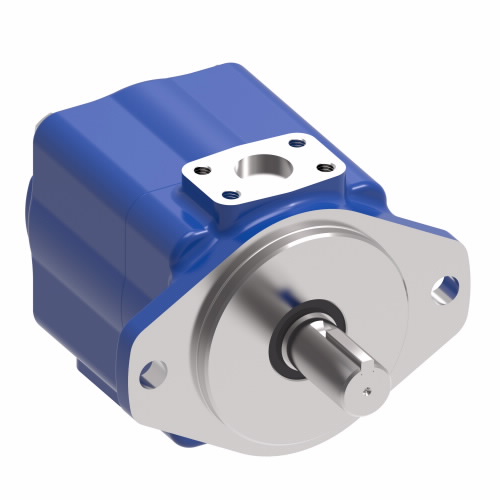

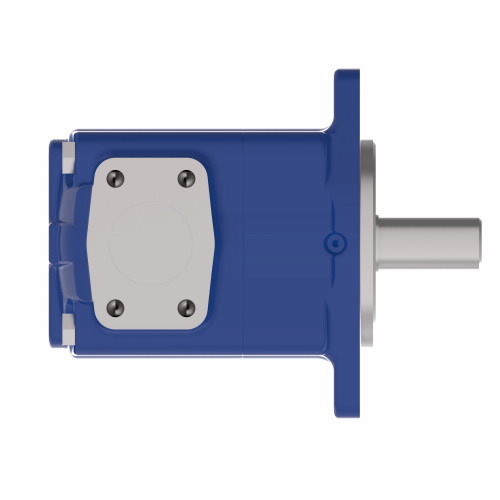

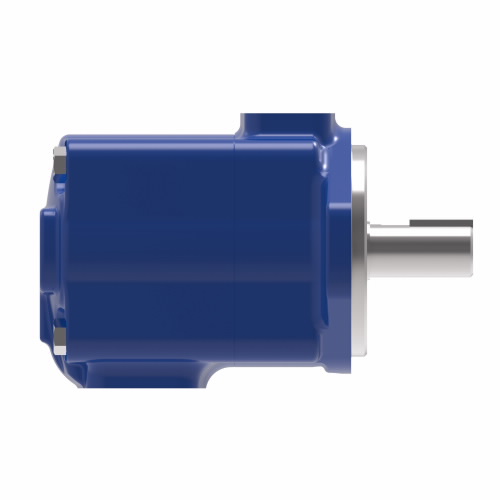

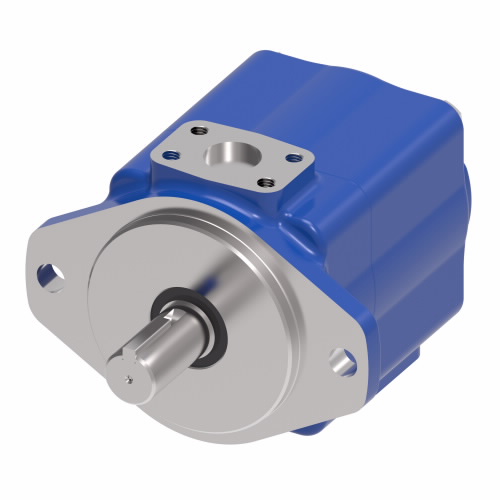

Name: HYDRAULIC PUMP
Brand: DANFOSS

Images are representative only. Please verify with our technical experts as actual product may differ.

708-0206-032 DANFOSS | HYDRAULIC PUMP

Manufacturer: DANFOSS

Manufacturer Model #: 708-0206-032

EATON VICKERS VMQ SERIES VANE PUMPS
Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

: Adapter mount orientation cover end view: None
Application: Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Configuration: Single
Design code11: 32
Displacement: 63 cubic centimetre per revolution
Eccn: EAR99
Flow rate12: 139.3375488 litre per minute
Frame size: 10-90 Cubic Centimeter per Rev
Front flange mounting style: SAE J744 101-2 (SAE B) 2 Bolt 101.60 [4.000] DIA. X 9.4 [.37] Pilot 14.4 [.57] DIA. Slots on 146.0 [5.75] DIA. Bolt Circle
Front outlet port type: 4 Bolt Flange per SAE J518C WITH English Threads
Icc2: Hydraulic - Vane Pumps
Identification: None
Minimum speed: 1800 revolutions per minute
Model Code: VMQ125S063A00100AAAANR000032
Output shaft coupling: None
Paint: None
Product height: 5.95
Product height uom: inch
Product length: 10.33
Product length uom: inch
Product material: Cast Iron
Product trade name: VMQ Series
Product weight: 46
Product weight uom: pound
Product width: 6.85
Product width uom: inch
Rear outlet port position cover end view: Opposite inlet port
Seal material16: Buna-N
Series: VMQ125
Shaft rotation: Right
Shaft seals: Single
Shafts: Straight Keyed
Special features17: None
Sub brand: Vickers
Vane function type: Pump
Working pressure max: 310 bar
: Documentlink catalog 1
Documentlink brochure 1
