Images are representative only. Please verify with our technical experts as actual product may differ.

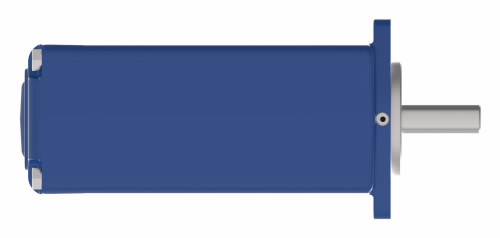

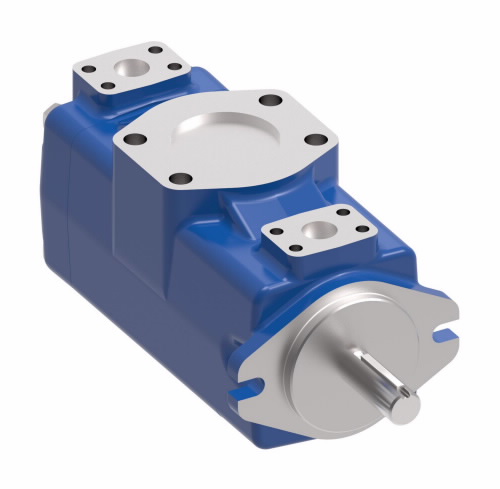

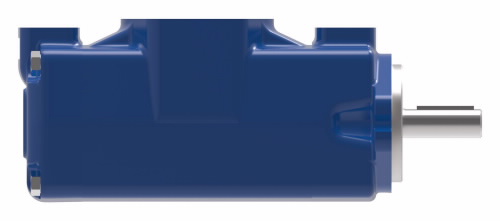

711-0259-032Â DANFOSSÂ |Â HYDRAULIC PUMP
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 711-0259-032
EATON VICKERS VMQ SERIES VANE PUMPS
Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump
Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump
- Adapter mount orientation cover end view: NoneApplication: Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection MoldingConfiguration: DoubleDesign code11: 32Displacement front: 50 cubic centimetre per revolutionDisplacement rear: 40 cubic centimetre per revolutionEccn: EAR99Flow rate12: 78.72062976 litre per minuteFrame size: VMQ2Frame size front: 10-90 Cubic Centimeter per RevFrame size rear: 10-90 Cubic Centimeter per RevFront flange mounting style: SAE J744 101-2 (SAE B) 2 Bolt 101.60 [4.000] DIA. X 9.4 [.37] Pilot 14.4 [.57] DIA. Slots on 146.0 [5.75] DIA. Bolt CircleFront outlet port position cover end view: 90° CCW to inlet portFront outlet port type: 4 Bolt Flange per SAE J518C WITH English ThreadsIcc2: Hydraulic - Vane PumpsIdentification: NoneMinimum speed: 1800 revolutions per minuteModel Code: VMQ22525S050040A00200AAABFANR00A032Output shaft coupling: NonePaint: BlueProduct height: 6.22Product height uom: inchProduct length: 14.62Product length uom: inchProduct material: Cast IronProduct trade name: VMQ SeriesProduct weight: 81.00Product weight uom: poundProduct width: 6.85Product width uom: inchRear outlet port connections: 90° CCW To Inlet PortRear outlet port position cover end view: 90° CCW to inlet portSeal material16: Buna-NSeries: VMQShaft rotation: RightShaft seals: SingleShafts: Splined Shaft Per SAE J744Special features17: NoneSub brand: VickersVane function type: PumpWorking pressure max: 280 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
