Images are representative only. Please verify with our technical experts as actual product may differ.

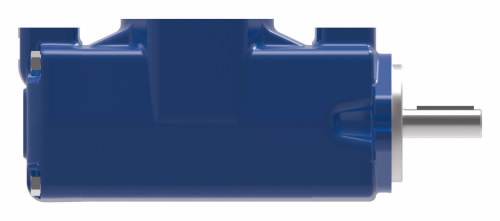

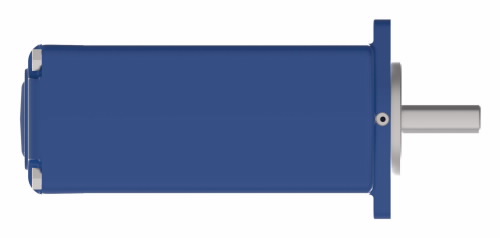

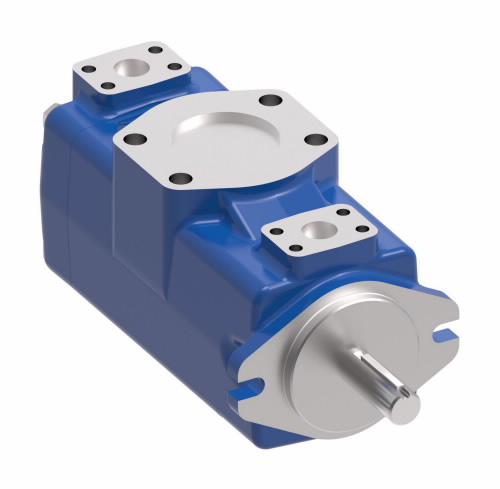

712-0006-032Â DANFOSSÂ |Â VMQ23525S090071B00200AAA
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 712-0006-032
EATON VICKERS VMQ SERIES VANE PUMPS
Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump
Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump
- Adapter mount orientation cover end view: NoneApplication: Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection MoldingConfiguration: DoubleDesign code11: 32Displacement front: 90 cubic centimetre per revolutionDisplacement rear: 71 cubic centimetre per revolutionEccn: EAR99Flow rate12: 160.59415296 litre per minuteFrame size: VMQ2Frame size front: 90-158 Cubic Centimeter per RevFrame size rear: 10-90 Cubic Centimeter per RevFront flange mounting style: SAE J744 127-2 (SAE C) 2 Bolt 127.00 [5.000] DIA. X 12.4 [.49] Pilot 17.6 [.69] DIA. Slots on 181.0 [7.13] DIA Bolt CircleFront outlet port position cover end view: 90° CW to inlet portFront outlet port type: 4 Bolt Flange per SAE J518C WITH English ThreadsIcc2: Hydraulic - Vane PumpsIdentification: NoneMinimum speed: 1800 revolutions per minuteModel Code: VMQ23525S090071B00200AAADCBVL00A032Output shaft coupling: NonePaint: BlueProduct height: 7.20Product height uom: inchProduct length: 16.88Product length uom: inchProduct material: Cast IronProduct trade name: VMQ SeriesProduct weight: 111.00Product weight uom: poundProduct width: 8.39Product width uom: inchRear outlet port connections: 45° CW To Inlet PortRear outlet port position cover end view: 45° CW to inlet portSeal material16: VitonSeries: VMQShaft rotation: LeftShaft seals: Double Secondary (Spring Side Out)Shafts: Splined Shaft Per SAE J744Special features17: NoneSub brand: VickersVane function type: PumpWorking pressure max: 248 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
