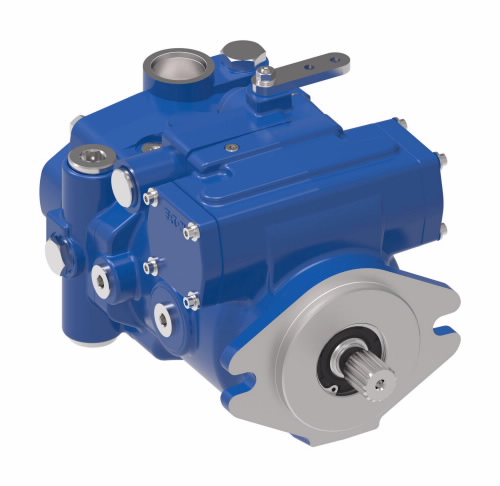

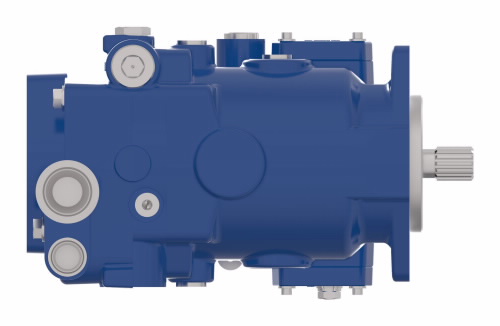

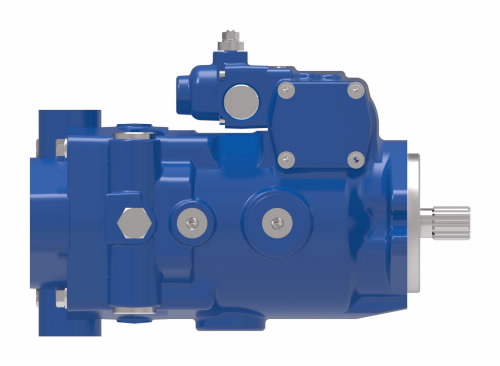

72400-RSW-04Â DANFOSSÂ |Â HYDRAULIC PUMP
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 72400-RSW-04
EATON 72400 SERIES MEDIUM DUTY CLOSED CIRCUIT PUMP SERVO CONTROL
Easy-to-operate sealed system|Displacements: 20cc to 49cc (1.22 to 3.00 cu in)|Flexible for multiple applications
Easy-to-operate sealed system|Displacements: 20cc to 49cc (1.22 to 3.00 cu in)|Flexible for multiple applications
- Application:Â Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applicationsAuxiliary port side c4 or c5 charge pump only:Â .750-16 UNF-2B SAE o-ring port (right side CW, left side CCW)Charge pressure relief valve setting:Â 345 barCharge pump:Â 6.9 Cm3/R [.42 In3/R] With 1.3125-12 UN-2B SAE O-Ring Port For Suction Inlet (S)Charge pump displacement:Â 6.9 cubic centimetre per revolutionCode title:Â 49.2 cm3/R [3.00 in3/R] Servo Controlled Variable Displacement PumpConfiguration:Â SingleControl:Â Hydraulic Remote With 5-15 Bar [72-217 PSI] Pilot Pressure Range, 2X .4375-20 Unf-2B Sae O-Ring PortControl options:Â NoneControl type:Â NoneDesign code11:Â DDestroke valve:Â NoDisplacement:Â 49.2 cubic centimetre per revolutionDrain port size and location:Â 1.0625-12 UN-2B SAE O-Ring Port - Left (D1) & Right (D2) Sides, Left Side Plugged; Thru Drain Into Rear Auxiliary Flange (D3)Drive shaft seal configuration:Â SingleEccn:Â EAR99Flow at rated speed and psi:Â 169 litre per minuteHigh pressure relief valve setting port a:Â 345 barHousing material:Â Cast IronIcc2:Â Mobile - CC Piston PumpsIdentification:Â StandardInput mounting flange:Â SAE AInput shaft:Â 15 Tooth 16/32 Spline, Shaft Extension 46 [1.81]Main port location a:Â Right SideMain port location b:Â Right SideMain port orientation:Â RadialMain port s:Â 1.3125-12 UN SAE O-Ring PortMaximum input power:Â 102 kilowattMaximum input torque:Â 286 newton metreMinimum working pressure:Â 5076 psiModel Code:Â ACGRAAA13EE1TT0HA0A000ABB0DMounting flange location:Â Standard J744Mounting Type:Â StandardOutput shaft:Â 9 Tooth 16/32 Internal, Diameter 15.88 [.625], Accepts Shaft Extension 31.8 [1.25]Paint:Â Primer Per Spec 209-13APeak pressure rating:Â 5500 psiProduct height:Â 7.93Product height uom:Â inchProduct length:Â 12.63Product length uom:Â inchProduct trade name:Â 72400 SeriesProduct weight:Â 62.00Product weight uom:Â poundProduct width:Â 8.02Product width uom:Â inchRated speed max:Â 3600 revolutions per minuteShaft rotation:Â RightSpecial features17:Â NoneSub brand:Â NoneType:Â Variable DisplacementUnit type21:Â SingleWorking pressure max:Â 350 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
