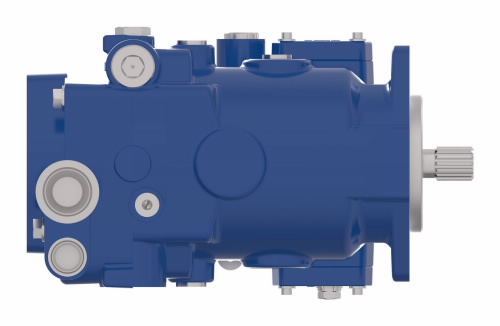

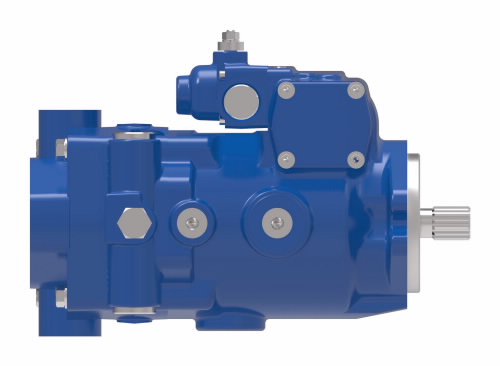

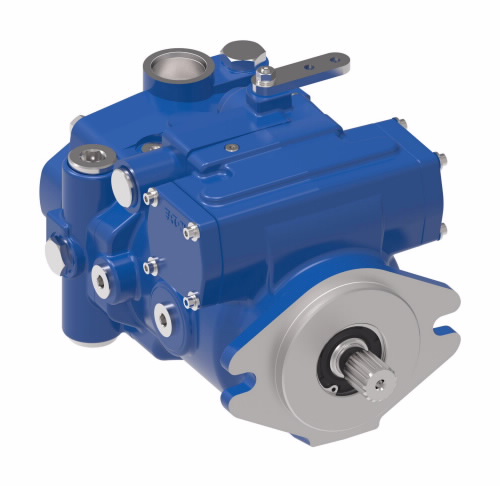

Images are representative only. Please verify with our technical experts as actual product may differ.
72400-SRL-04Â DANFOSSÂ |Â 3.00 SERVO CONTROLLED DI
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 72400-SRL-04
EATON 72400 SERIES MEDIUM DUTY CLOSED CIRCUIT PUMP SERVO CONTROL
Easy-to-operate sealed system|Displacements: 20cc to 49cc (1.22 to 3.00 cu in)|Flexible for multiple applications
Easy-to-operate sealed system|Displacements: 20cc to 49cc (1.22 to 3.00 cu in)|Flexible for multiple applications
- Application:Â Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applicationsCharge pump:Â 13.8 Cm3/R [.84 In3/R] With 1.3125-12 UN-2B SAE O-Ring Port For Suction Inlet (S)Charge pump displacement:Â 6.9 cubic centimetre per revolutionCode title:Â 49.2 cm3/R [3.00 in3/R] Servo Controlled Variable Displacement PumpConfiguration:Â SingleControl:Â Hydraulic Remote with Wide Band NeutralControl options:Â NoneDesign code11:Â DDisplacement:Â 49.2 cubic centimetre per revolutionDocumentlink 2d drawings 4:Â http://wcm-prod-cs.etn.com/ecm/groups/public/@pub/@eaton/@hyd/documents/content/a-295-xxx.pdfDocumentlink 2d drawings 5:Â http://wcm-prod-cs.etn.com/ecm/groups/public/@pub/@eaton/@hyd/documents/content/a-387-009.pdfDrive shaft seal configuration:Â SingleEccn:Â EAR99Flow at rated speed and psi:Â 169 litre per minuteHousing material:Â Cast IronIcc2:Â Mobile - CC Piston PumpsIdentification:Â StandardInput mounting flange:Â SAE AInput shaft:Â 15 Tooth 16/32 Spline, Shaft Extension 46 [1.81]Main port orientation:Â RadialMaximum input power:Â 102 kilowattMaximum input torque:Â 286 newton metreMinimum working pressure:Â 5076 psiModel Code:Â ACGRAFC23E11YY0MC0E000ADY0DMounting flange location:Â Standard J744Mounting Type:Â StandardOutput shaft:Â 11 Tooth 16/32 Internal, Diameter 19.33 [.761], Accepts Shaft Extension 31.8 [1.25]Paint:Â Primer Per Spec 209-13APeak pressure rating:Â 5500 psiProduct height:Â 8.85Product height uom:Â inchProduct length:Â 13.24Product length uom:Â inchProduct trade name:Â 72400 SeriesProduct weight:Â 62.00Product weight uom:Â poundProduct width:Â 8.02Product width uom:Â inchRated speed max:Â 3600 revolutions per minuteShaft rotation:Â RightSpecial features17:Â NoneSub brand:Â NoneType:Â Variable DisplacementUnit type21:Â SingleWorking pressure max:Â 350 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
