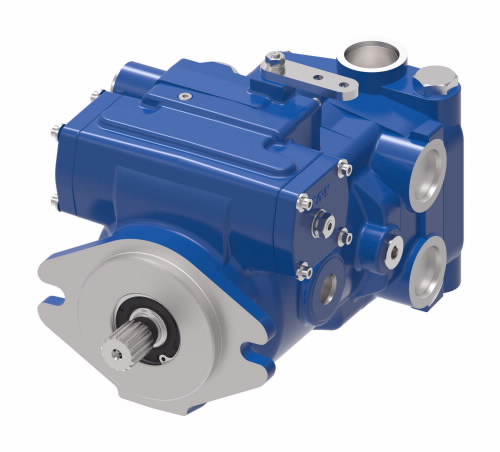

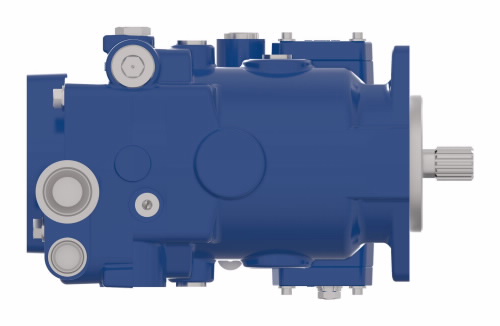

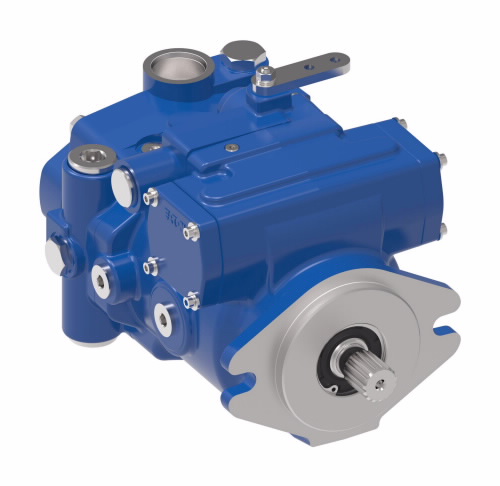

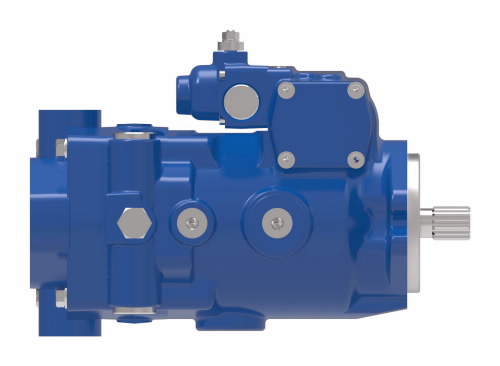

72400-SVF-04Â DANFOSSÂ |Â VARIABLE DISPLACEMENT
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 72400-SVF-04
EATON 72400 SERIES MEDIUM DUTY CLOSED CIRCUIT PUMP SERVO CONTROL
Easy-to-operate sealed system|Displacements: 20cc to 49cc (1.22 to 3.00 cu in)|Flexible for multiple applications
Easy-to-operate sealed system|Displacements: 20cc to 49cc (1.22 to 3.00 cu in)|Flexible for multiple applications
- Application:Â Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applicationsAuxiliary mounting:Â [2-Bolt A] SAE Flange Series 82-2Auxiliary port top front c1 or bypass valve:Â .750-16 UNF-2B SAE O-Ring Port PluggedAuxiliary port top rear c2:Â .750-16 UNF-2B SAE O-Ring Port PluggedCharge pump:Â 13.8 Cm3/R [.84 In3/R] With 1.3125-12 UN-2B SAE O-Ring Port For Suction Inlet (S)Charge pump displacement:Â 13.8 cubic centimetre per revolutionCode title:Â 49.2 cm3/R [3.00 in3/R] Servo Controlled Variable Displacement PumpConfiguration:Â SingleControl:Â Electronic Proportional Control without Electronic Driver, with fine hi-gain control metering, without wire harnessControl options:Â NoneDesign code11:Â DDestroke valve:Â NoDisplacement:Â 49.2 cubic centimetre per revolutionDocumentlink 2d drawings 4:Â http://wcm-prod-cs.etn.com/ecm/groups/public/@pub/@eaton/@hyd/documents/content/a-290-014.pdfDrain port size and location:Â 1.0625-12 UN-2B SAE O-Ring Port - Left (D1) & Right (D2) Sides, Both Sides Plugged; Thru Drain Into Rear Auxiliary Flange (D3)Drive shaft seal configuration:Â SingleEccn:Â EAR99Flow at rated speed and psi:Â 169 litre per minuteHigh pressure relief valve setting port a:Â 258.6 barHigh pressure relief valve setting port b:Â 258.6 barHousing material:Â Cast IronIcc2:Â Mobile - CC Piston PumpsIdentification:Â StandardInput mounting flange:Â SAE AInput shaft:Â .125-1 Taper; 25.4 [1.000] Dia 6.38 [.251] W X 19.8 [.78] L Keyway; .375-24 UNF-2B Thread; 35.1 [1.38] Shaft ExtensionMain port location a:Â Right SideMain port location b:Â Right SideMain port orientation:Â RadialMain port s:Â 1.3125-12 UN SAE O-Ring PortMaximum input power:Â 102 kilowattMaximum input torque:Â 286 newton metreMinimum working pressure:Â 5076 psiModel Code:Â ACGRCAA2CEZ1MM0ET00000B000DMounting flange location:Â Standard J744Mounting Type:Â StandardOutput shaft:Â 9 Tooth 16/32 Internal, Diameter 15.88 [.625], Accepts Shaft Extension 31.8 [1.25]Paint:Â Black Per Spec 209-13BPeak pressure rating:Â 5500 psiProduct height:Â 8.85Product height uom:Â inchProduct length:Â 13.24Product length uom:Â inchProduct trade name:Â 72400 SeriesProduct weight:Â 62Product weight uom:Â poundProduct width:Â 8.43Product width uom:Â inchRated speed max:Â 3600 revolutions per minuteShaft rotation:Â RightSpecial features17:Â NoneSub brand:Â NoneType:Â Variable DisplacementUnit type21:Â SingleWorking pressure max:Â 350 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
