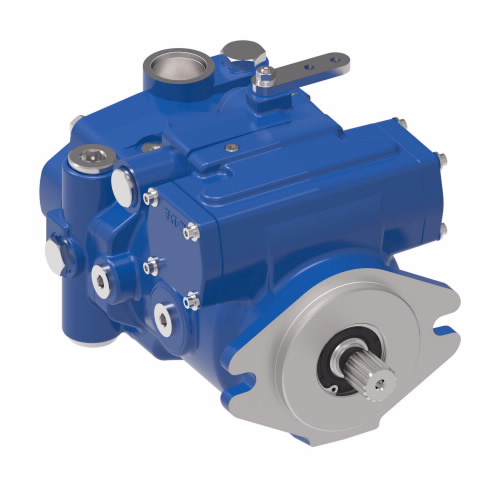

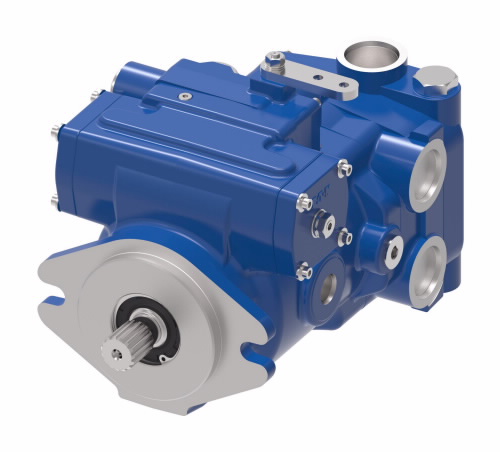

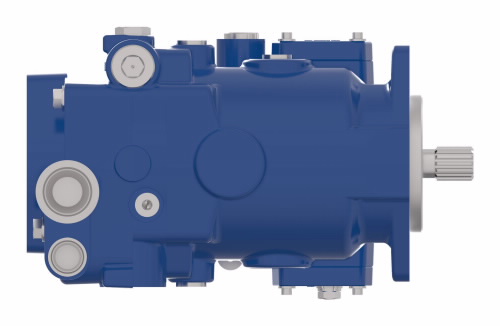

72400-SVS-04Â DANFOSSÂ |Â VARIABLE DISPLACEMENT
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 72400-SVS-04
EATON 72400 SERIES MEDIUM DUTY CLOSED CIRCUIT PUMP SERVO CONTROL
Easy-to-operate sealed system|Displacements: 20cc to 49cc (1.22 to 3.00 cu in)|Flexible for multiple applications
Easy-to-operate sealed system|Displacements: 20cc to 49cc (1.22 to 3.00 cu in)|Flexible for multiple applications
- Application:Â Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applicationsAuxiliary mounting:Â [2-Bolt B] SAE Flange Series 101-2Auxiliary port side c4 or c5 charge pump only:Â .750-16 UNF-2B SAE o-ring port (right side CW, left side CCW)Charge pressure relief valve setting:Â 345 barCharge pump:Â NONECharge pump options:Â NoneCode title:Â 49.2 cm3/R [3.00 in3/R] Servo Controlled Variable Displacement PumpConfiguration:Â SingleControl:Â Manual Displacement Control with (Normally Closed) Neutral Lockout Switch (Wide Band Neutral)Control options:Â Control Lever With Mounting Hole Diameter 10.31 [.406], Located 26.9 [1.06] From Shaft CenterlineControl orifice lower servo diameter:Â 0.71 millimetreControl orifice upper servo diameter:Â 0.71 millimetreControl supply orifice diameter:Â 0.91 millimetreDesign code11:Â DDestroke valve:Â NoDisplacement:Â 49.2 cubic centimetre per revolutionDocumentlink 2d drawings 4:Â http://wcm-prod-cs.etn.com/ecm/groups/public/@pub/@eaton/@hyd/documents/content/a-290-012.pdfDocumentlink 2d drawings 5:Â http://wcm-prod-cs.etn.com/ecm/groups/public/@pub/@eaton/@hyd/documents/content/a-387-040.pdfDrain port size and location:Â Thru Drain Into Rear Auxiliary Flange (D3)Drive shaft seal configuration:Â SingleEccn:Â EAR99Flow at rated speed and psi:Â 169 litre per minuteHigh pressure relief valve setting port a:Â 345 barHigh pressure relief valve setting port b:Â 345 barHousing material:Â Cast IronIcc2:Â Mobile - CC Piston PumpsIdentification:Â StandardInput shaft:Â 15 Tooth 16/32 Spline, Shaft Extension 46 [1.81]Main port location a:Â Right SideMain port location b:Â Right SideMain port orientation:Â RadialMain port s:Â 1.3125-12 UN SAE O-Ring PortMaximum input power:Â 102 kilowattMaximum input torque:Â 286 newton metreMinimum working pressure:Â 5076 psiModel Code:Â ACGRAGB00B31TTDMN0CAN0BBS0DMounting flange location:Â Standard J744Mounting Type:Â StandardOutput shaft:Â 13 Tooth 16/32 Internal, Diameter 21.81 [.858], Accepts Shaft Extension 41.1 [1.62]Paint:Â Black Per Spec 209-13BPeak pressure rating:Â 5500 psiProduct height:Â 8.85Product height uom:Â inchProduct length:Â 13.24Product length uom:Â inchProduct trade name:Â 72400 SeriesProduct weight:Â 62Product weight uom:Â poundProduct width:Â 8.43Product width uom:Â inchRated speed max:Â 3600 revolutions per minuteShaft rotation:Â RightSpecial features17:Â Left Hand Neutral Adjustment; Polyacrylate Drive Shaft SealSub brand:Â NoneType:Â Variable DisplacementUnit type21:Â SingleWorking pressure max:Â 350 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
