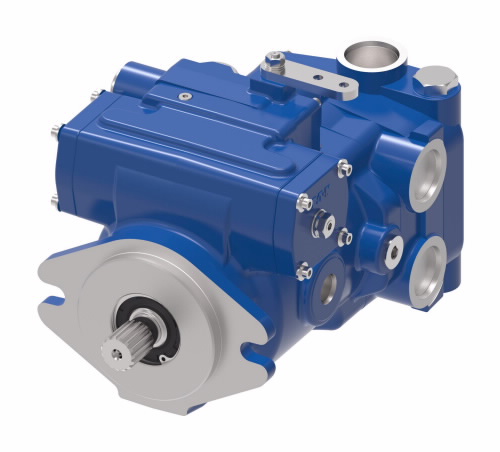

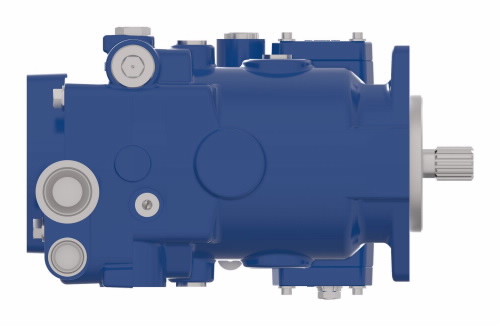

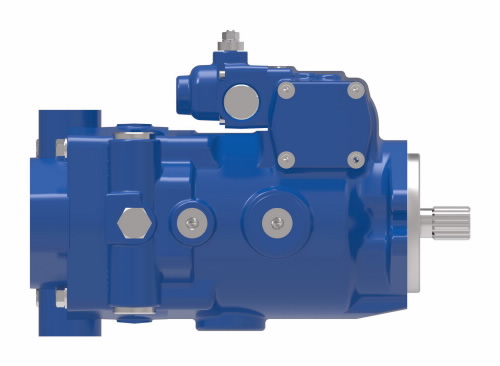

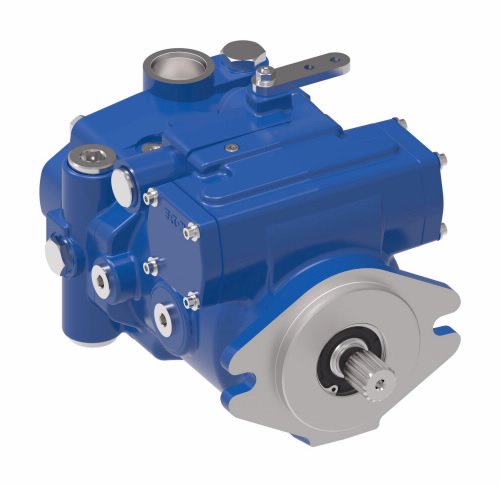

72400-SWB-04 DANFOSS | SERVO CONTROLLED VARIABLE

Manufacturer: DANFOSS

Manufacturer Model #: 72400-SWB-04

EATON 72400 SERIES MEDIUM DUTY CLOSED CIRCUIT PUMP SERVO CONTROL
Easy-to-operate sealed system|Displacements: 20cc to 49cc (1.22 to 3.00 cu in)|Flexible for multiple applications

: Application: Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applications
Auxiliary mounting: [2-Bolt A] SAE Flange Series 82-2
Auxiliary port side c4 or c5 charge pump only: .750-16 UNF-2B SAE o-ring port (right side CW, left side CCW)
Auxiliary port top front c1 or bypass valve: .750-16 UNF-2B SAE O-Ring Port Plugged
Auxiliary port top rear c2: .750-16 UNF-2B SAE O-Ring Port
Charge pump: 13.8 Cm3/R [.84 In3/R] With 1.3125-12 UN-2B SAE O-Ring Port For Suction Inlet (S)
Code title: 40.6 cm3/R [2.48 in3/R] Servo Controlled Variable Displacement Pump
Configuration: Single
Control: Hydraulic Remote With 5-15 Bar [72-217 PSI] Pilot Pressure Range, 2X .4375-20 Unf-2B Sae O-Ring Port
Control supply orifice diameter: 0.71 millimetre
Design code11: D
Destroke valve: No
Displacement: 40.6 cubic centimetre per revolution
Documentlink 2d drawings 4: http://wcm-prod-cs.etn.com/ecm/groups/public/@pub/@eaton/@hyd/documents/content/a-290-014.pdf
Drain port size and location: 1.0625-12 UN-2B SAE O-Ring Port - Left (D1) & Right (D2) Sides, Left Side Plugged; Thru Drain Into Rear Auxiliary Flange (D3)
Drive shaft seal configuration: Single
Eccn: EAR99
Flow at rated speed and psi: 140 litre per minute
High pressure relief valve setting port a: 240 bar
High pressure relief valve setting port b: 240 bar
Housing material: Cast Iron
Icc2: Mobile - CC Piston Pumps
Identification: Standard
Input mounting flange: SAE B
Input shaft: 15 Tooth 16/32 Spline, Shaft Extension 46 [1.81]
Main port location a: Same Side-Right
Main port orientation: Radial
Main port s: 1.3125-12 UN SAE O-Ring Port
Maximum input power: 84 kilowatt
Maximum input torque: 237 newton metre
Model Code: AADRAAA23DE1LLAHA0A000A000D
Mounting flange location: Standard J744
Mounting Type: Standard
Output shaft: 9 Tooth 16/32 Internal, Diameter 15.88 [.625], Accepts Shaft Extension 31.8 [1.25]
Paint: Primer Per Spec 209-13A
Peak pressure rating: 5500 psi
Product height: 8.79
Product height uom: inch
Product length: 9.66
Product length uom: inch
Product trade name: 72400 Series
Product weight: 60
Product weight uom: pound
Product width: 4.07
Product width uom: inch
Rated speed max: 3600 revolutions per minute
Shaft rotation: Right
Special features17: None
Sub brand: None
Type: Variable Displacement
Unit type21: Single
Working pressure max: 350 bar
: Documentlink technical bulletin 1
Documentlink catalog 1
