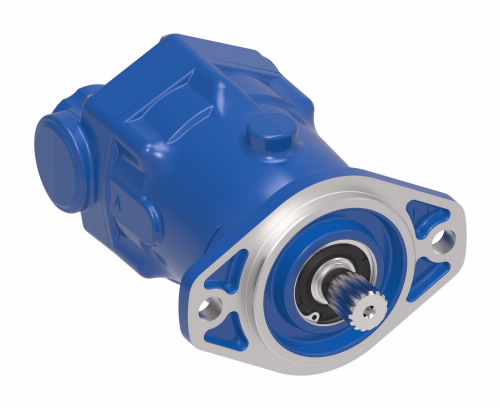

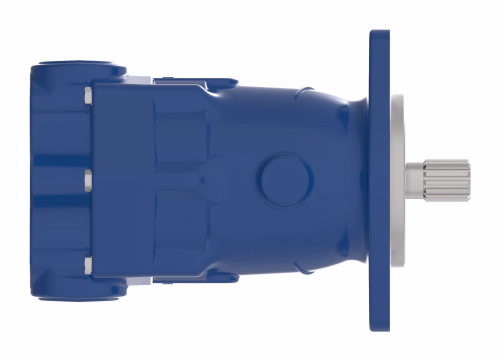

74328-DCLÂ DANFOSSÂ |Â FIXED DISPLACEMENT PISTON MOTOR
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 74328-DCL
EATON 74328 SERIES MEDIUM DUTY FIXED MOTOR
Advanced design features|Through drive option|Easy to configure and service
Advanced design features|Through drive option|Easy to configure and service
- Application:Â Agricultural Equipment, Forestry Equipment, Construction Equipment, Turf Care Equipment, Industrial EquipmentControl:Â No Control - Fixed DisplacementDesign code11:Â BDisplacement:Â 49.2 cubic centimetre per revolutionEccn:Â EAR99Flow rate12:Â 177.12 litre per minuteIcc2:Â HS MP Fixed Axial-Piston MotorsIdentification:Â StandardMain ports:Â 1.0625-12 UN-2B SAE O-Ring Ports - TopMaximum displacement:Â 49.2 cubic centimetre per revolutionMaximum speed:Â 3000 revolutions per minuteModel Code:Â AAKABJ500DE000BMounting flange:Â SAE 2 Bolt BMounting Type:Â SAE B 2 BoltOutput shaft:Â 15 Tooth 16/32 Spline, Shaft Ext 46 [1.81]Paint:Â NoneProduct height:Â 5.82Product height uom:Â inchProduct length:Â 8.06Product length uom:Â inchProduct material:Â Cast IronProduct trade name:Â 74328 SeriesProduct weight:Â 20Product weight uom:Â poundProduct width:Â 6.88Product width uom:Â inchSpecial features17:Â Coupled with "AUBURN GEAR PLANETORY GEARBOX PART# 7WB15328Z",with speed sensor magnetic pickup (9 pulse) with 3 pin Weather Pack connector with 127 [5.0] Lead wire and .750-16 UNF-2B SAE O-Ring port - bottom drain plugged (housing)Sub brand:Â NoneSystem working temperature:Â 107 degree CelsiusTorque:Â 246.78 newton metreWorking Pressure:Â 315 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
