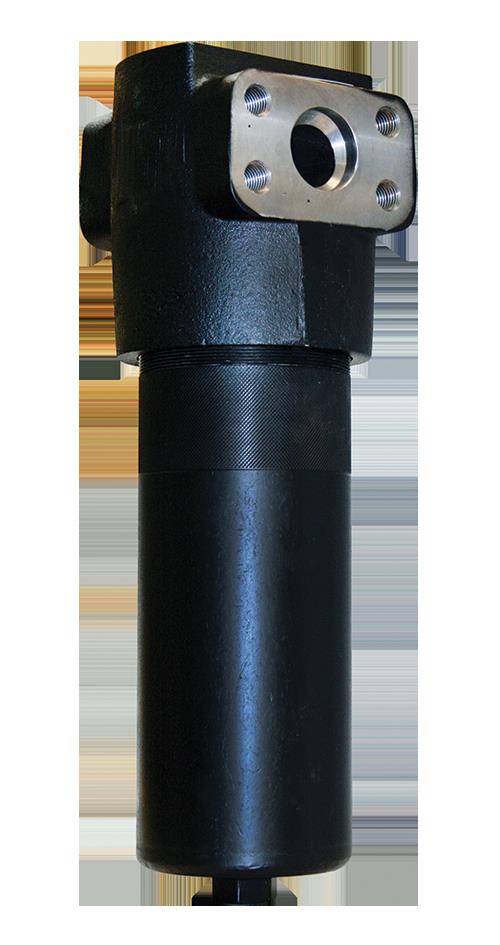

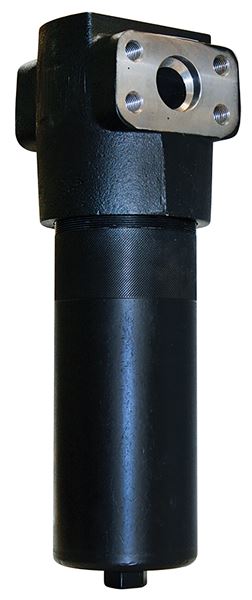

7612451Â SCHROEDERÂ |Â HS6013HZ10F24D13, Filter
Manufacturer:Â SCHROEDER
Manufacturer Model #:Â 7612451
- Full flow reverse flow check valve diverts flow past the element in hydrostatic applications
- Offered in SAE straight thread and flange porting
- Thread on bowl with drain plug for easy element service
- Certified for Offshore Standard DNVGL-OS-D101 "Marine and Machinery Systems and Equipment"
- Contact factory for higher flow applications
- Application:Â Hydraulic and LubeBowl Material:Â Element Case: SteelCategory:Â HS60 Hydrostatic Flow Filters, 6000 psi (415 bar), 100 gpm (380 l/min)Class:Â 10Connection Gender:Â 1 1/2 in. SAE 4-Bolt Flange Code 62Cracking Pressure:Â 5.9Designation:Â SingleDiameter:Â 6.3End Size:Â 1 1/2 in. SAE 4-Bolt Flange Code 62End Type:Â SAE 4-Bolt flangeFatigue Pressure:Â 415Features:Â Full flow reverse flow check valve diverts flow past the element in hydrostatic applications. Thread on bowl with drain plug for easy element service.Filter Rating:Â 10Flow:Â 100Head Material:Â Porting Head: Ductile IronHeight:Â 19.69Indication Type:Â D13 = Visual Pop-UpIndustry Standards/Certifications:Â Certified for Offshore Standard DNVGL-OS-D101 "Marine and Machinery Systems and Equipment"Item Name:Â HS6013HZ10F24D13, FilterMaterial:Â Excellement Z-Media (Synthetic)Medium:Â High Water Content: All Z-Media (synthetic); Invert Emulsions: 10 and 25 Z-Media (synthetic); Water Glycols: 3, 5, 10 and 25 Z-Media (synthetic); Phosphate Esters: All Z-Media (synthetic) with H (EPR) seal designation.Mounting Type:Â Top Ported (Hydrostatic)Operating Pressure [Max]:Â 415Operating Temperature [Max]:Â 107Operating Temperature [Min]:Â -29Seal Material:Â BunaShort Description:Â Hydrostatic Flow High Pressure FiltersSize:Â 13HStyle:Â Top PortedType:Â Top-Ported Pressure Filter, Hydrostatic (Bi-Directional)Width:Â 6.3
