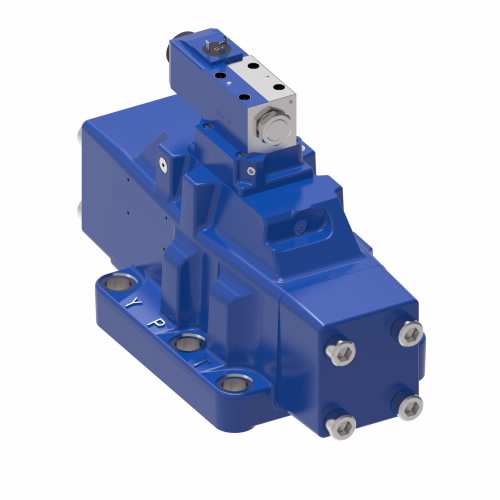

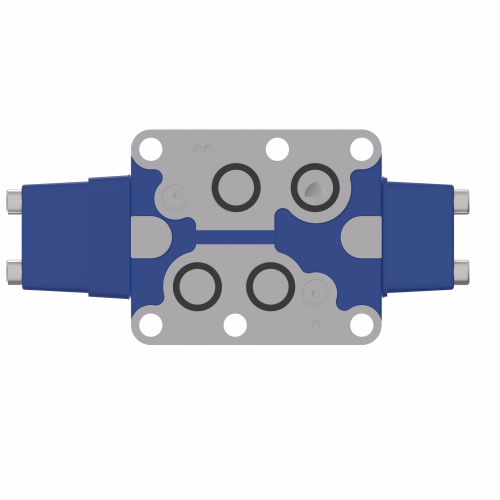

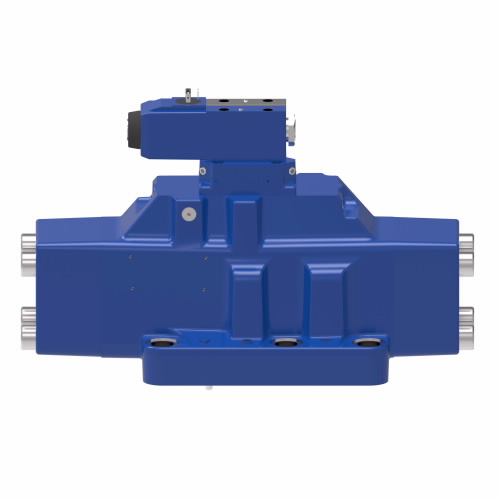

837AN00037A DANFOSS | DG5V-10-H-11AL-E-M-U-H-1

Manufacturer: DANFOSS

Manufacturer Model #: 837AN00037A

EATON VICKERS DG5V-10 10 DESIGN DIRECTIONAL CONTROL VALVES TWO STAGE
Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications

: Actuation identification: Solenoid B
Actuation type: Pilot Operated
Actuator identification: Flag with Standard Build as Per ANSI B93 9
Application: Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Body material7: Ductile Iron
Build orientation: Left Hand Build
Build type: Spring offset left hand build
Coil rating: 24 Volt DC
Coil type: ISO 4400 mounting
Design code11: 10
Eccn: EAR99
Electrical connector: ISO 4400 (Din 43650) Connector
Flow rate12: 700 litre per minute
Fluid cleanliness: 19/17/14 micron
Fluid compatibility13: Petroleum Oils
Function: Directional Control Valve
Gauge port thread type: 0.4375 - 20 UNF, SAE Thread
Icc2: IV Directional Control Valves
Interface: ISO4401-10
Leakage: Standard
Light: No
Manual override: Plain
Model Code: DG5V-10-H-11AL-E-M-U-H-10
Performance: High Performance
Pilot drain: External
Pilot supply: External
Pilot valve type: High Performance
Pressure rating: 350 bar
Product height: 9.87
Product height uom: inch
Product length: 16.50
Product length uom: inch
Product trade name: DG5V-10 10 Design
Product weight: 95.00
Product weight uom: pound
Product width: 7.50
Product width uom: inch
Seal material16: Buna-N
Size: D10
Special features17: None
Spool center condition: B Port End
Spool monitor switch: None
Spring arrangement: A
Stage: Two Stage
Sub brand: Vickers
Valve mount type: Subplate/manifold mounted
Working temperature max: 66 degree Celsius
Working temperature min: -18 degree Celsius
: Documentlink catalog 1
