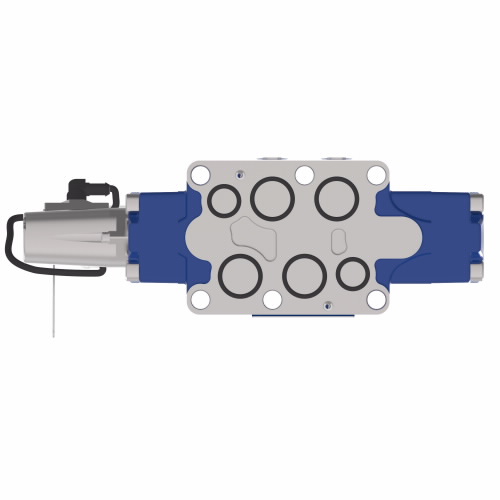

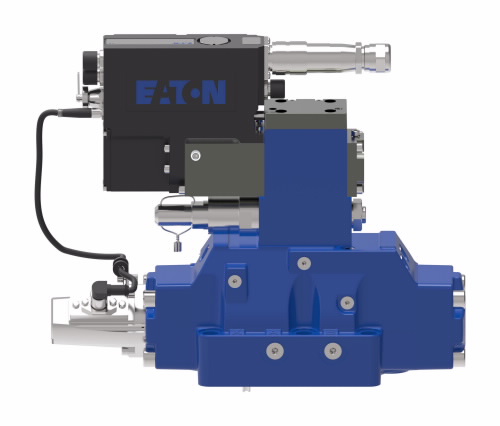

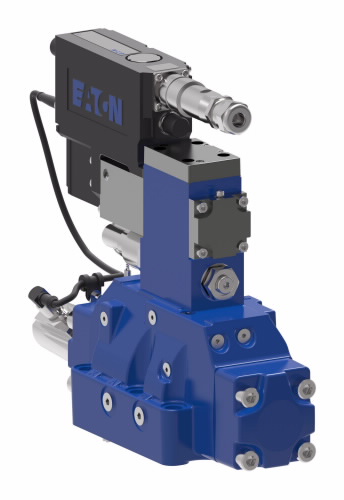

850AN00017B DANFOSS | AXISPRO

Manufacturer: DANFOSS

Manufacturer Model #: 850AN00017B

EATON VICKERS KBH2-08 10 DESIGN PROPORTIONAL VALVES AXISPRO HIGH PERFORMANCE
Gain a competitive edge with AxisPro|Intelligent controls and built-in diagnosis|Configure to your system specifications

: Actuation type: Solenoid Controlled Pilot Operated
Application: Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Body material7: Cast Iron
Connector type10: ELECTRICAL (PE7) 7 PIN ELECTRICAL PLUG WITH PLUG
Current: 3.7 ampere
Customer programmable: No
Design code11: 10
Eccn: EAR99
Feedback sensor: Yes
Feedback type: +/-10V Voltage Feedback Signal, +/-10V Voltage Monitor
Flow rate12: 375 litre per minute
Fluid cleanliness: 17/15/12
Fluid compatibility13: Materials and seals used in these valves are compatible with antiwear hydraulic oils and acryl phosphate ester
Function: Directional Control Valve
Icc2: IV Proportional Valves
Interface: ISO4401-08/NFPA D08/CETOP 8/NG25
Leakage: Standard
Level: 2
Light: No
Manual override: None
Model Code: KBH2-08-01-NS-TS-T-11-E-CO-NS-A-NS-VSC-NS-002-10
On board electronics: Axispro
Performance: Servo Performance
Pilot drain: Internal
Pilot supply: Internal
Pressure drop at rated flow: 5 bar
Pressure rating: 350 bar
Product height: 9.43
Product height uom: inch
Product length: 13.42
Product length uom: inch
Product trade name: KBH2-08 10 Design
Product weight: 35.00
Product weight uom: pound
Product width: 4.66
Product width uom: inch
Reducer module: No
Seal material16: Buna-N
Special features17: None
Spool center condition: Overlapped, P,A,B,T blocked
Spring arrangement: C
Stage: Two Stage
Sub brand: Vickers
Symmetrical flow: Yes
Valve mount type: Line
Working temperature max: 70 degree Celsius
Working temperature min: -20 degree Celsius
: Documentlink catalog 1
Documentlink brochure 1
