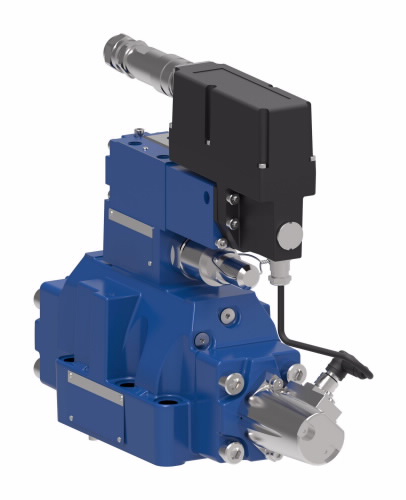

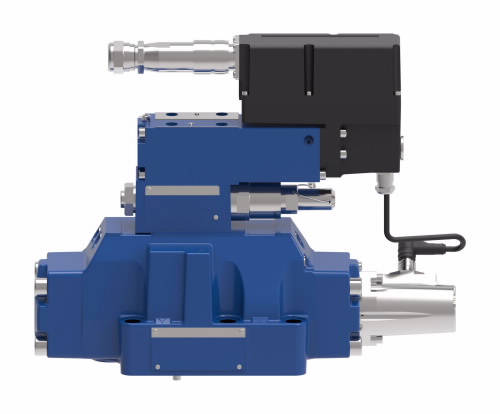

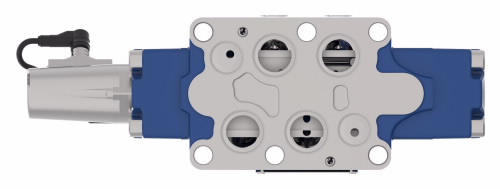

864AN00002AÂ DANFOSSÂ |Â KBHDG5V-7-5C200N-EX-M1-PH7-H4-12
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 864AN00002A
- Actuation identification:Â Solenoid A, Solenoid BActuation type:Â Solenoid Controlled Pilot OperatedApplication:Â Die casting & foundry, machine tool, marine/offshore, press, primary metal, plastics, pulp & paper, test equipmenBody material7:Â Cast IronBuild orientation:Â Solenoid `B` at port `A` end of valve and Solenoid `A` at port `B` end of valveBuild type:Â Spring centeredCoil voltage8:Â 24 Volt DCCommunication bus9:Â NoneConnector type10:Â ELECTRICAL (PH7) AS PE7 BUT WITH PIN C USED FOR ENABLE SIGNALCurrent:Â 3 ampereDesign code11:Â 12Eccn:Â EAR99Feedback sensor:Â YesFeedback type:Â +/-10V Voltage Feedback Signal, +/-10V Voltage MonitorFlow rate12:Â 200 litre per minuteFluid cleanliness:Â 17/15/12Fluid compatibility13:Â Antiwear Hydraulic Oils And Non Alkyl Based Phosphate EstersFunction:Â Directional Control ValveIcc2:Â IV Proportional ValvesInterface:Â ISO4401-07/NFPA D07/CETOP 7/NG16Leakage:Â StandardLight:Â NoManual override:Â NoneModel Code:Â KBHDG5V-7-5C200N-EX-M1-PH7-H4-12On board electronics:Â KBHPerformance:Â Servo PerformancePilot drain:Â ExternalPilot supply:Â ExternalPressure drop at rated flow:Â 5 barPressure rating:Â 350 barProduct height:Â 9.87Product height uom:Â inchProduct length:Â 10.92Product length uom:Â inchProduct trade name:Â KBHDG5V-7 12 DesignProduct weight:Â 25.1Product weight uom:Â poundProduct width:Â 3.62Product width uom:Â inchReducer module:Â YesSeal material16:Â FluorocarbonSpecial features17:Â NoneSpool center condition:Â Zero LapSpring arrangement:Â CStage:Â Two StageSub brand:Â VickersSymmetrical flow:Â YesTank port rating:Â 50 barValve mount type:Â SubplateWorking temperature max:Â 80 degree CelsiusWorking temperature min:Â -40 degree Celsius
SunSource Distribution Division: SunSource
Price:Â Requires Quote
