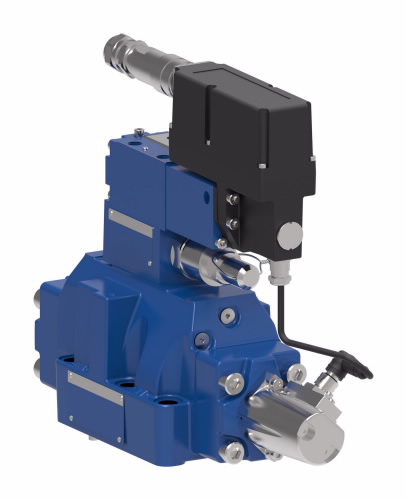

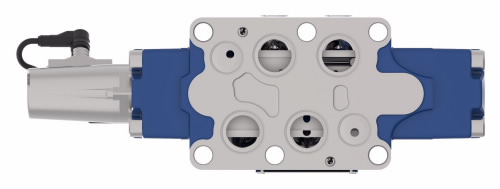

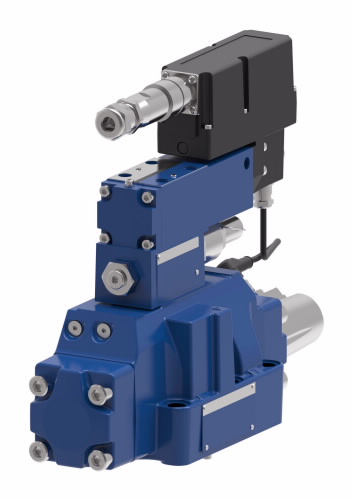

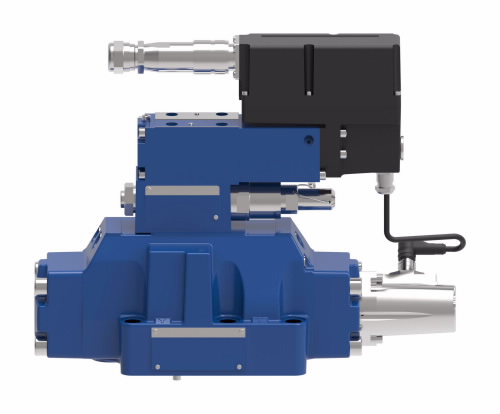

864AN00037A DANFOSS | KBHDG5V-7-2C200N-X-T-M4-PE7-H4-12

Manufacturer: DANFOSS

Manufacturer Model #: 864AN00037A

EATON VICKERS KBHDG5V-7 12 DESIGN PROPORTIONAL VALVES WITH OBE
Simpler, faster and lower cost valve package installation|Reduced possibility of selection and installation errors|Optimized valve and electronics

: Actuation identification: Solenoid A, Solenoid B
Actuation type: Solenoid Controlled Pilot Operated
Application: Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Body material7: Cast Iron
Build orientation: Solenoid `B` at port `A` end of valve and Solenoid `A` at port `B` end of valve
Build type: Spring centered
Coil voltage8: 24 Volt DC
Communication bus9: None
Connector type10: ELECTRICAL (PE7) 7 PIN ELECTRICAL PLUG WITH PLUG
Current: 3 ampere
Customer programmable: No
Design code11: 12
Eccn: EAR99
Feedback sensor: Yes
Feedback type: 4-20 Ma Current Feedback Signal, 4-20 Ma Current Monitor
Flow rate12: 200 litre per minute
Fluid cleanliness: 17/15/12
Fluid compatibility13: Antiwear Hydraulic Oils And Non Alkyl Based Phosphate Esters
Function: Directional Control Valve
Icc2: IV Proportional Valves
Interface: ISO4401-07/NFPA D07/CETOP 7/NG16
Leakage: Standard
Light: No
Manual override: None
Model Code: KBHDG5V-7-2C200N-X-T-M4-PE7-H4-12
On board electronics: KBH
Performance: Servo Performance
Pilot drain: Internal
Pilot supply: Internal
Pressure drop at rated flow: 5 bar
Pressure rating: 350 bar
Product height: 9.87
Product height uom: inch
Product length: 10.92
Product length uom: inch
Product trade name: KBHDG5V-7 12 Design
Product weight: 25.1
Product weight uom: pound
Product width: 3.62
Product width uom: inch
Reducer module: Yes
Seal material16: Fluorocarbon
Special features17: None
Spool center condition: All Ports Blocked
Spring arrangement: C
Stage: Two Stage
Sub brand: Vickers
Symmetrical flow: Yes
Tank port rating: 50 bar
Valve mount type: Subplate
Working temperature max: 80 degree Celsius
Working temperature min: -40 degree Celsius
: Documentlink catalog 1
Documentlink brochure 1
