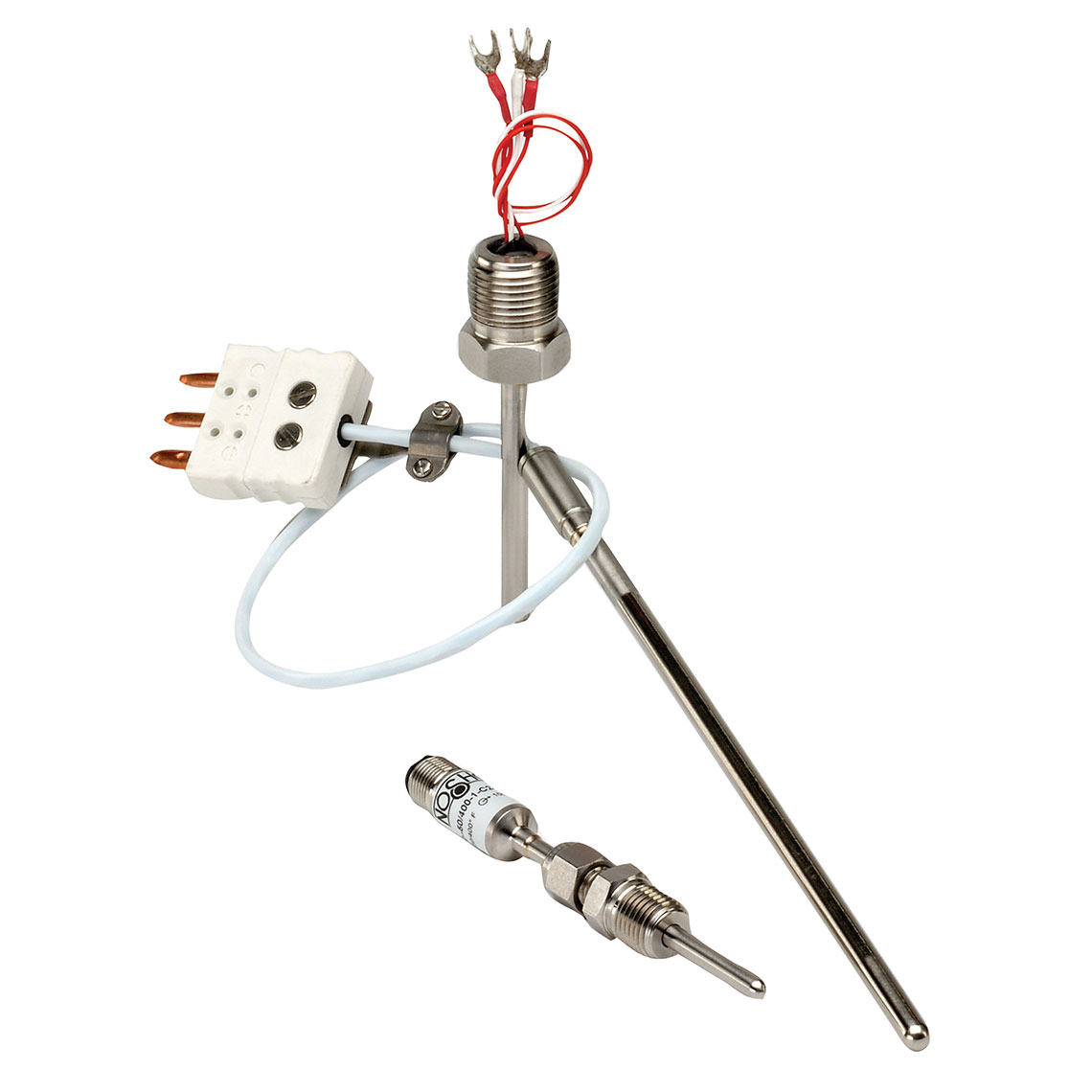

900--50/400-1-C2-8-37-040-2Â NOSHOKÂ |Â 900 Series 4 in. Stem Lengths Industrial Resistance Temperature Device (RTD) Probe
Manufacturer:Â NOSHOK
Manufacturer Model #:Â 900--50/400-1-C2-8-37-040-2
- General purpose RTD probe with PVC or PTFE lead wires
- Adjustable and welded fittings are available
- Ideal for OEM applications
- PVC or PTFE jacketed lead wires are available

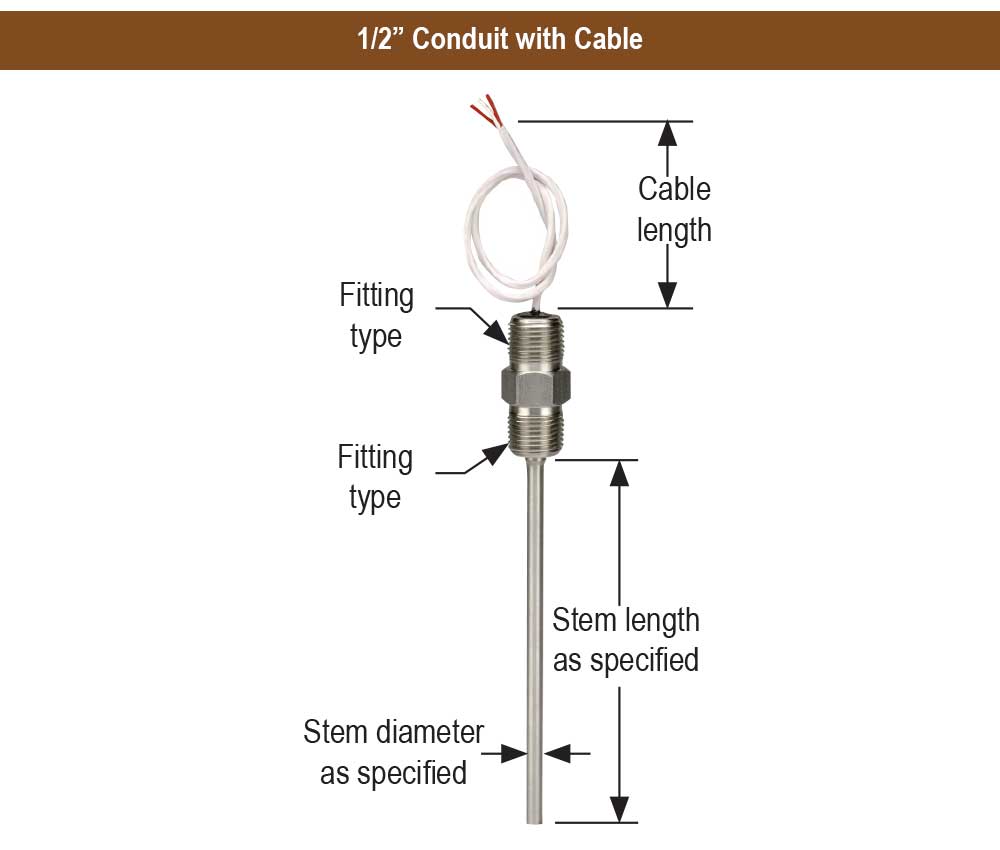

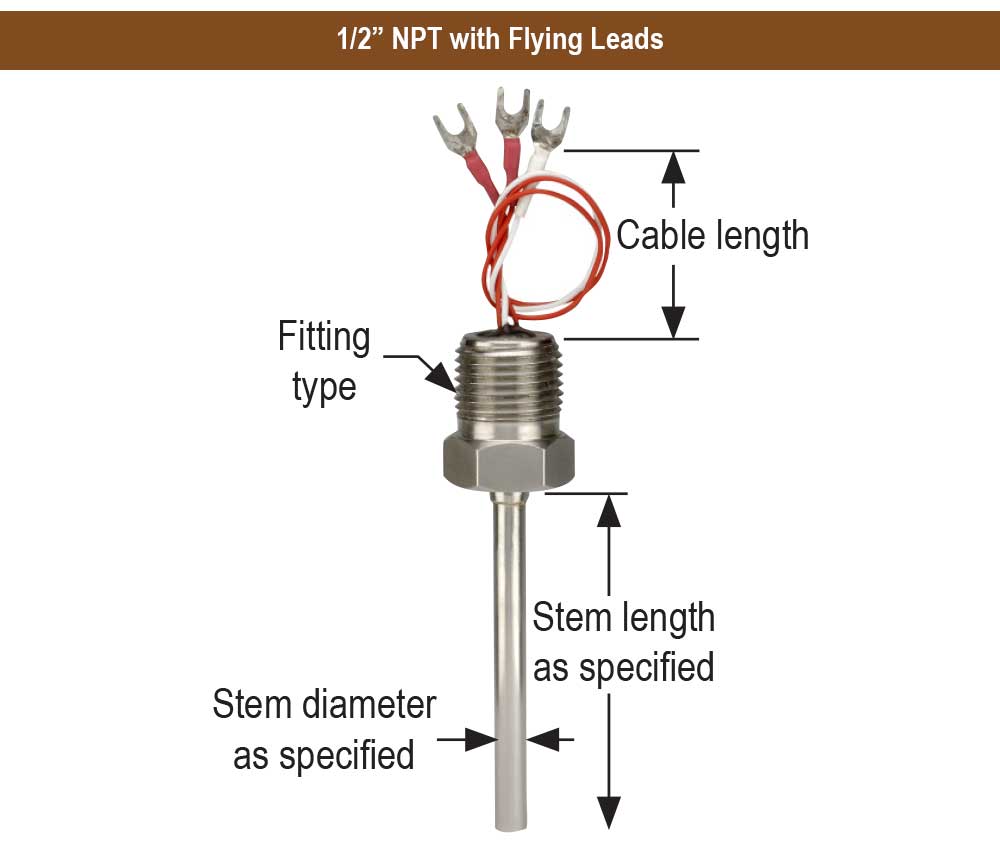

- Accuracy:Â 0.12% (0.3 C) at 0 C, Class BAdditional Information:Â A variety of fitting sizes and probe diameters are availableRTD PT100 standard, others available2, 3 or 4-wire circuit typesIsolation to 500 VdcCustom designs availableApplication:Â Chemical processingTextile productionAutomotivePlastics processingHVACCategory:Â 900 Series Industrial Resistance Temperature Device (RTD) ProbesCircuit Types:Â Single, 3-wireConnection Size:Â 1/2Connection Type:Â Male National Pipe Thread (MNPT)Electrical Connection:Â 1/2" National Pipe Thread (NPT) conduit with 6" flying leadsInsulation Resistance:Â Single element probes: 100 mega Ω/min. at 500 Vdc, leads to caseDual element probes: 100 mega Ω/min. at 100 Vdc, between element and leads to caseLead Wires:Â Stranded 22 AWG standard, Polyvinyl Chloride (PVC) or Polytetrafluoroethylene (PTFE) InsulationNote:Â Thermowells are recommended for pressure, corrosive fluids and high velocity applications.Operating Temperature [Max]:Â 400Operating Temperature [Min]:Â -50Pressure Ratings for Tube:Â 500Related Items:Â 50-040-304-SS, 4 in. Stem Length Thermowell|75-040-304-SS, 4 in. Stem Length Thermowell|75-040-316-SS, 4 in. Stem Length ThermowellResistance Temperature Detector (RTD) Element:Â PT100 Ω at 32 F (0 C), α=0.00385 International Electrotechnical Commission (IEC 751)SchemaID:Â 106347Seal Material:Â 316 Stainless SteelSelf-Heating:Â 50 mW / C typical in moving waterSensor Diameter:Â 1/4Sensor Length:Â 4Sensor Type:Â PT100 Ω at 0 CSeries:Â 900Standard Finish:Â 32 micro-inches maximumSyndication_SET:Â 1Thermowells:Â Thermowells allow a temperature instrument to be removed and replaced without shutting down and draining the process, and reduce the possibility of damage to the temperature instrument.Transition:Â Sheath to wire transition max. temperature 266 F (130 C)Type:Â ProbeUnit_SET:Â 1
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
