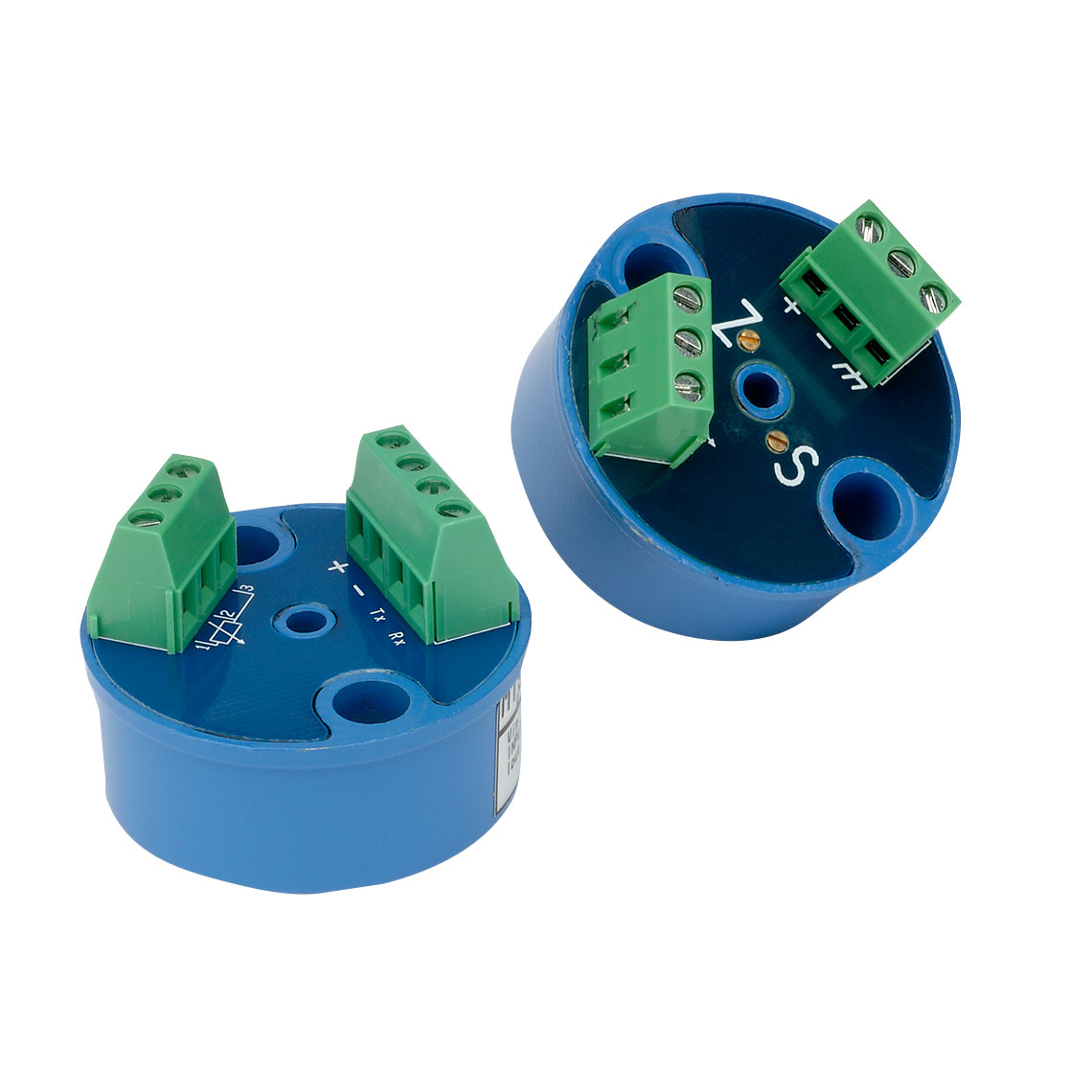

920-NRT-1-0/250-0 NOSHOK | 920 Series 250 ºF High Calibrated Resistance Temperature Device (RTD) Transmitter
Manufacturer: NOSHOK
Manufacturer Model #: 920-NRT-1-0/250-0
- 2-wire loop-powered 4 mA to 20 mA output
- Linearized output to temperature
- Input RTD PT100 with 3-wire compensation
- Analog design, potentiometer adjustable
- 920 Series Resistance Temperature Detector (RTD) Transmitter Options and Accessories: 920 PC Programming Kit (920-PKIT)Accuracy: 0.1% FS (includes effects of linearity, hysteresis and repeatability)Additional Information: Factory calibrated for fixed rangeMetal housingFits standard headsOptional model is fully field re-programmable with module and PC-based softwareAmbient Temperature Range: -40 to 176Category: 920 Series Resistance Temperature Device (RTD) TransmittersExcitation Current Resistance Temperature Detector (RTD): 0.8Height: 1.15High Accuracy (): 0.1Housing material: Die-Cast Zinc, Enamel PaintedLong Term Drift: <=0.5% FS/yearMaximum Loop Resistance: Rmax. = [ ( Vsupply 9 Vdc ) / 20 mANote: Calibrated Temperature Range - Please specify low/highOpen Circuit Detection Overscale Limit: 27.0Open Circuit Detection Underscale Limit: 2.2Operating Temperature [Max]: 250Operating Temperature [Min]: 0Options: NoneOutput: 4 mA to 20 mA, 2-wirePower Supply: 12-32 Vdc, Polarity ProtectedSchemaID: 105023Sensing Temperature [Max]: 80Sensing Temperature [Min]: -40Sensor Diameter: 1.82Sensor Lead Resistance Temperature Detector (RTD) [Max]: 500Series: 920Span Drift: 0.01% FS/ CSpan/Zero Adjustment: 20 turn potentiometer, 10% for zero and spanSupply Effect: 0.02%/V, 0.001%/V with computer programmable versionSyndication_SET: 1Type: Head-Mounted TransmitterUnit_SET: 1Warm Up: 30Zero Drift: 0.01% FS/ C
