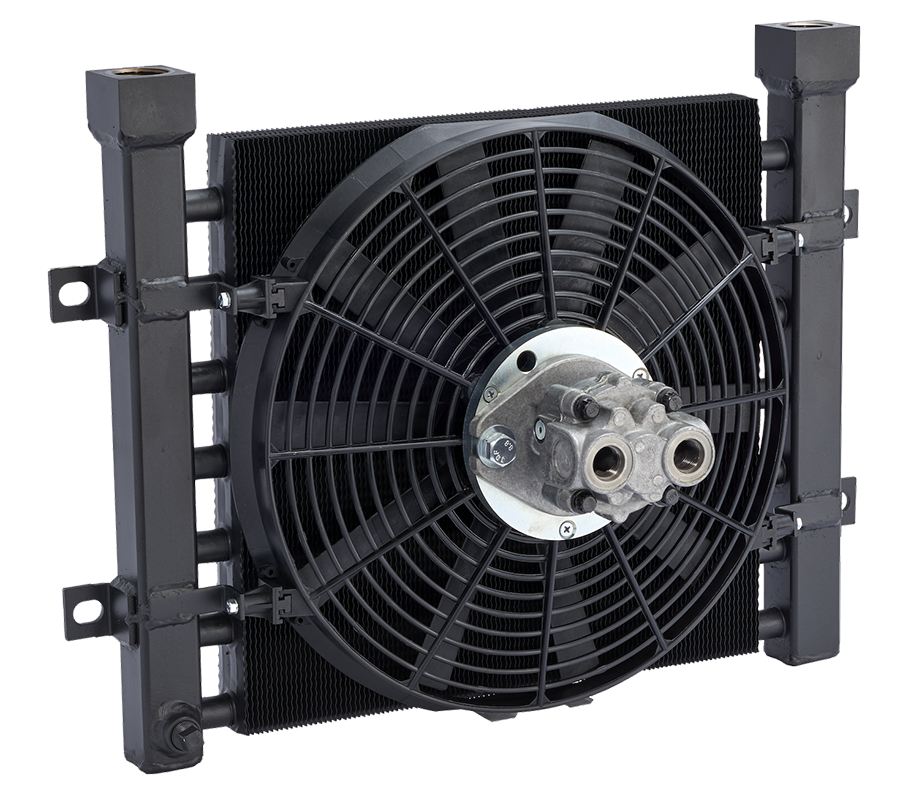

DF-12-1-4AÂ THERMAL TRANSFERÂ |Â MOBILE OIL COOLER
Manufacturer:Â THERMAL TRANSFER
Manufacturer Model #:Â DF-12-1-4A
SIMILAR TO DH WITH DC FAN,3/4" TUBE SIZE,LOW AMP DRAW 12 OR 24 V DC MOTORS,HEAVY DUTY CONSTRUCTION,LONG LIFE HYDRAULIC MOTORS,RUGGED APPLICATIONS,STEEL MANIFOLDS,HEAT REMOVAL TO 35,000 BTU/HR,OIL FLOWS TO 110 GPM,MOUNTING BRACKETS INCLUDED,SA, NPT OR 37° FLARE OIL CONNECTIONS,DAMAGE RESISTANT STEEL FINS
- Connection Type: NPTFan assembly material: High Impact PlasticFin material: SteelHydraulic motor displacement: .22in3/ Rev.Manifold material: SteelMaximum allowable hydraulic motor back pressure: 1000 PSIMaximum hydraulic motor pressure: 2000 PSIMaximum operating pressure (psi): 300Maximum operating temperature (°f): 350Model series: DFModel size: 12Test pressure (psi): 300Tube material: CopperTurbulator material: Steel
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
