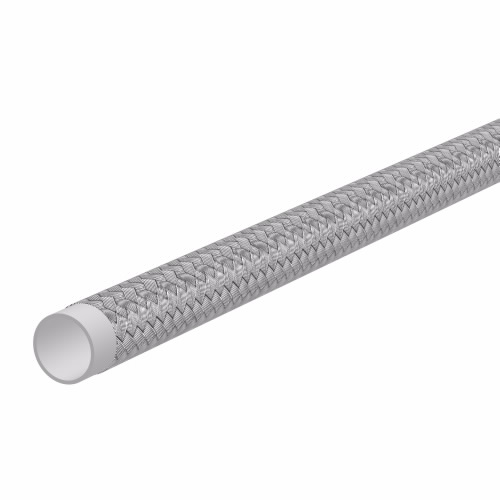

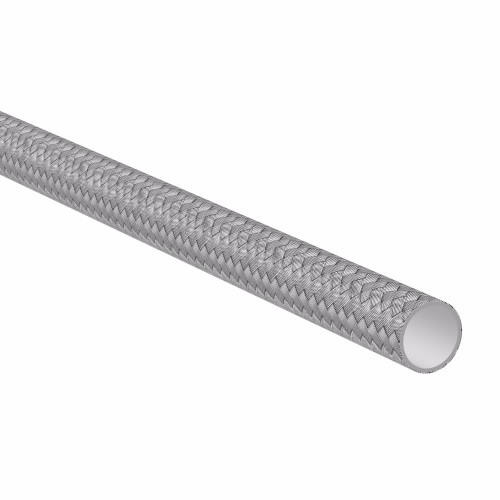

EN-10TW100BXÂ DANFOSSÂ |Â NON-CONDUCTIVE HOSE
Manufacturer:Â DANFOSS
Manufacturer Model #:Â EN-10TW100BX

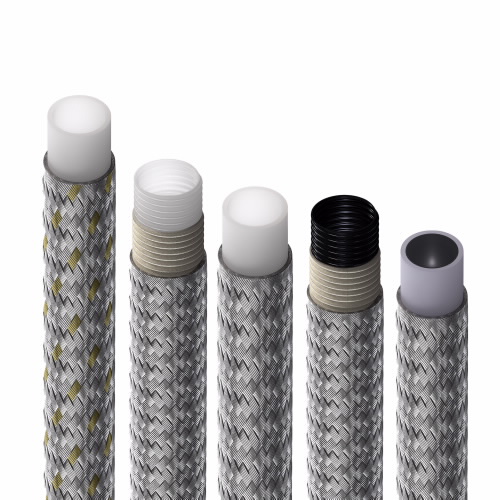

EATON WINNER EN-TW SERIES PTFE AND TEFLON HOSE AND TUBING
Withstands vibration and impulsing|Impervious to degradation|Wide temperature range
Withstands vibration and impulsing|Impervious to degradation|Wide temperature range
- Abrasion resistance:Â PremiumApplication:Â Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.Bend radius min:Â 6.5 inchBurst Pressure:Â 6000 psiCertifications:Â SAE J517|SAE 100R14A|SAE 100R14BColor:Â Stainless SteelConductivity:Â Non-ConductiveConstruction:Â Extruded with braided coverCover Material:Â Stainless SteelDash size:Â -10Eccn:Â EAR99Impulse cycle life:Â 150000 cycleInside Diameter:Â 0.5 inchOutside Diameter:Â 0.65 inchPackage form:Â BoxProduct height:Â 0.65Product height uom:Â inchProduct length:Â 100.00Product length uom:Â footProduct trade name:Â EN-TW SeriesProduct weight:Â 15.00Product weight uom:Â poundProduct width:Â 0.65Product width uom:Â inchQualified hose fittings:Â E series, Field Attachable, FC SeriesReinforcement Material:Â NoneSub brand:Â WinnerTube material:Â PTFEWorking Pressure:Â 1500 psiWorking temperature max:Â 457 degree FahrenheitWorking temperature min:Â -65 degree Fahrenheit
SunSource Distribution Division: SunSource
Price:Â Requires Quote
