Images are representative only. Please verify with our technical experts as actual product may differ.
H28020-150Â DANFOSSÂ |Â H280 WEATHERSHIELD
Manufacturer:Â DANFOSS
Manufacturer Model #:Â H28020-150

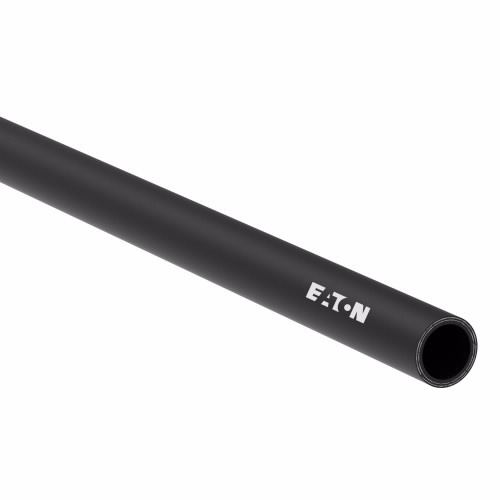

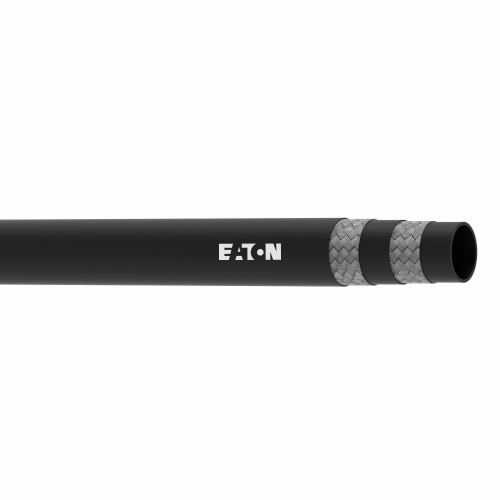

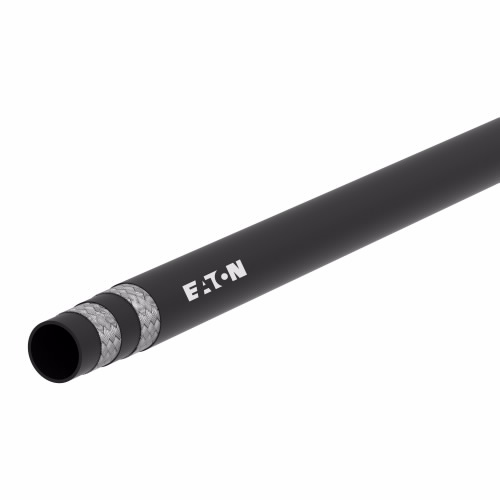

EATON WEATHERHEAD H280 SERIES RUBBER HYDRAULIC BRAIDED HOSE
Maximum durability under harsh operating conditions|Robust construction able to withstand highest pressures|System engineered to extend hose assembly life
Maximum durability under harsh operating conditions|Robust construction able to withstand highest pressures|System engineered to extend hose assembly life
- Abrasion resistance:Â PremiumApplication:Â Hydraulics, construction, agriculture.Bend radius min:Â 8.27 inchBurst Pressure:Â 10000 psiCertifications:Â SAE 100R16|SAE 100R2A|EN853 2SN|EN857 2SC|SAE 100R16 Type S|SAE 100R2AT|SAE 100R19|EN853 2ST|ISO 11237-1 Type 2SCColor:Â BlackCompliances:Â MSHA Approved|DNV|USCGConditional temperature range:Â Petroleum based fluids -40 - 260 F; water base fluids -40 - 158 FConductivity:Â ConductiveConstruction:Â 2-ply braidCover Material:Â Vinyl NitrileDash size:Â -20Eccn:Â EAR99Impulse cycle life:Â 400000 cycleInside Diameter:Â 1.25 inchLay line style:Â EmbossedLength configuration:Â 50, 100, 150Outside Diameter:Â 1.74 inchProduct height:Â 1.74Product height uom:Â inchProduct length:Â 150.00Product length uom:Â footProduct trade name:Â H280 SeriesProduct weight:Â 163.50Product weight uom:Â poundProduct width:Â 1.74Product width uom:Â inchQualified hose fittings:Â ZReinforcement Material:Â WireSub brand:Â WeatherheadTube material:Â Synthetic RubberTube wall thickness:Â 0.46 inchWorking Pressure:Â 2500 PSIWorking temperature max:Â 260 degree FahrenheitWorking temperature min:Â -50 degree Fahrenheit
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
