Images are representative only. Please verify with our technical experts as actual product may differ.

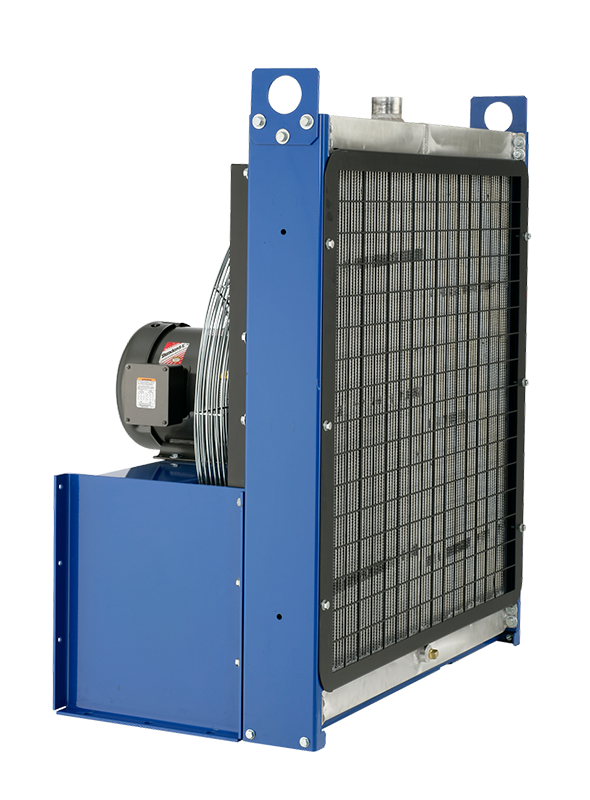

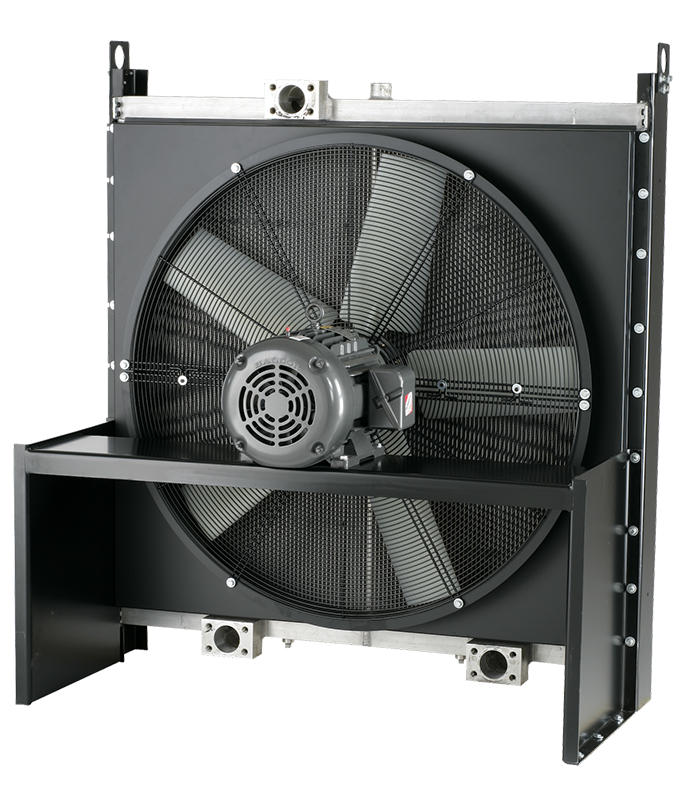

OCA-1000-1-9Â THERMAL TRANSFERÂ |Â INDUSTRIAL OIL COOLER
Manufacturer:Â THERMAL TRANSFER
Manufacturer Model #:Â OCA-1000-1-9
HIGH EFFICIENCY, LIGHT WEIGHT, LOW FOULING EXTRUDED CORE DESIGN,RUGGED CONSTRUCTION WITH A PATENTED T-BAR BRAZED ALUMINUM CORE CAPTURED IN STEEL FRAMING,BOTH MOBILE AND INDUSTRIAL APPLICATIONS,HIGH FLOW CAPACITY; WITH A FLOW RANGE FROM 20-500 GPM,ABILITY TO HANDLE HIGH VISCOSITY FLUIDS LIKE GEAR OIL COOLING,STANDARD SIZES AVAILABLE WITH SHORT LEAD TIME,ENCLOSED FAN COOLED STANDARD – TEFC,HYDRAULIC CIRCUITS,YOUNG RADIATOR – OCS INTERCHANGE (APPROXIMATE),AMERICAN INDUSTRIAL – AOCS INTERCHANGE (APPROXIMATE)
- Cabinet material: Steel with baked enamel finishConnections material: AluminumCore Material: Brazed aluminumFan blade material: Composite with cast aluminum hubMaximum operating pressure (psi): 250Maximum operating temperature (°f): 350Model series: OCAModel size: 1000Motor hp: 5Motor material: TEFC & Hydraulic motorMotor support material: SteelRpm: 1160Shroud material: Steel
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
