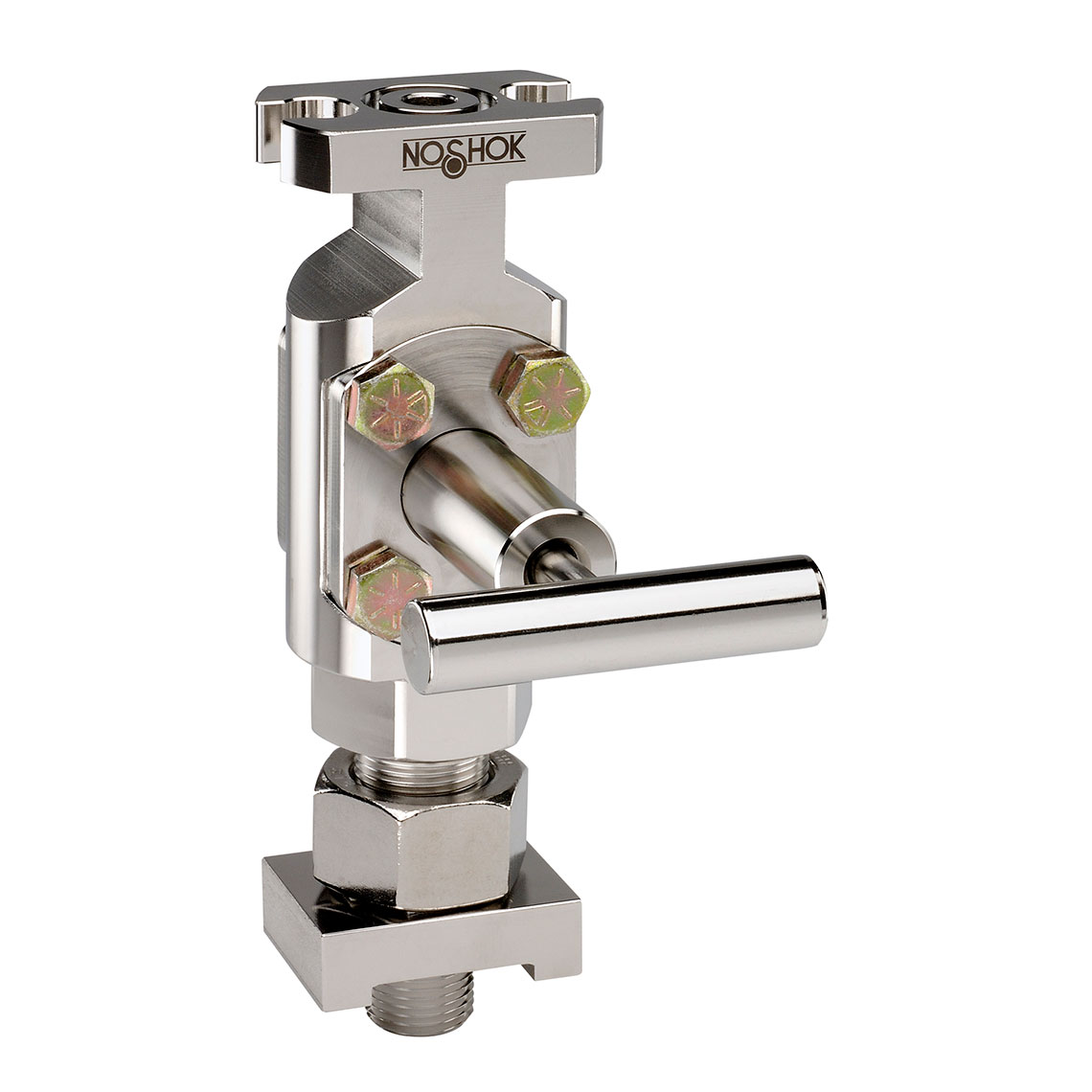

SVS2Â NOSHOKÂ |Â SV Series Stainless Steel Stabilized Connector with Integral Block Valve
Manufacturer:Â NOSHOK
Manufacturer Model #:Â SVS2
- Block valve can be installed on either side of stabilized body, allowing 1/2 turn installation
- Slotted bolt holes allow for 2-1/8" and 2-1/4" bolt spacings
- Designed to reinforce the entire installation by shifting radial-stress load away from the NPT connections
- 0.375" bore for unrestricted passage of process gas
- Bolt Material:Â Carbon SteelCategory:Â SV Series Stabilized Connectors with Integral Block ValveConnection Size:Â 1/2Connection Type:Â National Pipe Thread (NPT), FlangeConnector Type:Â Stabilized connector pair with integral valve, flange adapter (For Round installation, orifice flange)Cv Coefficient:Â 3.0Direct Connect Assembly For Oil & Gas Applications:Â The NOSHOK Direct Connect Assembly provides an installation that keeps the meter close to the orifice taps for accurate flow measurements.Installed Options and Accessories:Â Low temperature FKM o-ring (VT3)Material:Â Stainless SteelOrifice Diameter:Â 0.375Pressure Rating at 200 Degree Fahrenheit (F) Temperature:Â 6,000Related Items:Â VHS, 316 Stainless Steel Vertical to Horizontal Adapter KitSchemaID:Â 106383Series:Â SVStem Seal and Type:Â All 316 Stainless Steel stems with FKM o-ring and PTFE back-up ring below the threadsSyndication_SET:Â 1Type:Â Stabilized ConnectorUnit_SET:Â 1
