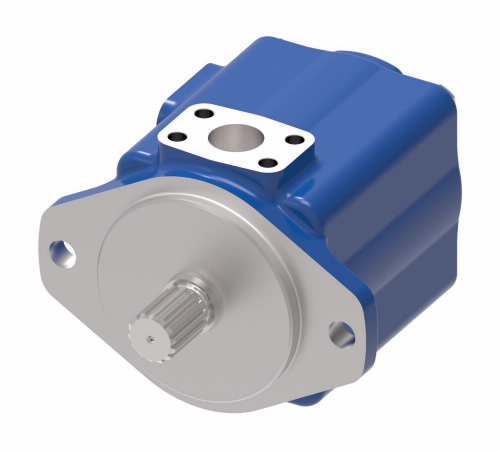

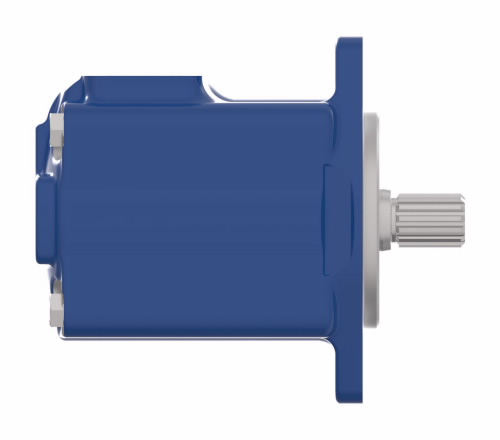

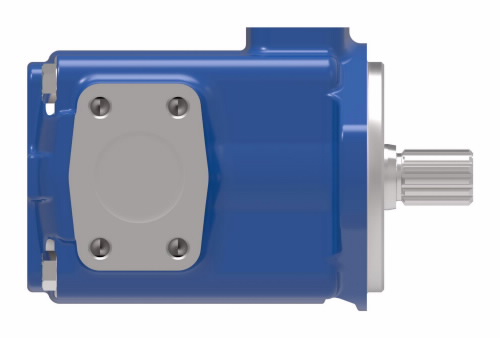

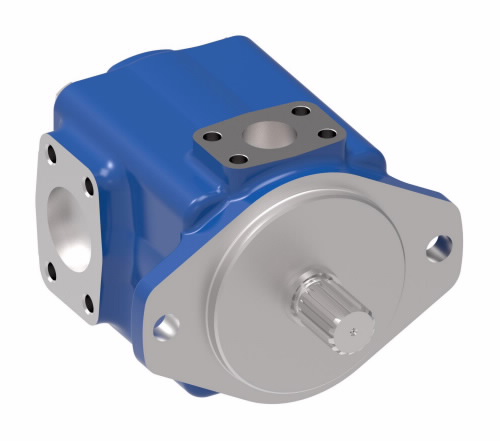

02-125528-GÂ DANFOSSÂ |Â THRU-DRIVE VANE PUMP
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 02-125528-G
EATON VICKERS V SERIES VANE PUMPS
Innovative intra-vane cartridge design|Reduces noise|Excellent volumetric efficiency
Innovative intra-vane cartridge design|Reduces noise|Excellent volumetric efficiency
- Adapter mount orientation cover end view: (SAE A) Adapter Flange Rotated 45 Deg. Clockwise From Mounting FlangeApplication: Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection MoldingConfiguration: SingleDesign code11: 22Displacement: 121 cubic centimetre per revolutionEccn: EAR99Flow rate12: 30.511872 litre per minuteFrame size: 35VTFront flange mounting style: SAE J744 127-2 (SAE C) 2 Bolt 127.00 [5.000] DIA. X 12.4 [.49] Pilot 17.6 [.69] DIA. Slots on 181.0 [7.13] DIA Bolt CircleFront outlet port position cover end view: 90° CCW FROM INLET PORTFront outlet port type: 4 Bolt Flange per SAE J518C WITH English ThreadsGeometric displacement: 97 cubic centimetre per revolutionIcc2: Hydraulic - Vane PumpsIdentification: NoneMinimum speed: 1800 revolutions per minuteModel Code: 35VTCS30A-2203BA22ROutput shaft coupling: NonePaint: NoneProduct height: 6.4Product height uom: inchProduct length: 14.67Product length uom: inchProduct material: Cast IronProduct trade name: V SeriesProduct weight: 63Product weight uom: poundProduct width: 8.38Product width uom: inchRear outlet port position cover end view: Opposite inlet portRing size: 30Seal material16: Buna-NSeries: 35VShaft rotation: RightShafts: Straight KeyedSpecial features17: NoneSub brand: VickersVane function type: PumpWorking pressure max: 172 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
