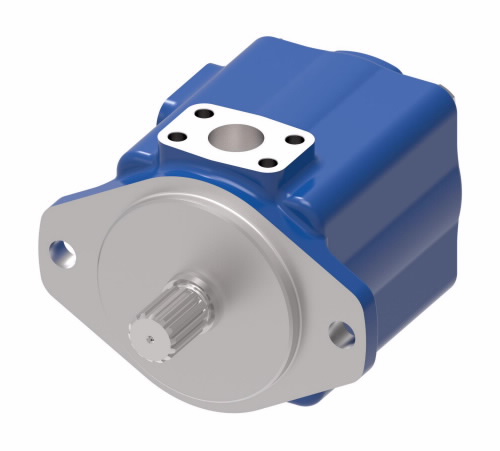

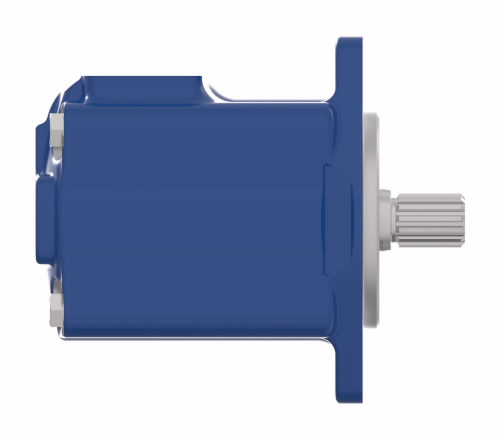

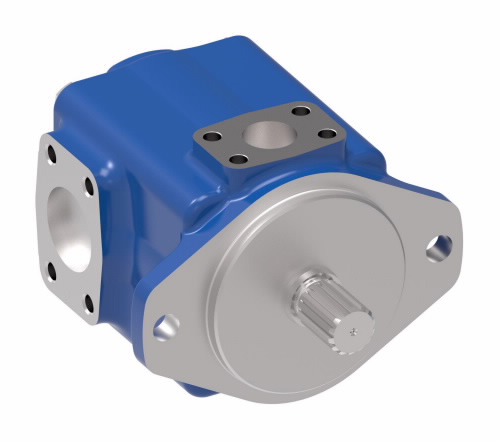

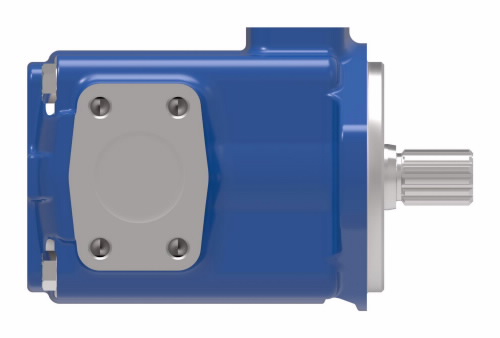

02-341209-1Â DANFOSSÂ |Â THRU-DRIVE VANE PUMP
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 02-341209-1
EATON VICKERS V SERIES VANE PUMPS
Innovative intra-vane cartridge design|Reduces noise|Excellent volumetric efficiency
Innovative intra-vane cartridge design|Reduces noise|Excellent volumetric efficiency
- Adapter mount orientation cover end view:Â (SAE A) Adapter Flange Rotated 45 Deg. Clockwise From Mounting FlangeApplication:Â Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection MoldingConfiguration:Â SingleDesign code11:Â 22Displacement:Â 67 cubic centimetre per revolutionEccn:Â EAR99Frame size:Â 25VTFront flange mounting style:Â SAE J744 101-2 (SAE B) 2 BoltFront outlet port position cover end view:Â OPPOSITE INLET PORTGeometric displacement:Â 33 cubic centimetre per revolutionIcc2:Â Hydraulic - Vane PumpsIdentification:Â NoneMinimum speed:Â 1800 revolutions per minuteModel Code:Â 25VTAS10AM-2297AA-22ROutput shaft coupling:Â A SplineProduct height:Â 5.69Product height uom:Â inchProduct length:Â 11.25Product length uom:Â inchProduct material:Â Cast IronProduct trade name:Â V SeriesProduct weight:Â 43Product weight uom:Â poundProduct width:Â 6.88Product width uom:Â inchRear outlet port position cover end view:Â Opposite inlet portRing size:Â 10Seal material16:Â Buna-NSeries:Â 25VShaft rotation:Â RightShafts:Â SplinedSpecial features17:Â NoneSub brand:Â VickersVane function type:Â PumpWorking pressure max:Â 172 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
