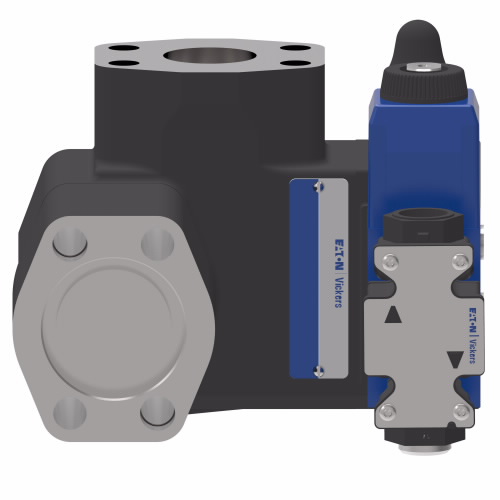

Images are representative only. Please verify with our technical experts as actual product may differ.

02-342642 DANFOSS | UPF2S-C-12-F-W-3-M-FTW-B

Manufacturer: DANFOSS

Manufacturer Model #: 02-342642

EATON VICKERS UPF2S-12 20 DESIGN PRESSURE CONTROL VALVES
Plug-and-play design|High-performance features|Moisture resistant

: Actuation option: Solenoid Operated
Adjustment: Yes
Adjustment range: 130-3600 psi
Adjustment type: Screw with locknut
Application: Applications requiring an adjustable pressure relief or regulating valve to limit the pressure in a hydraulic circuit to a desired maximum
Body material7: Cast Iron
Check valve: Yes
Coil voltage8: 110VAC50Hz/120VAC60Hz
Design code11: 20
Drain: Internal
Eccn: EAR99
Electrical connector: ISO 4400 (Din 43650) Connector
Electrical flag: Yes
Flow rate12: 600 litre per minute
Fluid cleanliness: 19/17/14
Fluid compatibility13: Petroleum Oils
Function: Unloading Valve
Gauge port thread type: SAE
Hi vent spring: No
Icc2: IV Pressure Valves
Interface: 1 1/2 In
Leakage: Standard
Light: No
Model Code: UPF2S-C-12-F-W-3-M-FTW-BL6-20
Performance: Standard
Pressure rating: 275 bar
Product height: 6.77
Product height uom: inch
Product length: 7.49
Product length uom: inch
Product trade name: UPF2S-12 20 Design
Product weight: 38.30
Product weight uom: pound
Product width: 8.88
Product width uom: inch
Remote control: No
Seal material16: Buna-N
Size: 12
Special features17: Excellent repeatability and stable performance from cartridge design mainstage parts|Reduced installed costs and space requirements|Easier installation and servicing of components|Pilot design minimizes response
Spool monitor switch: No
Spring arrangement: No Spring
Stage: Two Stage
Sub brand: Vickers
Tank port rating: 3000 psi
Valve mount type: Pump flange mounting
Working temperature max: 70 degree Celsius
Working temperature min: -20 degree Celsius
: Documentlink technical bulletin 1
Documentlink catalog 1
