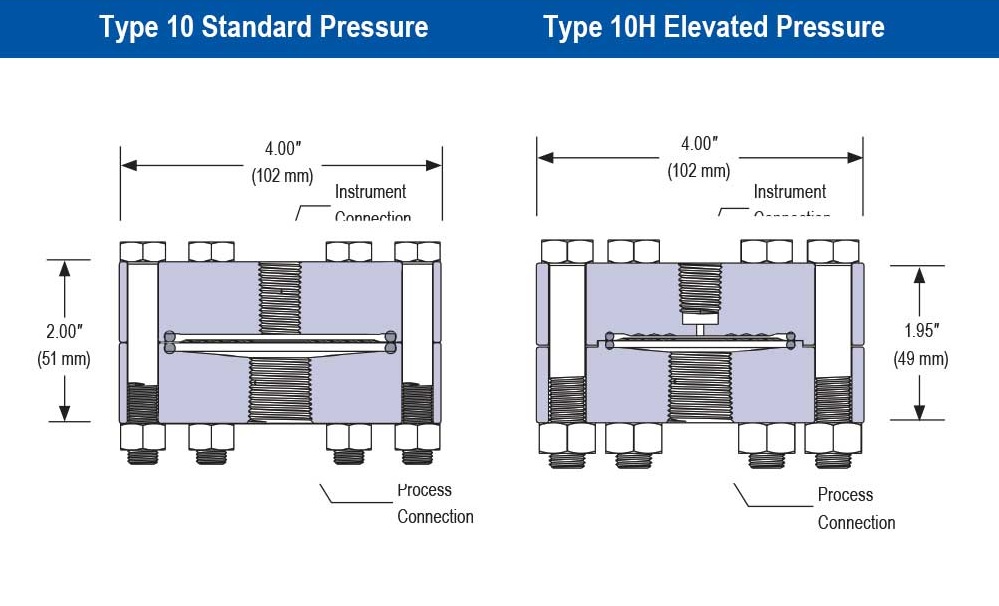

10H-04S-S-B-04S-1F NOSHOK | 1/8 in. Flushing Connection Size Type 10/10H Standard and Elevated Pressure, Bolted, Replaceable Diaphragm Seal
Manufacturer: NOSHOK
Manufacturer Model #: 10H-04S-S-B-04S-1F
- Designed to isolate the pressure measuring instrument from high temperatures, or corrosive or viscous process media
- Can be used for remote mounting of pressure instrument(s) with capillary, see options & accessories below
- Utilizes a replaceable diaphragm clamped between the flanged metal housings with an o-ring seal to create a leak-free union
- Process connection sizes from 1/4" NPT through 1-1/2" NPT
- Application: Water and wastewaterOil and gasPetrochemicalChemical processingIndustrial automationMarineAgricultureSteel fabricationMud pumpingPulp and paperPneumaticBolting Material: Zinc-Plated SteelCategory: Type 10/10H Standard and Elevated Pressure, Bolted, Replaceable Diaphragm SealsConnection Type: National Pipe Thread (NPT)Diaphragm Displacement: 1.4Diaphragm Material: 316 Stainless SteelDiaphragm Pressure Limits for Fluorocarbon (FKM) Material: 2,000Diaphragm Pressure Limits for Polytetrafluoroethylene (PTFE) Material: 2,000Diaphragm Seal Fill Options: Glycerin (GY) Not recommended for use in vacuum applications.)Silicone (SL)Halocarbon(HL)Neobee M20 (NB)Mineral Oil (MO)Propylene Glycol (PG)Diaphragm Size: 2-1/2Diaphragm Temperature Limits for Fluorocarbon (FKM) Material: -10 to 400Diaphragm Temperature Limits for Polytetrafluoroethylene (PTFE) Material: -40 to 400Distribution Manifolds: NOSHOK`s Distribution Manifolds connect multiple instruments to one diaphragm seal, eliminating multiple connections that lead to possible leak paths.End Size: 1/2End Type: National Pipe Thread (NPT)Flushing Connection Size: 1/8Flushing Connection Type: National Pipe Thread (NPT)Housing material: 316 Stainless SteelInstrument Connection Size: 1/2Instrument Gauge Size: 2-1/2 to 6Instrument Type: Gauges, Transducers, SwitchesLower Housing Connection Size: 1/4|1/2|3/4|1|1-1/4|1-1/2Lower Housing Connection Type: National Pipe Thread (NPT)Lower Housing Flushing Port: Optional 1/8" NPT, 1/4" NPT and dual portsMaterial: 316 Stainless SteelMaximum Pressure Limits for Polypropylene (PP) Bottom Housing Material: 200Maximum Pressure Limits for Polyvinyl Chloride (PVC) Bottom Housing Material: 80|125|200Maximum Pressure Limits for Polyvinylidene Fluoride (PVDF) Bottom Housing Material: 200Maximum Temperature Limits for Polypropylene (PP) Bottom Housing Material: 140Maximum Temperature Limits for Polyvinyl Chloride (PVC) Bottom Housing Material: 74|125|150Maximum Temperature Limits for Polyvinylidene Fluoride (PVDF) Bottom Housing Material: 180Note: NBR O-Rings standard with 316SS diaphragmNote for Diaphragm Pressure and Temperature Limits: Metallic diaphragms determined by pressure range of seal type, restricted to temperature range of fill fluid.Note for Maximum Pressure and Temperature Limits Bottom Housing Material: Metallic lower housings determined by pressure range of seal type, restricted to temperature range of fill fluid.Optional Bolting Material: Stainless SteelO-Ring Temperature Limits for Fluorocarbon (FKM) Material: -10 to 400O-Ring Temperature Limits for Nitrile Butadiene Rubber (NBR) Material: -40 to 250O-Ring Temperature Limits for Polytetrafluoroethylene (PTFE) Material: -400 to 400Pressure [Max] for Gauges 2-1/2 to 6 in. Size: 0 to 5,000Pressure [Max] for Switches: 0 to 5,000Pressure [Max] for Transducers: 0 to 5,000Pressure [Min] for Gauges 2-1/2 to 6 in. Size: 0 to 30Pressure [Min] for Switches: 0 to 30Pressure [Min] for Transducers: 0 to 30Process Connection Size: 1/2SchemaID: 106325Seal Material: Nitrile Rubber (NBR)Seal Type: Threaded with replaceable diaphragm. Flanged available on request.Style: Replaceable Diaphragm SealSyndication_SET: 1Type: Diaphragm SealUnit_SET: 1Upper Housing Type: Continuous Duty
