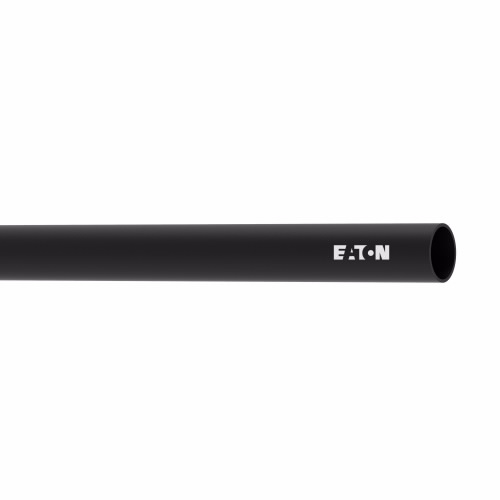

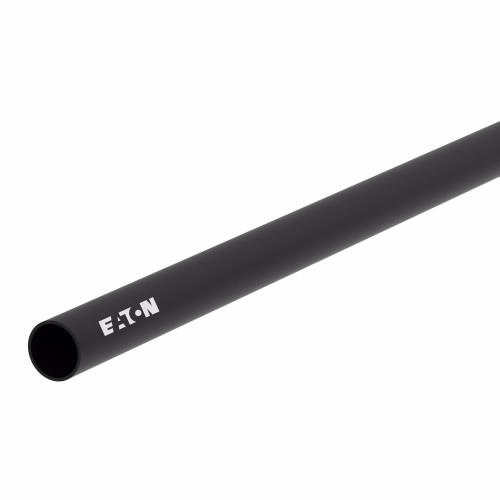

TYPE B PARALLEL CONSTRUCTED BUNDLE

1210-62400
  • Application: Resistant to most chemicals and hydrocarbons.
  • Bend radius min: 7 inch
  • Burst Pressure: 700 psi
  • Color: Black
  • Construction: Extruded
  • Cover Material: Vinyl Nitrile
  • Dash size: -6
  • Eccn: EAR99
  • Inside Diameter: 0.1 inch
  • Outside Diameter: 0.25 inch
  • Product height: 0.25
  • Product height uom: inch
  • Product length: 400.00
  • Product length uom: foot
  • Product trade name: 1210 Series
  • Product weight: 143.00
  • Product weight uom: pound
  • Product width: 0.25
  • Product width uom: inch
  • Reinforcement Material: Polyethylene
  • Sub brand: Synflex
  • Tube material: Polyethylene
  • Tube wall thickness: 0.0625 inch
  • Working Pressure: 250 PSI
  • Working temperature max: 260 degree Fahrenheit
  • Working temperature min: -40 degree Fahrenheit
EATON SYNFLEX 1210 SERIES THERMOPLASTIC SPECIALTY HOSE AND TUBING
UV resistance last longer than all competitors|Hundreds of styles to choose from|Rugged enough to stand up to the toughest applications
