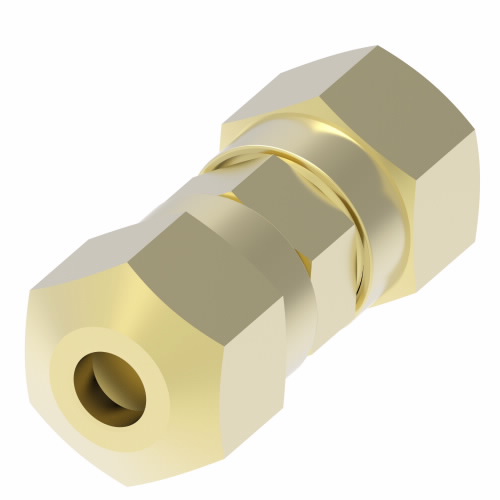

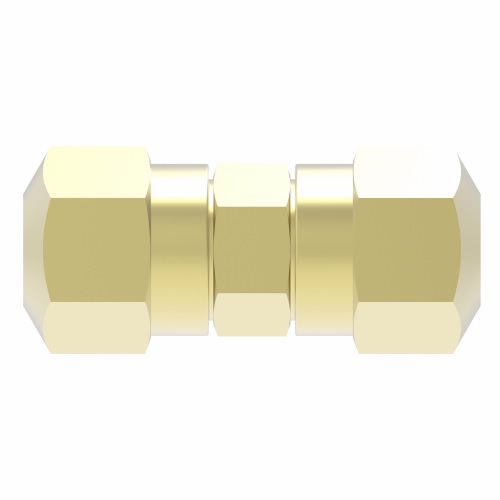

UNION
- Angle shape: Straight
- Application: Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing. Not for fuel, water or oil.
- Certifications: SAE 100101BA
- Currency: USD
- Eccn: EAR99
- End gender 1: Female
- End gender 2: Female
- End size 1: 11/16 IN
- End Size 2: 11/16 IN
- End type 1: Line/Hose/Tube
- End Type 2: Line/Hose/Tube
- Finish plating: Brass
- Hex size 1: 0.6875 inch
- Hex size 2: 0.8125 inch
- Item type: Line/Hose/Tube Female to Line/Hose/Tube Female
- Net pack quantity: 5
- Net pack quantity units: EA
- Part status: AC
- Product height: 0.81
- Product height uom: inch
- Product length: 1.87
- Product length uom: inch
- Product material: Brass
- Product trade name: Air Brake Connectors for Nylon Tubing
- Product weight: 0.19
- Product weight uom: pound
- Product width: 0.81
- Product width uom: inch
- Segment code: A
- Sub brand: None
- Thread sealant: No
- Thread size 1: 11/16-20
- Thread size 2: 11/16-20
- Tube od 1: 0.509 inch
- Tube od 2: 0.6875 inch
- Working temperature max: 200 degree Fahrenheit
- Working temperature min: -40 degree Fahrenheit
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
