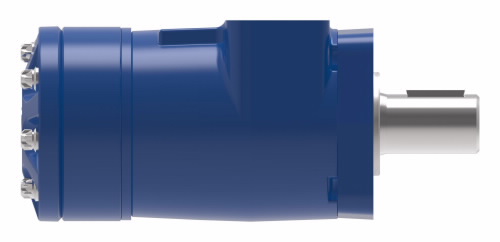

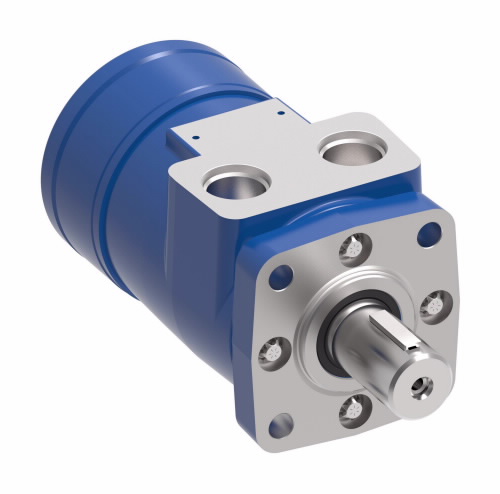

T SERIES MOTOR

158-1653-001
T SERIES MOTOR
  • Application: Agricultural augers, Harvesters, Seeders, Railroad maintenance equipment
  • Brake type: None
  • Case flow options: None
  • Design code11: 1
  • Displacement: 306 cubic centimetre per revolution
  • Eccn: EAR99
  • Flow rate12: 57 litre per minute
  • Geroler options: None
  • Icc2: Low-Speed Gerotor/Geroler
  • Identification: None
  • Intermittent pressure: 124 bar
  • Low pressure relief: None
  • Maximum speed: 183 revolutions per minute
  • Model Code: MT0187EA02AA0000000000A0A
  • Mounting Type: 4 Bolt Magneto - 82.50 [3.248] Dia. X 3.05 [.120] Pilot, 13.59 [.535] Dia. Mounting Holes On 106.35 [4.187] Dia. B.C.
  • Output shaft type: Spline
  • Paint: None
  • Port type: .875-14 UNF-2B SAE O-Ring Ports
  • Pressure flow option: None
  • Product height: 3.46
  • Product height uom: inch
  • Product length: 8.16
  • Product length uom: inch
  • Product material: Cast Iron
  • Product trade name: T Series
  • Product weight: 15.5
  • Product weight uom: pound
  • Product width: 3.38
  • Product width uom: inch
  • Recommended system working temperature: -34°C to 82°C
  • Seal options: Standard
  • Shaft options: None
  • Special assembly instructions: None
  • Special features hardware: None
  • Speed sensor: No
  • Sub brand: Char-Lynn
  • Torque: 441 newton metre
  • Valve options: None
  • Viscosity recommendation: 70 Saybold universal second
EATON CHAR-LYNN T SERIES SPOOL GEROLER
Compact yet powerful|Extended bearing life|Increased shaft seal
