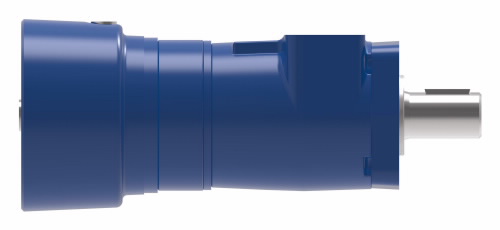

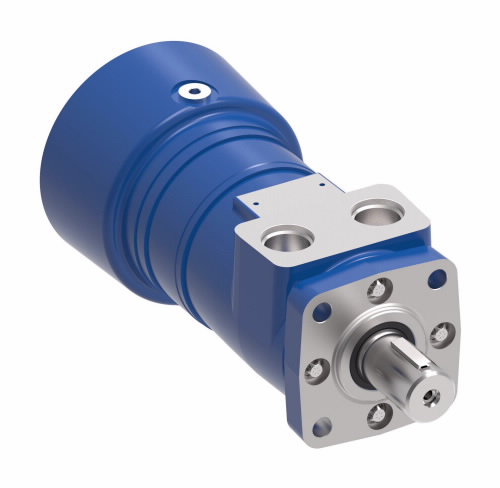

T SERIES MOTOR WITH BRAKE

185-2182-002
  • Application: Truck Mounted Equipment, Vehicle Recovery Winches, Fishing Winches
  • Brake type: None
  • Case flow options: None
  • Design code11: 2
  • Displacement: 80 cubic centimetre per revolution
  • Eccn: EAR99
  • Flow rate12: 57 litre per minute
  • Geroler options: Standard
  • Icc2: Low-Speed Gerotor/Geroler
  • Identification: None
  • Intermittent pressure: 190 bar
  • Low pressure relief: None
  • Maximum speed: 694 revolutions per minute
  • Model Code: MTB049AA01AA00A0000000AB0AA00B
  • Mounting Type: 2 Bolt Std - 82.50 (3.248) Dia. X 3.05 (.120) Pilot, 13.59 [.535] Dia. Mounting Holes On 106.35 [4.187] Dia. B.C.
  • Output shaft type: Straight
  • Paint: Primer Low Gloss Black
  • Port type: .875-14 UNF-2B SAE O-Ring Ports
  • Pressure flow option: None
  • Product height: 5.27
  • Product height uom: inch
  • Product length: 9.53
  • Product length uom: inch
  • Product material: Cast Iron
  • Product trade name: T Series with Brake
  • Product weight: 12.20
  • Product weight uom: pound
  • Product width: 4.20
  • Product width uom: inch
  • Recommended system working temperature: -34°C to 82°C
  • Seal options: None
  • Shaft options: None
  • Special assembly instructions: None
  • Special features hardware: Low Speed Valving
  • Speed sensor: No
  • Sub brand: Char-Lynn
  • Torque: 174 newton metre
  • Valve options: None
  • Viscosity recommendation: 70 Saybold universal second
EATON CHAR-LYNN T SERIES WITH BRAKE SPOOL GEROLER
Compact yet powerful|Extended bearing life|Increased shaft seal
