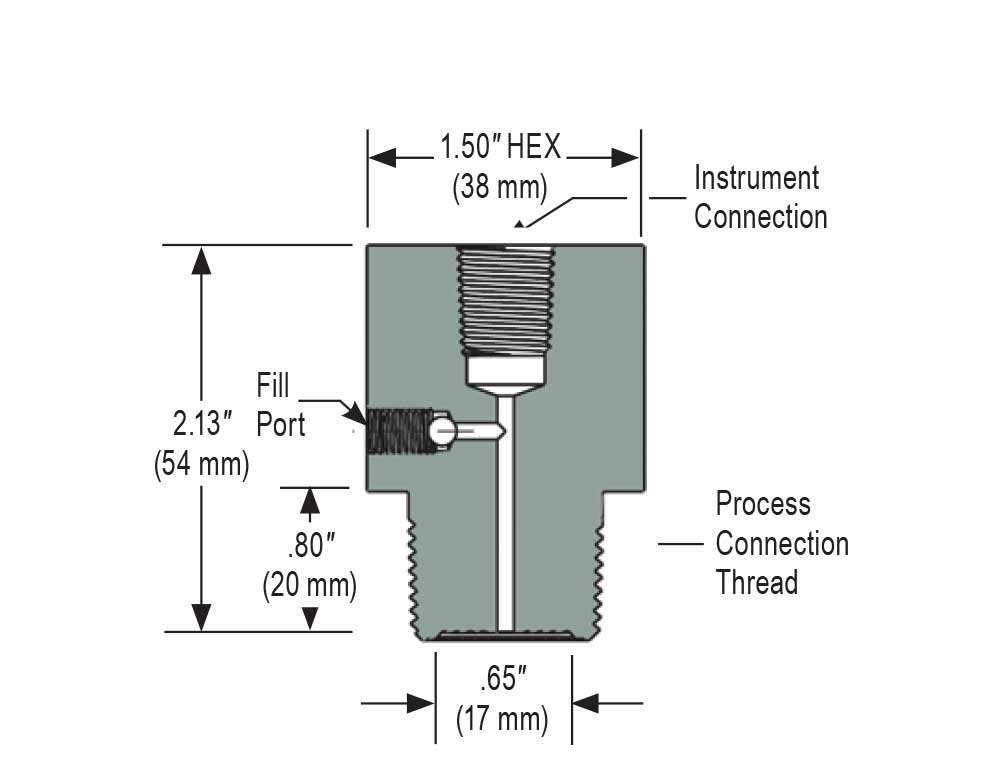

20-04S-S-04 NOSHOK | 1/2 in. Process Connection Size Type 20 Front Flush, Non-Replaceable Diaphragm Seal
Manufacturer: NOSHOK
Manufacturer Model #: 20-04S-S-04
- Designed for applications requiring an NPT male threaded process connection and with a flush diaphragm
- Flush diaphragm construction prevents clogging and process material build-up
- Constructed with a 316 Stainless Steel housing and diaphragm for strength and durability
- Available instrument connection sizes are 1/4†and 1/2" with a process connection size of 1/2" NPT male to 2" NPT male
- Application: Water and wastewaterOil and gasPetrochemicalChemical processingIndustrial automationMarineAgricultureSteel fabricationMud pumpingPharmaceuticalPulp and paperPneumaticCategory: Type 20 Front Flush, Non-Replaceable Diaphragm SealsConnection Type: National Pipe Thread (NPT)Diaphragm Material: 316 Stainless SteelDiaphragm Pressure Limits for Fluorocarbon (FKM) Material: 2,000Diaphragm Pressure Limits for Polytetrafluoroethylene (PTFE) Material: 2,000Diaphragm Seal Fill Options: Glycerin (GY) Not recommended for use in vacuum applications.)Silicone (SL)Halocarbon(HL)Neobee M20 (NB)Mineral Oil (MO)Propylene Glycol (PG)Diaphragm Temperature Limits for Fluorocarbon (FKM) Material: -10 to 400Diaphragm Temperature Limits for Polytetrafluoroethylene (PTFE) Material: -40 to 400Distribution Manifolds: NOSHOK`s Distribution Manifolds connect multiple instruments to one diaphragm seal, eliminating multiple connections that lead to possible leak paths.End Size: 1/2End Type: National Pipe Thread (NPT)Housing material: 316 Stainless SteelInstrument Connection Size: 1/2Instrument Type: Gauges, Transducers, SwitchesMaximum Pressure Limits for Polypropylene (PP) Bottom Housing Material: 200Maximum Pressure Limits for Polyvinyl Chloride (PVC) Bottom Housing Material: 80|125|200Maximum Pressure Limits for Polyvinylidene Fluoride (PVDF) Bottom Housing Material: 200Maximum Temperature Limits for Polypropylene (PP) Bottom Housing Material: 140Maximum Temperature Limits for Polyvinyl Chloride (PVC) Bottom Housing Material: 74|125|150Maximum Temperature Limits for Polyvinylidene Fluoride (PVDF) Bottom Housing Material: 180Note for Diaphragm Pressure and Temperature Limits: Metallic diaphragms determined by pressure range of seal type, restricted to temperature range of fill fluid.Note for Maximum Pressure and Temperature Limits Bottom Housing Material: Metallic lower housings determined by pressure range of seal type, restricted to temperature range of fill fluid.O-Ring Temperature Limits for Fluorocarbon (FKM) Material: -10 to 400O-Ring Temperature Limits for Nitrile Butadiene Rubber (NBR) Material: -40 to 250O-Ring Temperature Limits for Polytetrafluoroethylene (PTFE) Material: -400 to 400Pressure [Max] for Gauges 2-1/2 in. Size: 0 to 9,000Pressure [Max] for Switches: 0 to 9,000Pressure [Max] for Transducers: 0 to 9,000Pressure [Min] for Gauges 2-1/2 in. Size: 0 to 1,500Pressure [Min] for Gauges 2-1/2 to 4-1/2 in. Size: 1/2Pressure [Min] for Switches: 0 to 30Pressure [Min] for Transducers: 0 to 30Process Connection Size: 1/2SchemaID: 106326Seal Type: Front flush, welded diaphragmStyle: Non-Replaceable Diaphragm SealSyndication: 1Type: Diaphragm SealUnit: 1Upper Housing Type: Continuous Duty
SunSource Distribution Division: SunSource
Price:
$331.61
