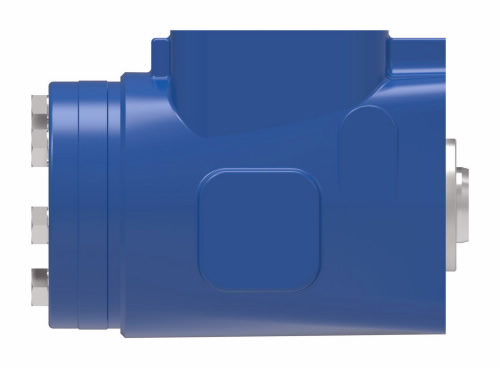

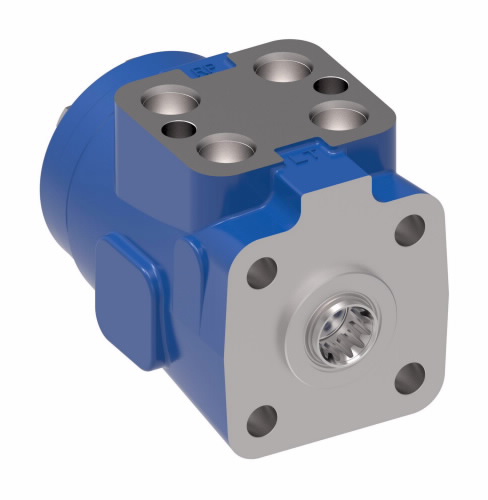

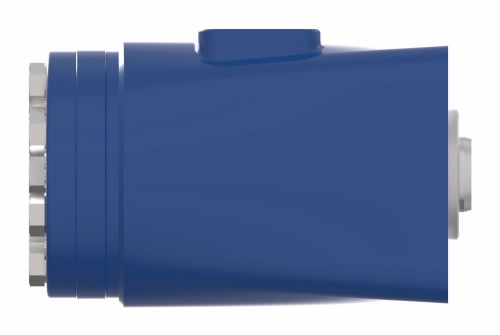

200-1072-002 DANFOSS | STEERING CONTROL UNITS
Manufacturer: DANFOSS
Manufacturer Model #: 200-1072-002
EATON SERIES 10 STEERING CONTROL UNIT
Flow Rate 11-76 L/min (3-20 gal/min)|Maximum pressure 275 bar (4,000 psi)|Mid-range vehicle applications
Flow Rate 11-76 L/min (3-20 gal/min)|Maximum pressure 275 bar (4,000 psi)|Mid-range vehicle applications
- Additional ports: M12 X 1.5-6H Load Sensing Metric O-Ring Port On SideApplication: Rigid Frame Vehicles (Front End Loaders, Large Graders, Mining Trucks, Transporters, AG Tractors)|Articulated Vehicles(Loaders, Scrapers, Skidders, AG Tractors, Dumpers, Sprayers, Forestry EquipmentDesign code11: 1Eccn: EAR99Flow amplification: NoneFluid compatibility13: See Eaton Technical Bulletin 3-401Housing material: Ductile IronIcc2: Steering Control Unit (SCU)Identification: Eaton Product Number On NameplateInlet pressure rating: 276 barIntegral valves: YesMain displacement: 159 cubic centimetre per revolutionMaximum back pressure: 21 barMaximum flow rate: 76 litre per minuteMechanical interface: Internal Involute Spline, 12 Tooth 16/32 Dp 30 Degree PaModel Code: ADRC61A51PED00101826AABBA3AAA10BMounting threads: 2X M12 X 1.75-6H X 16.5 [.65] Min Depth Port Face 4X M10X1.5-6H Mounting FaceNeutral circuit: Load Sensing-Dynamic SignalPaint: BlackPorts: 4X .750-16 UNF-2B SAE O-Ring PortProduct height: 3.60Product height uom: inchProduct length: 5.50Product length uom: inchProduct trade name: Series 10Product weight: 14.50Product weight uom: poundProduct width: 3.60Product width uom: inchRecommended filtration level: ISO 18/13Return pressure rating: 21 barSpecial features17: NoneSub brand: NoneUnit type21: NoneValve options: Cylinder Relief Valve, Anti-Cavitation Valve, Inlet Check Valve, Load Sensing Relief Valve, Manual Steering Check ValveWorking pressure max: 275 barWorking temperature max: 93 degree Celsius
SunSource Distribution Division: SunSource
⚠️
