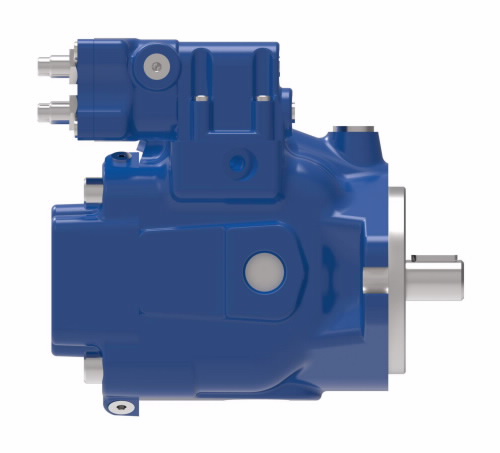

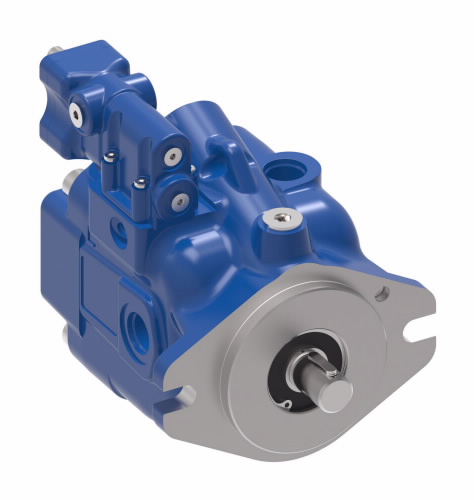

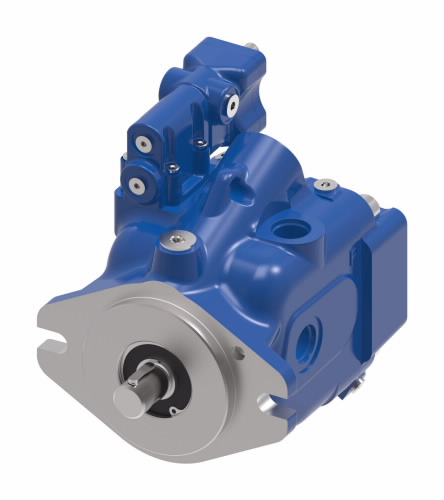

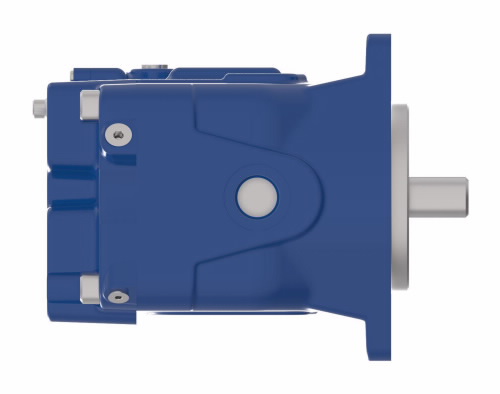

222AK00221BÂ DANFOSSÂ |Â 220SERIESMOBILEPISTON
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 222AK00221B
EATON X20 OPEN CIRCUIT PISTON PUMPS 220 SERIES
Fastest response and recovery times in the market|Increase efficiency with advanced control options|High pressure and flow capacity
Fastest response and recovery times in the market|Increase efficiency with advanced control options|High pressure and flow capacity
- Application:Â Construction, Agriculture, Truck and Bus, Material Handling, Other MobileAuxiliary mounting:Â NoneBearing life at rated pressure:Â 5850 hrCode title:Â 220 Series Mobile Piston PumpContinuous allowable case pressure:Â 19 psiControl special features:Â NoneController type:Â Pressure Flow Compensator with .4375-20 SAE O-Ring Load Sense Port Left SideDesign code11:Â SecondDisplacement:Â 28 cubic centimetre per revolutionEccn:Â EAR99Fluid cleanliness:Â 21/18/13Front mounting:Â 2 Bolt BHousing material:Â Cast IronIcc2:Â Mobile - OC Piston PumpsIdentification:Â Mark Eaton Product Number and Full Model Code On LabelInlet pressure:Â 64 psiInput shaft:Â 13 Tooth 16/32 Spline, Shaft Extension 41.1 [1.62]Input speed at 0 8 bar absolute:Â 2700 revolutions per minuteInput speed at 1 0 bar absolute:Â 3000 revolutions per minuteInput speed maximum:Â 3600 revolutions per minuteInput speed minimum:Â 500 revolutions per minuteMaximum case pressure:Â 45 psiMaximum displacement option:Â Standard DisplacementMaximum flow compensator setting:Â 15.2 barMaximum input power:Â 39.2 kilowattMaximum input torque:Â 1106 inch pound (pound inch)Maximum pressure compensator setting:Â 155.1 barMaximum recommended operating viscosity:Â 40 centistokesMinimum flow compensator setting:Â 12.4 barMinimum pressure compensator setting:Â 148.2 barMinimum recommended operating viscosity:Â 16 centistokesModel Code:Â AEC028L09AAB1AA1414000001001000B01BNominal pressure rating:Â 4060 psiPaint:Â BlackPeak pressure rating:Â 5000 psiProduct height:Â 9.02Product height uom:Â inchProduct length:Â 9.68Product length uom:Â inchProduct trade name:Â X20Product weight:Â 35.9Product weight uom:Â poundProduct width:Â 6.85Product width uom:Â inchPump special features:Â NoneShaft rotation:Â RightShaft seals:Â VitonSub brand:Â NoneTorque control setting:Â 0 inch pound (pound inch)
SunSource Distribution Division: SunSource
Price:Â Requires Quote
