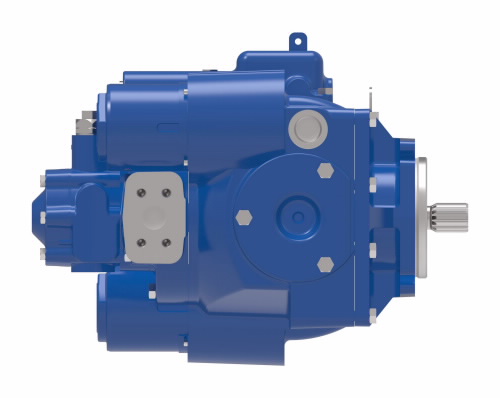

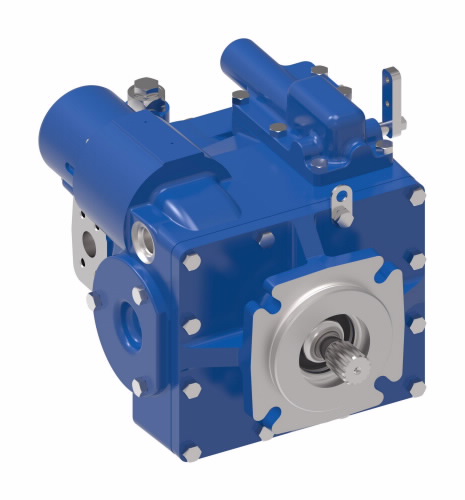

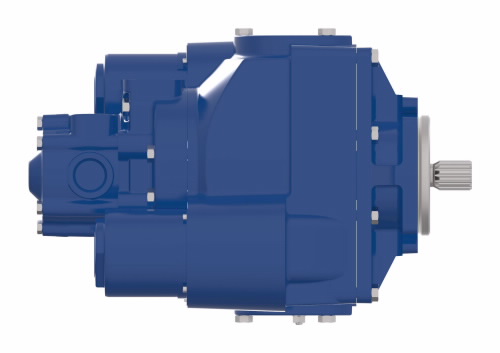

6423-081Â DANFOSSÂ |Â HYDRAULIC PUMP
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 6423-081
EATON SERIES 1 HEAVY DUTY CLOSED CIRCUIT PUMP SERVO CONTROL
Proven reliability in demanding applications|Multiple control options|Pro-FX ready
Proven reliability in demanding applications|Multiple control options|Pro-FX ready
- Application:Â Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applicationsAuxiliary mounting:Â NoneCharge pressure relief valve setting:Â 15 barCharge pump:Â Charge Pump With External Discharge Port For 7/8-14 UNF SAE O-Ring Fitting; With Steel Hex PlugCharge pump displacement:Â 21 cubic centimetre per revolutionCharge pump special features:Â NoneConfiguration:Â SingleControl supply orifice diameter:Â 0.044 inchDesign code11:Â BDesign type:Â Series 1Displacement:Â 105.4 cubic centimetre per revolutionDrive shaft seal configuration:Â SingleEccn:Â EAR99Flow at rated speed and psi:Â 375 litre per minuteIcc2:Â Mobile - CC Piston PumpsIdentification:Â StandardInput shaft:Â 13 Tooth 8/16 Pitch Spline With [2.93] Extension And For 76 SealMain port orientation:Â RadialMain port s:Â [1.00] - Code 62 Per SAE J518Maximum input torque:Â 441 newton metreMinimum working pressure:Â 420 barModel Code:Â ACA642330L1B00MDC002M0D030D013A0BMounting flange location:Â Standard J744Paint:Â Finish BlackPressure override setting port a:Â 414 barProduct height:Â 12.26Product height uom:Â inchProduct length:Â 18.95Product length uom:Â inchProduct trade name:Â Series 1Product weight:Â 85.30Product weight uom:Â poundProduct width:Â 11.96Product width uom:Â inchShaft rotation:Â LeftSpecial features17:Â NoneSpecial pump assembly features:Â Model 76 Shaft Seal And Grade 8 Bolts In Mounting Flange To Pump Housing (Models 54-64)Sub brand:Â NoneType:Â Variable DisplacementValve plate:Â PropelWorking pressure max:Â 480 bar
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
