Images are representative only. Please verify with our technical experts as actual product may differ.
Manufacturer:Â DANFOSS
Manufacturer Model #:Â H19012

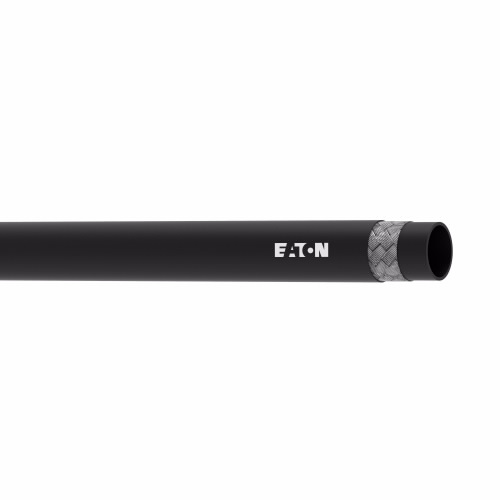

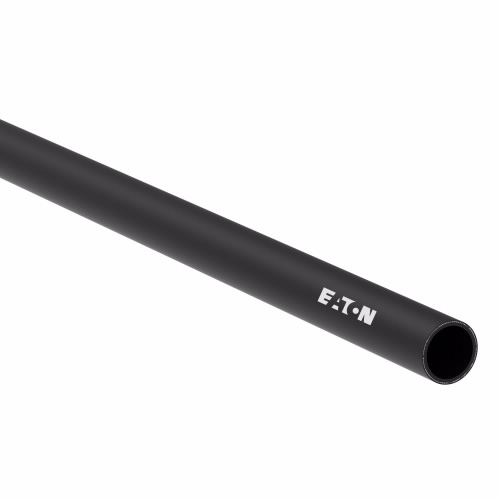

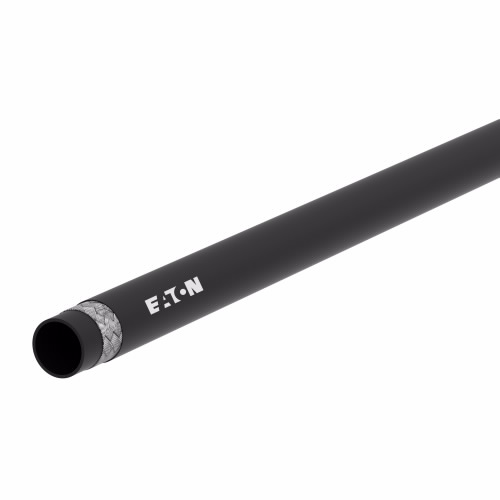

EATON WEATHERHEAD H190 SERIES RUBBER HYDRAULIC BRAIDED HOSE
Maximum durability under harsh operating conditions|Robust construction able to withstand highest pressures|System engineered to extend hose assembly life
Maximum durability under harsh operating conditions|Robust construction able to withstand highest pressures|System engineered to extend hose assembly life
- Abrasion resistance:Â StandardApplication:Â Hydraulics, construction.Bend radius min:Â 9.5 inchBurst Pressure:Â 8000 psiCertifications:Â SAE 100R1AT|EN853 1ST|SAE 100R17|EN853 1SN|EN857 1SCColor:Â BlackCompliances:Â MSHA ApprovedConditional temperature range:Â Water 32 - 158 F; Petroleum based hydraulic fluids -40 - 260 F; water based hydraulic fluids -40 - 158 FConstruction:Â 1 Ply BraidCover Material:Â PVC/nitrile blendDash size:Â -12Eccn:Â EAR99Impulse cycle life:Â 400000 cycleInside Diameter:Â 0.75 inchLay line style:Â EmbossedOutside Diameter:Â 1.09 inchPackage form:Â BoxProduct height:Â 1.09Product height uom:Â inchProduct length:Â 0.00Product length uom:Â footProduct trade name:Â H190 SeriesProduct weight:Â 0.41Product weight uom:Â poundProduct width:Â 1.09Product width uom:Â inchQualified hose fittings:Â Z, TTCReinforcement Material:Â Steel WireSub brand:Â WeatherheadTube material:Â Synthetic RubberTube wall thickness:Â 0.17 inchWorking Pressure:Â 2000 psiWorking temperature max:Â 260 degree FahrenheitWorking temperature min:Â -40 degree Fahrenheit
Price:Â
Requires Quote
If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
NEED SUPPORT ON A QUOTE?
Contact us and we will have a member of our team contact you to build a quote for your application needs.
